Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | ISUZU,HOWO,JAC,JMC,FOTON,DONGFENG,SHACMAN | Loading Capacity: | 4 Tons Or 5 Tons |
|---|---|---|---|
| Temperature Range: | -18 Degree To -5 Degree | Insulation Material: | Polyurethane Foam |
| Compartment Material: | Fiber Glass | Insulation Layer: | 8cm Polyurethane Foam |
| Truck Refrigeration Unit: | Thermoking, Carrier Or Chinese Alternative | Delivery Time: | 25-30 Working Days |
| Logo: | As Per Customer Request | User Manual: | Yes |
| High Light: | JAPAN Famous Brand Refrigeration Truck,4X2 Refrigerator Cargo Van Truck |
||

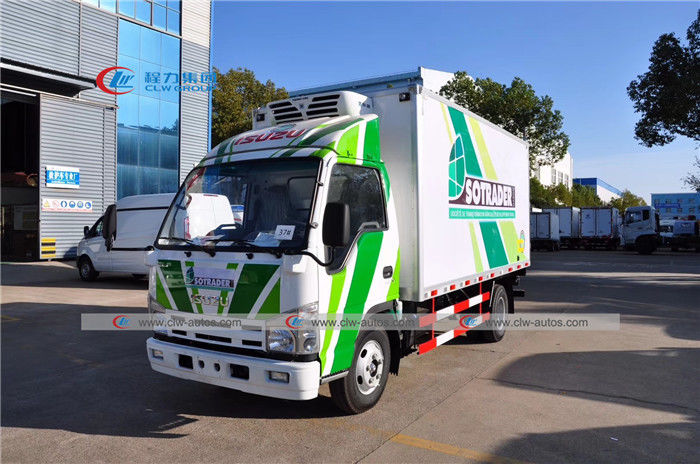

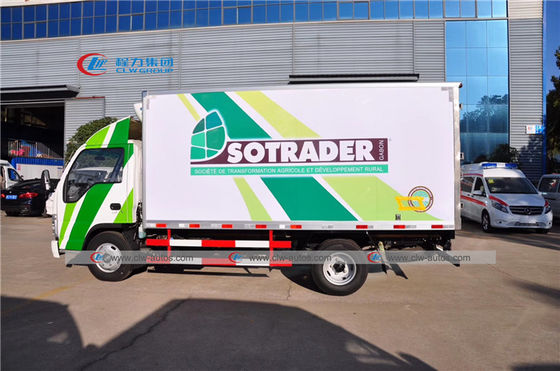

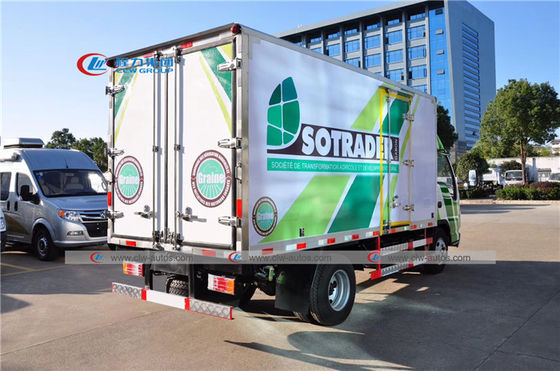

JAPAN Famous Brand 4-5 Tons Refrigeration Truck 4X2 Refrigerator Freezer Cargo Van Truck
Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Product Specification
| General Technical Parameters | ||||
| Overall Dimension | 6000×2500×3300(mm) | Gross Vehicle Weight | 11495(Kg) | |
| Curb Weight | 3900(Kg) | Loading Weight | 6000(Kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | ISUZU | ||
| Cabin | Single, Left Hand Driving, with A/C | |||
| Engine | Model | 4 Cylinders | ||
| Power | 88KW/120HP | |||
| Emission standard | EURO V | |||
| Displacement | 2.999L | |||
| Fuel type | Diesel | |||
| Gearbox | 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 2.5T/4.8T | |||
| Wheel base | 3800(mm) | |||
| Overhang( Front/Rear) | 1130/1505(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Air brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 105(km/h) | |||
| Superstructure | ||||
| Van | Box size | 4100×2300×2100(mm) | ||
| Material | Fiberglass | |||
| Insulating Layer | 8cm Polyurethane Foam | |||
| Truck refrigeration unit | Brand | THERMOKING | ||
| Model | KV300 | |||
| Applicable temperature (ºC) | -18~0 | |||
| Remarks | Part Optional: Ventilation slot | |||
| Hook | ||||
| External power supply | ||||
| Side door | ||||
Freezer Details :
Opitonal Parts
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
