|Box External Thickness(mm):||1.2mm 1.5mm 1.8mm 2.0mm||Internal Thickness(mm):||1.2mm 1.5mm 1.8mm 2.0mm|
|Interbed Material:||Polyurethane Foam||Interbed Thickness(mm):||80mm 100mm 120mm|
|Interior And External Of Box:||Fiber Glass，color Steel||Drive Model:||4x2/6x4/8x4; As Per Super Structure Size|
|Wheelbase(mm):||3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm||Color:||White; Blue; Green; Yellow; Customized|
frozen meat delivery trucks,
freezer delivery truck

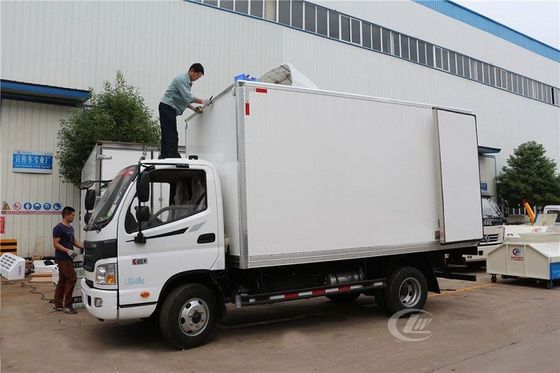

Foton frozen delivery truck 3ton 4.1Meters fresh vegetable meat delivery truck
1. Purpose of frozen delivery truck : It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of frozen delivery truck: Refrigerating unit and control system.
3. Features of frozen delivery truck: International chassis brand and International refrigerating unit brand for optional.
Spec of frozen delivery truck
|Condition||New condition/Left hand drive/4x2|
|Curb weight(kg)||2910 kg|
|Front/Rear axle loading(kg)||6000/10000 kg|
|Front/Rear overhang(mm)||1430/2960 mm|
|Wheel track (front/rear) (mm)||1880/1800mm|
|Max. driving speed(km/h)||90 km/h|
|Clutch||Reinforced diaphragm clutch|
|Brakes||Hydraulic oil brake|
|Steering Gear||Power steering, hydraulic steering with power assistance|
|Tire||Quantity||6pcs with one spare tire|
|Transmission||Manual type, 5 Forwards and 1 reverse|
|Cab||Single row seat, Tiltable. It can accommodate three people. With air conditioner. With Air deflector|
|Emission standard||Euro 3|
1. Box Size: 4085×1970×1820 mm
2. Box Material, glass epoxy in the surface; Foam in the middle , side ,top ,front ,rear thickness 80mm/100mm; Inside bottom: Aluminum pattern plate
1. Working temperature setting range: to -18℃
2. Refrigerating unit brand and model: USA brand Thermo King,CARRIER
|Remarks||Color is optional|
Main Structure of frozen delivery truck
1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel
2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THMOKING,south korean brand such as DONG IN THERMO CO．,LTD
3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source
4) Stainless steel knock
5) Hooks for hanging meat
6) stainless steel or glass steel bottom plate with ventilating slot
7) Temperature controller in cabin and easy for operation
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
Q1: What loading weight frozen delivery truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopts International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
