Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, Isuzu, Sinotruk, Etc. | Hopper Size: | 12cbm, Ground Type |
|---|---|---|---|
| Loading Capacity: | 10Ton | Hopper Thickness: | 5mm, Carbon Steel Q235B |
| Protective Material: | Q235A Carbon Steel | Hopper Quantity: | As Per Customer's Request |
| Dump Type: | Hydraulic Cylinder Lifting And Self-loading | Controlling Way: | Three-way Hydraulic Control Valve |
| Color: | As Per Customer's Request | Warranty: | 1 Year |
| High Light: | Sinotruk Howo waste disposal truck,12cbm waste disposal truck,CLW5107BP |
||
Product Description

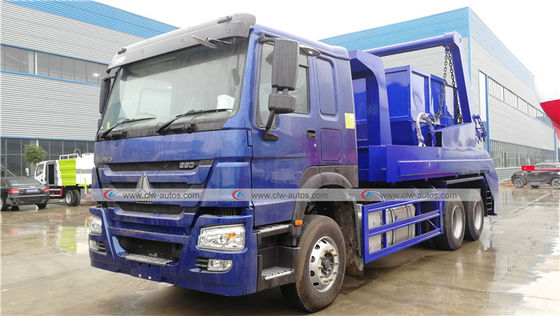

1. Swing arm type garbage truck is applicable to the national general garbage hopper, with self unloading function and hydraulic operation. The garbage hopper can be hoisted up and down by itself, and the swing arm once working cycle time is 60s. The truck is characterized by the separation of the cargo hopper and the vehicle body, which can realize the combined operation of one truck and multiple cargo hoppers, circular transportation, and fully improve the transportation capacity of the vehicle, especially suitable for short-distance transportation, such as the cleaning and transportation of urban garbage by the environmental sanitation department.
2. Garbage Bin with different size options of waste recycling truckk: 4cbm to 10cbm;
3. Hydraulic Control Loading&Unloading System;
4. Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;
6. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;
7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;
8. Best Choice for Garbage collection and transporation Inside City.
Product Description
| Cabin | Driving type 6*4 RHD | |
| HW70 Standard cab,no bunk,safety belts,with A/C | ||
| Carriage Dimensions | 9010*2500*3450 mm | |
| Wheel Base | 4350+1350 mm | |
| GVW | 25000kg | |
| Front axle loading capacity | 1*9000 | |
| Rear axles loading capacity | 2*16000 | |
| Engine | Brand | Sinotruk |
| Model | WD615.87 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Displacement | 9.726L | |
| Horse Power | 290HP | |
| Emission standard | Euro 2 | |
| Max Speed | 75 km/h | |
| Tire | 12.00R20 | |
| Transmission | HW15710 or HW19710 transmission ,10 forward and 2 reverse | |
| Steering | ZF8098 | |
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |
| Lifting System | Hyva | |
| Brake System | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2x12 V,165 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Superstructure | Hopper Capacity | 12cbm |
| Hopper Material | Carbon steel | |
Reference Photos
Main Structure and Details
Main Parts
Bulk Order of 120 Units to Madagascar
Different Types of Garbage Truck
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for garbage truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
