Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck

I'm Online Chat Now

Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck

small.img.alt small.img.alt small.img.alt small.img.alt

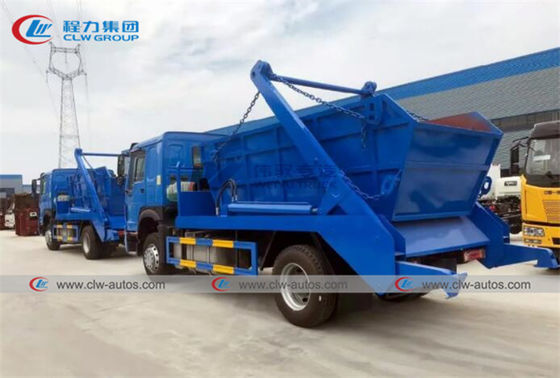

Large Image :  Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC ISO
Model Number: CLW5160WYBLJC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Driving Model: LHD,Left Hand Drive,RHD,Right Hand Drive Swing Arm Garbage Truck Chassis Brand: HOWO, Dongfeng, Foton, Shacman,ISUZU Swing Arm Garbage Truck
Fuel Type: Diesel Engine Swing Arm Garbage Truck Material: Carbon Steel Swing Arm Garbage Truck
Volume: 8000~10000L,8m3 10m3 Swing Arm Garbage Truck After-sales Service Provided: Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service
Truck Type: Roll Arm Garbage Truck,swing Arm Garbage Truck,Skip Loader Container Garbage Truck Name: Swing Arm Garbage Truck
Loading Capacity: 8tons, 10tons, 9tons, 8t, 9t, 10t Swing Arm Garbage Truck Wheel Base: 4600
Horsepower: 371hp,336hp,290hp Swing Arm Garbage Truck
High Light:

10m3 Swing Arm Garbage Truck


4x2 Swing Arm Garbage Truck


Sinotruk Howo Garbage Container Truck

Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck Hydraulic Lift Garbage Container Truck

Swing Arm Garbage Truck(also called roll arm garbage truck,container garbage truck,garbage container truck,roll arm garbage truck) adopts a fully hydraulic control operating system, and the garbage compartment and the chassis can be completely separated. It has the advantages of reasonable structure, simple operation, stability, high efficiency, good sealing performance, and convenient dumping. It can realize one cart and multiple garbage Carriage combined operation and circular transportation can fully improve the transportation capacity of vehicles. One vehicle can carry multiple boxes, which is efficient, energy-saving and cost-saving.


Swing Arm Garbage Truck is equipped with a unified supporting hydraulic lifting assembly, and the national unified swing-arm garbage hopper is loaded and transported through the left and right arms. It can be multiple buckets in one vehicle and has a self-unloading function to achieve safety, stability and reliable performance. The garbage bucket body is divided into different types of garbage buckets configured according to the swing arm type and the pit-ground dual-purpose configuration. A sealing cover can be installed to prevent leakage and flying pollution to meet the requirements of different environments.


Swing Arm Garbage Truck use:
The swing arm garbage truck is suitable for a variety of garbage hoppers, with self-unloading function, hydraulic operation, the garbage hopper can be hoisted up and down by itself, and the swing arm has a working cycle time: 60S. The characteristic of this vehicle is that the cargo hopper is separated from the car body, which can realize the combined operation of one car and multiple cargo hoppers, and circular transportation, which fully improves the transportation capacity of the vehicle. It is especially suitable for short-distance transportation, such as the cleaning of urban garbage by the sanitation department. , Transportation, etc.

Classification of garbage truck function:
Pit type swing arm garbage truck, ground type swing arm garbage truck
Classification of garbage truck body:
Boat bucket, square bucket, sealed bucket


Feature of swing arm garbage truck

1. Chassis :Sinotruk howo,dongfeng,isuzu,faw,jac,shacman,camc and so on.

2. Garbage Bin with different size options of Skip Loader Container Garbage Truck : 4cbm to 12cbm;: Engine 266hp,290hp,336hp,371hp, Fast Gearbox 6Forward & 2Reverse;

3. Hydraulic Control Loading&Unloading System;
4. Different shapes of hook lift garbage truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;

6. Lifting oil cylinder of hook lift garbage truck :double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;

7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;

8. Best Choice for Garbage collection and transporation Inside City.



Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 0Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 1Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 2

Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 3

Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 4

Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 5

Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 6

Hydraulic Lift Sinotruk Howo 4x2 10m3 Swing Arm Garbage Truck 7


Specification of Howo 4x2 10m3 Swing Arm Garbage Truck


Chassis parameters
Chassis model ZZ1167M4611W Chassis brand SINOTRUK
Overall dimensions 7990X2496X2958mm Wheel base 4600mm
Front/rear wheel track 2022, 1830 mm Front/rear suspension 1500/1890mm
Approach/departure angle 16/23° Maximum speed 90km/h
Chassis Manufacturer Sinotruk
Cab Configuration HW76 single row and a half cab
Color White, other color is optional
Engine Model WD615.92
Emission Euro 2
Type 6 cylinders, in-line, turbo inter-cooling
Rated power 266hp, rated power speed 1100rpm
Displacement 9726ml
Max.torque 1100N.m
Bore x stroke 123x130mm
Manufacturer Sinotruk
Tire Size 12.00R20 or 12R22.5 tubeless tire
Number 6+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 300L iron oil tank
Front axle HF 7 tons
Rear axle ST 16 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions gearbox HW13710, 9 speed forward 2 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration WD615.87 290hp
Swing arm garbage truck structure parameters
Garbage container dimensions 4000X2200X1300mm Garbage container volume 8 m3 or 10m3
Garbage container material Carbon steel Side wall 3mm
Bottom plate 4mm Color and Logo Optional
Standard configuration Chassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins.
Selective configuration Garbage container cover.




Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Designed drawings


After Sale Service
--- Overseas installation and commissioning
--- Overseas and spare parts support
--- Technical and spare parts support



According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,design function parts.



Communicate with engineer,making drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.



Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


Q2:: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.


Q3 What about warranty of garbage truck?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q4: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
