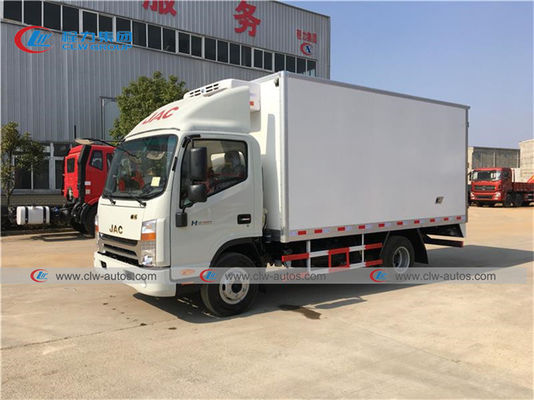

JAC 4X2 5T Refrigerator Box Truck For Transporting Frozen Fish

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  JAC 4X2 5T Refrigerator Box Truck For Transporting Frozen Fish

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC,SGS,BV
Model Number: CLW5456GSSD3

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked,Waxed,bulk ship,Ro-Ro
Delivery Time: 25-30days after received deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Truck Chassis: JAC,JMC,SHACMAN,Dongfeng,ISUZU,HOWO,FOTON. Temperature Range: -18 Degree To 0 Degree
Van Material: Fiber Glass Insulating Layer: 8cm Polyurethane Foam
Usage: Vegetable, Meat, Ice Cream, Fish Frozentransport Truck Refrigeration Unit: US Brand Thermo King, Carrier Or Chinese Brand
Delivery Time: 25-30 Days Logo: As Per Customer Request
Warranty: 1 Year
High Light:

4X2 Refrigerator Box Truck


JAC Refrigerator Box Truck


JAC Frozen Meat Delivery Trucks

JAC 4x2 refrigerated truck refrigerator light truck 5 ton refrigerated truck for sale


Product Description


1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.



Product Specification

General Technical Parameters
Overall Dimension 5995x2090x2950(mm) Gross Vehicle Weight 4495(Kg)
Curb Weight 2850(Kg) Loading Weight 2000(Kg)
Chassis Specification
Chassis parameters Chassis Brand JAC
Cabin Single, Left Hand Driving, with A/C
Engine Model Chaochai
Power 120HP
Emission standard EURO II
Displacement 2.999L
Fuel type Diesel
Gearbox 5 Forward & 1 Reverse Gear
Front and Rear Axle load 2T/4T
Wheel base 3360(mm)
Overhang( Front/Rear) 1130/1505(mm)
Angle(Approach/departure) 20/16(°)
Brake System Air brake
Steering Gear Power Assistant
Tire 7.00R16, 6 Pieces with 1 Spare Tire
Maximum speed 100(km/h)
Van Box size 4015x1900x2200(mm)
Material Fiberglass
Insulating Layer 8cm Polyurethane Foam
  Brand Chinese Famous Brand
Truck refrigeration unit Model THERMOKING
  Applicable temperature (ºC) -18~0
Remarks Part Optional: Ventilation slot
External power supply
Side door


JAC 4X2 5T Refrigerator Box Truck For Transporting Frozen Fish 0


Details for refrigerated van truck


JAC 4X2 5T Refrigerator Box Truck For Transporting Frozen Fish 1


Optional parts



JAC 4X2 5T Refrigerator Box Truck For Transporting Frozen Fish 2



Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.


Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.


Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.


Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Product Show
