5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

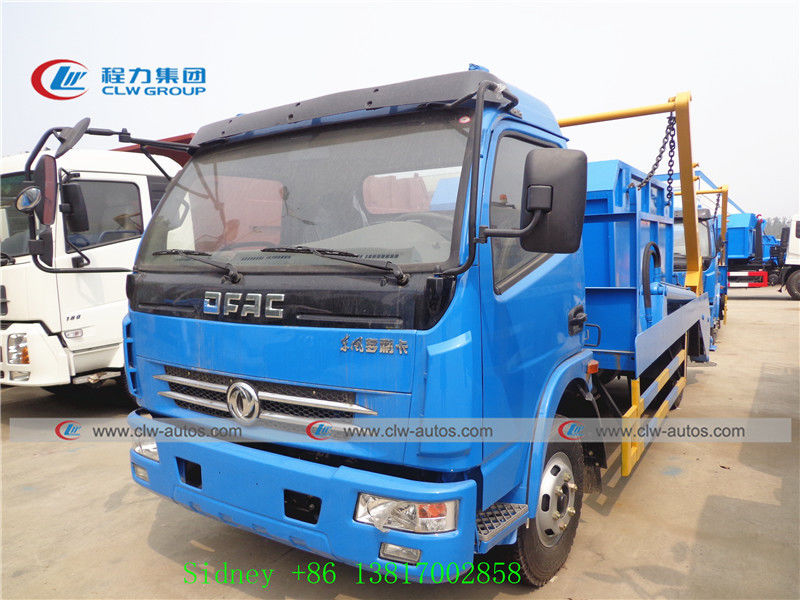

5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain

5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain
5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain

Large Image :  5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5049KD3

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD12000-15000
Packaging Details: Naked Pack with Wax,bulk ship,ro-ro
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T
Supply Ability: 300 Units
Detailed Product Description
Size: 6700*2150*2950mm Chassis Brand: Dongfeng, Foton, HOWO, Shacman, Isuzu
Drive Wheel: 4x2 Material: Carbon Steel Q235B
Hopper Size: 5CBM Engine: Diesel Engine
Thickness: Side 3mm, Button 4mm Tire: 8.25R16
Hopper: Quantity For Choice Warranty: 12 Months
Logo: Customized LOGO
High Light:

Dongfeng Swing Arm Garbage Truck

,

5cbm Swing Arm Garbage Truck

,

5cbm Self Loading Garbage Truck

5cbm Self Loading Dongfeng Swing Arm Garbage Trucks with Hanging Chain and Hydraulic Lifting

Product Description

Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.



According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.



Brand Dongfeng Dolika
Engine Power &
Transmission
Engine Model YC4D140-20
Engine Brand Yuchai Diesel Engine Co., Ltd
Fuel Type Diesel
Displacement / Power 4212ml / 103kw, 140HP
Engine Type Turbocharged inner cooled, water cooling, four cylinder inline.direct injection
Rated Speed 2500rpm
Max Torque 420N.m
Max torque(N.m/rpm) 1600-1900rpm
Emission Stand Europe III
Fuel tank capacity (L) 200
Number of speeds, 6 Forward, 1 Reverse
Chassis Chassis Type EQ1080SJ8BDC
Dimension (LxWxH) 6740x 2100 x 2390mm
Chassis Weight(kg) 3195
Wheelbase (mm) 3800
Drive Type 4X2
No. of Axles 2
Cab seats 3 + 1 berth
Max Speed(km/h) 90
Tire 7.50R16 Radial tyre
Tire No.'s 6+1 spare
Track width F/R (mm) 1740/1610
Chassis load (kg) 3310 / 4695
Front/Rear suspension 1130/1810
Appr/Dep Angle (°) 20/14
Service brake type Compressed air brake
Parking brake type Spring energy, compressed air operating on rear wheels
Aic Condition Yes
Weight & Dimension
(With van box)
Gross Vehicle Weight(kg) 9950
Curb Weight(kg) 4750
Rated Weight / load(kg) 5200
Wheelbase(mm) 3,800
Front/Rear suspension 1130/1770
Appr/Dep Angle (°) 20/13
Ground Clearance (mm) >=220
Overall Dimension(mm) 6700×2150×2950
(length ×width×height )
Upper Structure
Configuration
Skip loader dimension(mm) 3170x1650x1250, the shape can be adjusted as per special request
(length ×width×height at side)
Skip loader Capacity 4 ton, 5 cbm
Material of skip loader Q235B high quality carbon stell
Thickness of skip loader Bottom 4mm, side 3mm
Oil cylinder Hydraulic oil cylinder, 2 sets
Loading medium House hold waste (not including construction waste)
Production lead time 30-45 days
Remark 1. With power assisted steering, A/C, spare tyre, hydrlic telescopic jack, wheel brace etc tools.
2. If with Euro IV emission standard engine of YC4S150-48 150HP, the price need to upcharge usd2700/set.





Reference photos

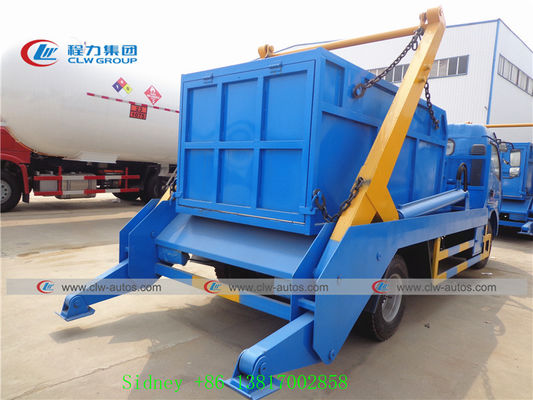

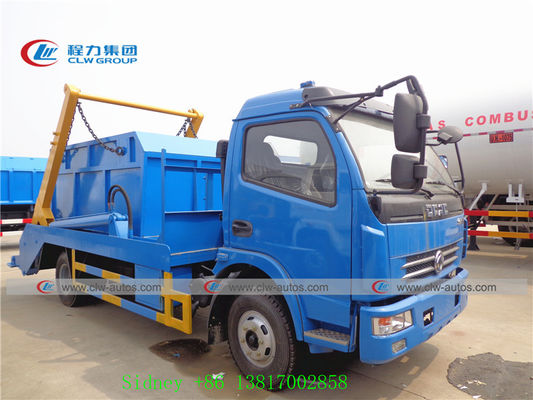

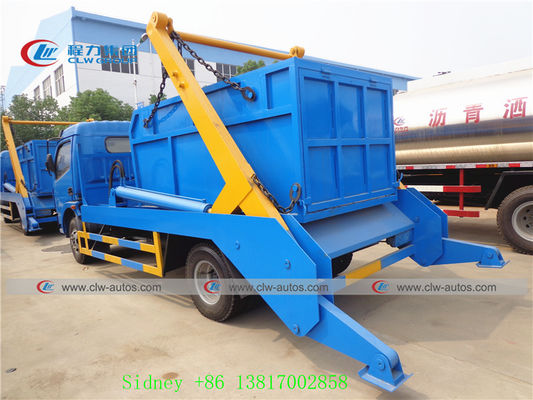

5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 05cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 15cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 2





Truck Diagram

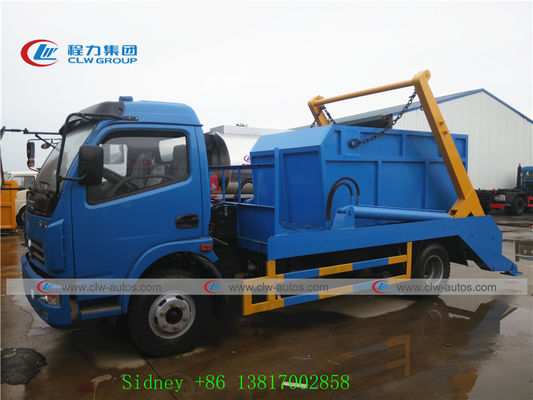

5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 3

 Working Show

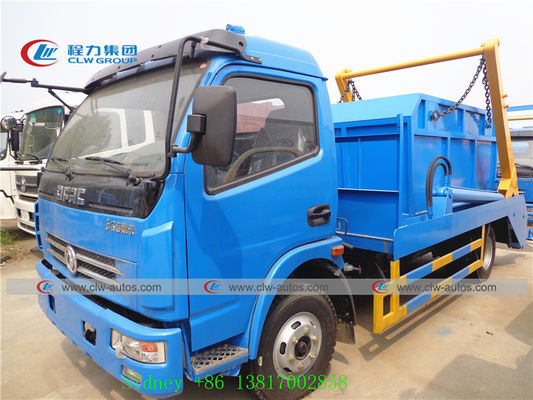

5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 4

Truck details

5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain 5



Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipmen



FAQ



Q1: What kinds of waste collection truck I can order from your company?


A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied waste collection truck to any overseas companies?


A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
