10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck
10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck

Large Image :  10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, BV, SGS
Model Number: CLW5107CZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Units/Month
Detailed Product Description
Chassis Brand: Isuzu, Dongfeng, Foton, Sinotruk, JAC, Etc. Campacting Ratio: 0.8-0.9 Ton/m3
Compression Ratio: 3-4 Compression Cycle Time: ≤15 S
Unload Garbage Time: ≤23 S Hydraulic Pressure: 16Mpa
Garbage Box Thickness: Side 3mm, Bottom 4mm, Carbon Steel-Q345A Garbage Box Volume: 5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, Etc.
Garbage Box Capacity: 4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, Etc. Dirty Water Tank Volume: 0.2CBM
Hopper Volume: 0.8CBM Controlling Way: Manual And Electrical Control
Logo And Painting: As Per Customer's Request Delivery Time: 30 Working Days
Warranty: 1 Year
High Light:

Foton Waste Compactor Truck

,

Jmc Waste Compactor Truck

,

10cbm Howo Garbage Compactor Truck

10cbm Dongfeng HOWO Isuzu Jmc Foton Euro 3 or 4 Waste Compactor Garbage Collection Delivery Truck







Product Description

1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;

2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;

3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.

4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.

5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.



Product Specification

Upper Body Specification
Compector Box Box Volume 10cbm/6Tons
Box Capacity 10Ton
Dirty Water Tank Volume 0.2CBM
Hopper Volume 0.8CBM
Compression density 0.8-0.9T/CBM
Compression ratio 3-4
Compression cycle time ≤15 s
Unload garbage time ≤23 s
Body Thickness Side 3mm, Carbon Steel-Q345A
Bottom 4mm, Carbon Steel-Q345A
The Electromagnetic Valve UZCT-115/24V, 2sets
Hydraulic Pressure 16Mpa
Controlling Way Manual and electrical control
Other Configuration
  1. Equipped with hermetic dustbin.
  2. Hydraulic system: Hydraulic ejection plate, Hopper, Lifting system, Compression system(sliding plate, scraper board), Receiving system, Loading system.
  3. Operating system: Rear operation panel board, Manual operation panel board.
Options Tail feed flip frame or flip bucket, PLC one-button control system, etc.

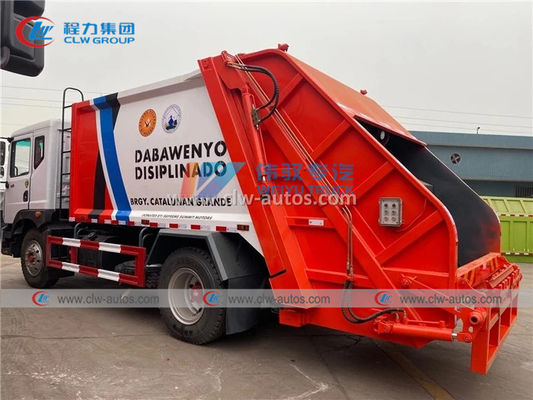

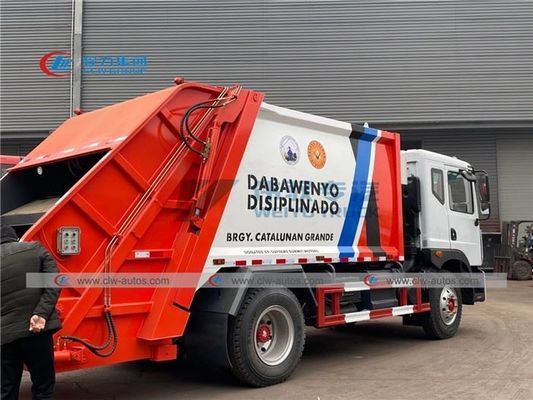

Reference Photos

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 0

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 1

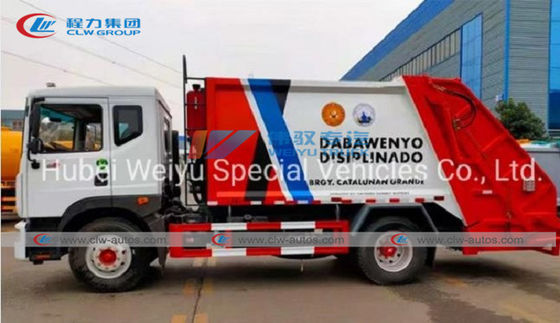

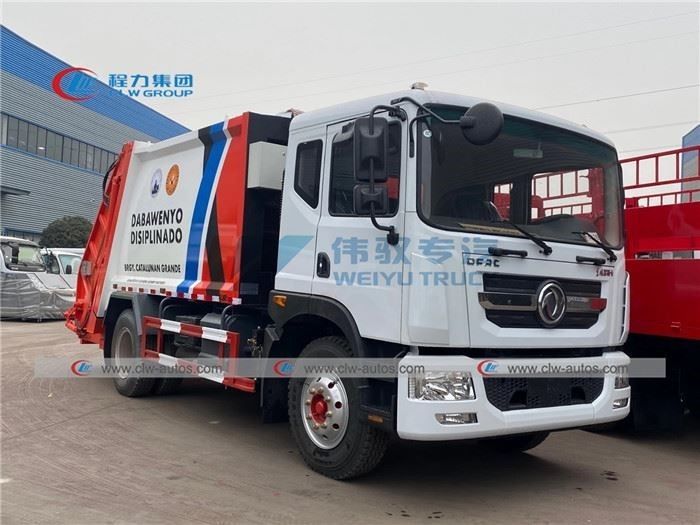

Structure Diagram

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 2

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 3

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 4

10cbm Dongfeng Howo Isuzu Jmc Foton Waste Compactor Truck 5



Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different kinds and sizes garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM compactor garbage truck, hook lift garbage truck, swing arm garbage truck, hanging barrel garbage truck, etc. Pls contact with us for more technical details and discussion.



Q2: What is your production standard of garbage trucks?

A: China GB local standard.



Q3: Can we adopts International brand equipment or accessories for garbage truck?

A: Sure, we already cooperated with many international brand suppliers.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
