3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck

3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck
3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck

Large Image :  3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC, ISO, BV, SGS
Model Number: CLW5107BP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500Units/Month
Detailed Product Description
Chassis Brand: Dongfeng, Foton, Isuzu, Sinotruk, Etc. Container Volume: 3.0cbm/4.0cbm
Tank Material: Q235 Carbon Steel Side Plate Thickness(mm): 3.0 Mm
Bottom Thickness(mm): 4.0 Mm Control Model: Hydraulic Control
Control Panel: Close To Cabin Loading Time: 50-60s
Unloading Time: 40-50s Controlling Way: Three-way Hydraulic Control Valve
Logo And Painting: As Per Customer's Request Delivery Time: 30-35 Working Days
Warranty: 1 Year Drive Model: 4X2/6 Wheels/4*2
High Light:

3cbm Hook Lift Garbage Truck

,

5cbm Hook Lift Garbage Truck

,

8cbm Waste Collection Truck

Bulk Order 3cbm 5cbm 8cbm 10cbm 12cbm Refuse Collector Vehicle Hook Lift Garbage Truck








Product Description


1. Swing arm type garbage truck is applicable to the national general garbage hopper, with self unloading function and hydraulic operation. The garbage hopper can be hoisted up and down by itself, and the swing arm once working cycle time is 60s. The truck is characterized by the separation of the cargo hopper and the vehicle body, which can realize the combined operation of one truck and multiple cargo hoppers, circular transportation, and fully improve the transportation capacity of the vehicle, especially suitable for short-distance transportation, such as the cleaning and transportation of urban garbage by the environmental sanitation department.


2. Garbage Bin with different size options of waste recycling truckk: 4cbm to 10cbm;


3. Hydraulic Control Loading&Unloading System;


4. Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;


5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;


6. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;


7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;


8. Best Choice for Garbage collection and transporation Inside City.



Product Description

Condition New condition/Left hand drive/Right hand drive/4x2
Main details Wheelbase(mm) 2600;2800;2850
Front/Rear Axle loading(kg) 2000/4000
Rear axle ratio 5.375(6.142)
Wheel track (front/rear) (mm) 1440/1425
Front/Rear overhang(mm) 1110/1488
Min. Ground Clearance 190
Approach/Departure angle(°) 20.5/17 °
Max. driving speed(km/h) 100
Battery 12V*2 ; 100Ah*2
Alternator 14V 60A
Starter 12V 2.8kw
Clutch Dry single plate
Brakes Hydraulic brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 6.50-16
Oil tank Fuel tank material Steel
Fuel tank capacity (L) 100
Transmission Manual type, 5 Forwards and 1 reverse
Cab It can accommodate three people. With Air Conditioner

Engine
Brand Optional
Model Optional
Fuel type Diesel
Emission standard Euro 1/Euro 2/Euro 3/Euro 4/Euro 5
Upper & Control System
Garbage box Capacity(cbm) 3.0cbm/4.0cbm
Tank material Q235 carbon steel
Side plate thickness(mm) 3.0 mm
Bottom thickness(mm) 4.0 mm
pulley wheel quantity(pcs) 4 pcs
Control System Control model Hydraulic control
Control panel Close to Cabin

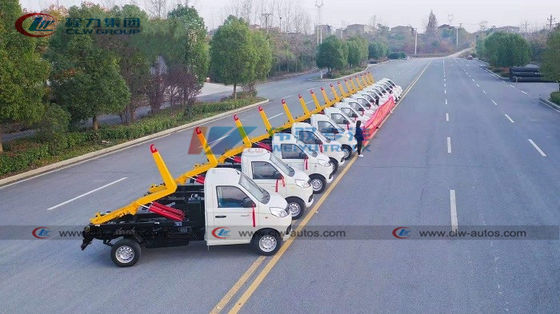

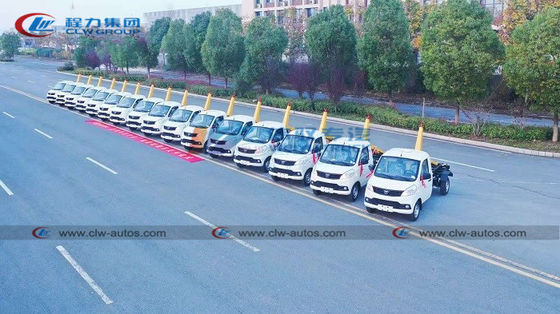

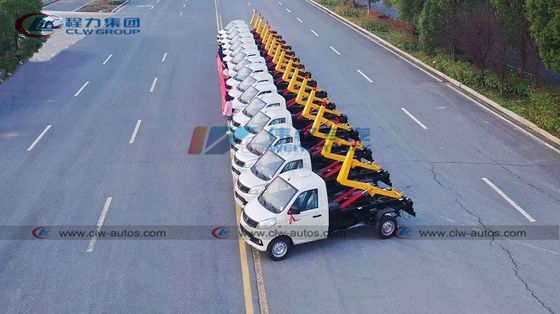

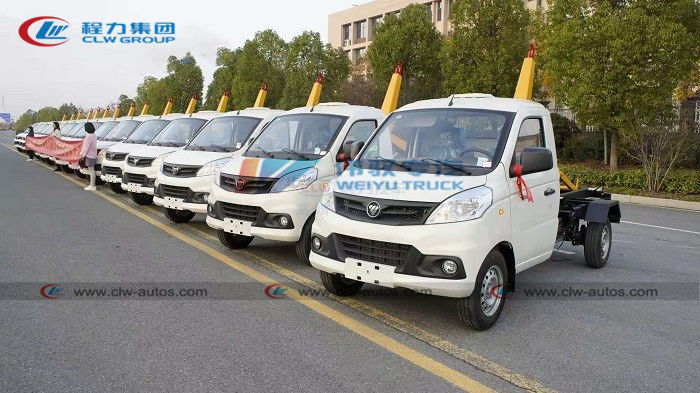

Reference Photos
3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 0

3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 1

3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 2

3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 3

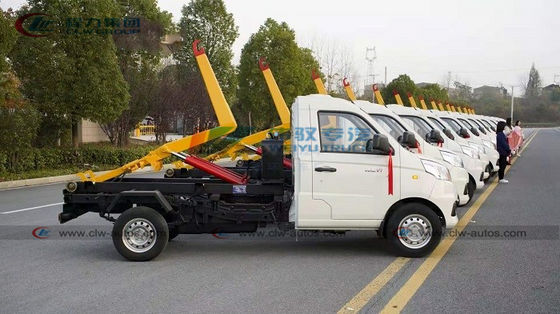

Main Structure and Details
3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 4
3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 5


Main Parts
3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 6

Different Types of Garbage Truck
3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 7
3cbm 5cbm 8cbm 10cbm 12cbm Mobile Hook Lift Garbage Truck 8


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different kinds and sizes garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM compactor garbage truck, hook lift garbage truck, swing arm garbage truck, hanging barrel garbage truck, etc. Pls contact with us for more technical details and discussion.



Q2: What is your production standard of garbage trucks?

A: China GB local standard.



Q3: Can we adopts International brand equipment or accessories for garbage truck?

A: Sure, we already cooperated with many international brand suppliers.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
