Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | JMC,JAC,SHACMAN,Dongfeng,ISUZU,HOWO,FOTON. | Temperature Range: | -18 Degree To 0 Degree |
|---|---|---|---|
| Van Material: | Fiber Glass | Insulating Layer: | 8cm Polyurethane Foam |
| Usage: | Vegetable, Meat, Ice Cream, Fish Frozentransport | Truck Refrigeration Unit: | US Brand Thermo King, Carrier Or Chinese Brand |
| Delivery Time: | 25-30 Days | Logo: | As Per Customer Request |
| Warranty: | 1 Year | ||
| High Light: | 4X2 Small Refrigerated Truck,JMC Small Refrigerated Truck,JMC Small Freezer Truck |
||
Jmc 4X2 3-5ton Food Transport Small Refrigerated Truck Refrigerator Freezer Truck
Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Specification
| No. | Item | Unit | Specification |
| 1 | Vehicle Name | JMC 3- 5Ton refrigerator truck | |
| 2 | Drive type | 4*2 | |
| 3 | Steering type | Left hand drive | |
| 4 | Gross Weight | kg | 4495 |
| 5 | Wheelbase | mm | 3360 |
| 6 | Overall Dimension | mm | 5995*2350*3350 |
| 7 | Van body size | mm | 4100*2150*2150 |
| 8 | Insulating layer thickness | cm |
8 (High density polyurethane insulation) |
| 9 | Van material | Fiberglass reinforced | |
| 10 | Refrigerator unit brand | Thermoking or Carrier | |
| 11 |
Refrigeration temperature range( degree centigrade) |
-18/-15 to 0 | |
| 12 | Chassis Brand | JMC | |
| 13 | Horsepower | ml/kw | 115HP |
| 14 | Emission Standard | Euro2,3,4,5 | |
| 15 | Fuel Type | Diesel | |
| 16 | Tyre specification | 7.00R16 |

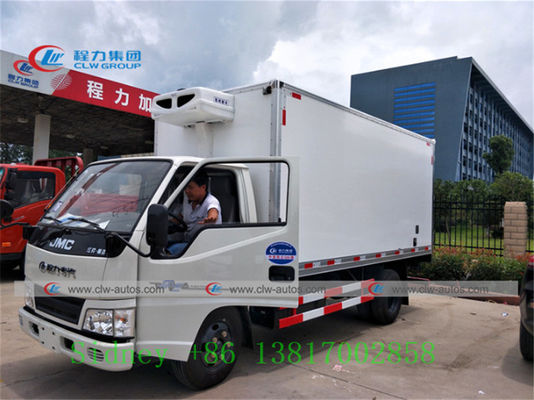

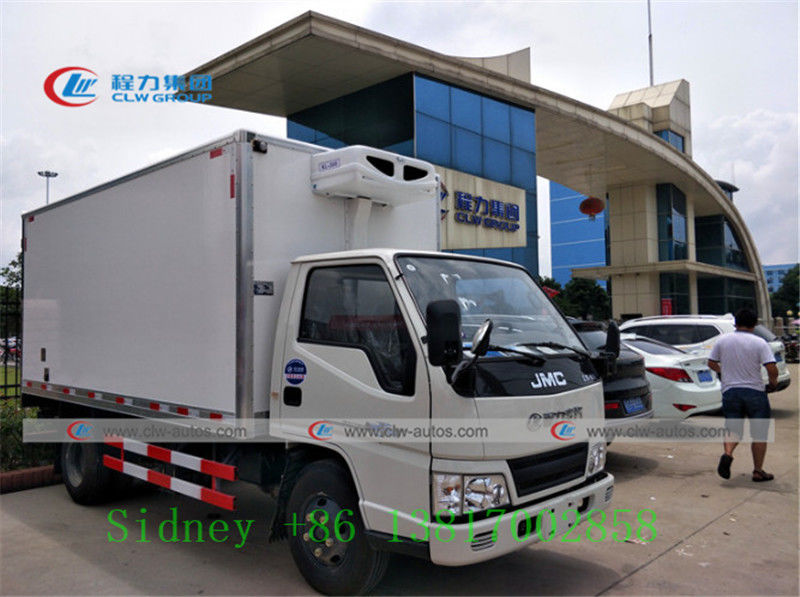

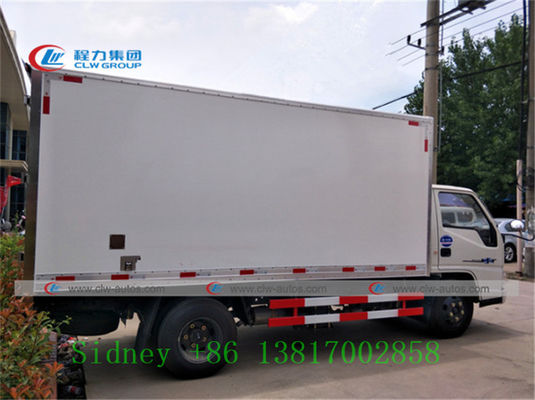

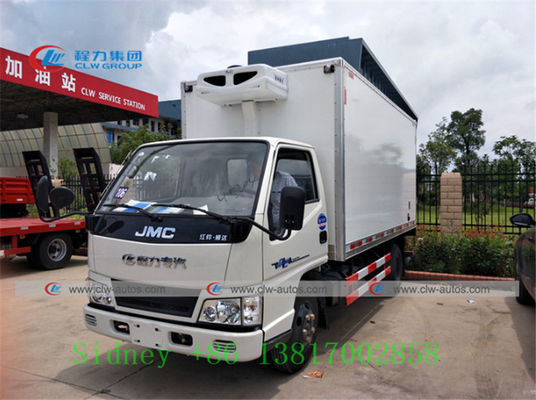

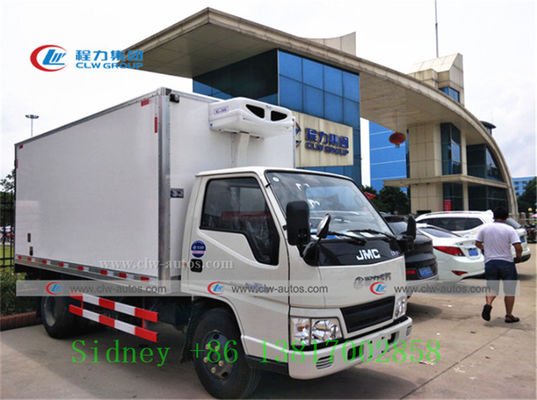

Reference Photos

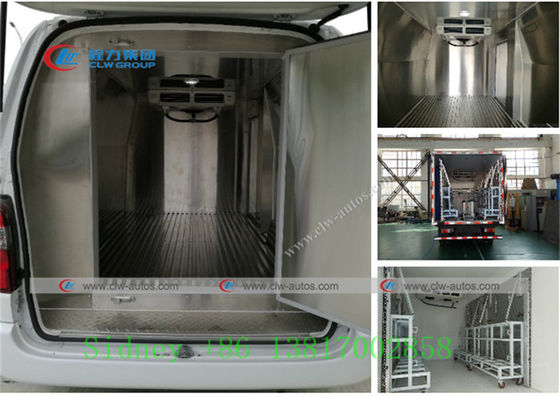

Details for refrigerated van truck

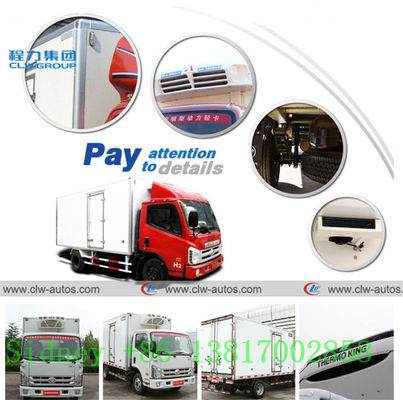

Optional parts
Other Details
Factory Overview
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
