Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Howo, Foton, Isuzu, Sinotruk, Etc. | Hopper Size: | 8 10 12cbm, Ground Type |
|---|---|---|---|
| Loading Capacity: | 6 7 8 9 10Ton | Material Thickness: | 4mm Bottom, 3mm Side |
| Protective Material: | Q235A Carbon Steel | Painting: | Anti Corrosion Paint |
| Hydraulic System: | Oil Tank & Cylinder | Dump Type: | Hydraulic Cylinder Lifting And Self-loading |
| Swing Arm: | 2 Units, Steel | Landing Leg: | 2 Unit Landing Leg |
| Valve: | Multi-Valves | Controlling Way: | Three-way Hydraulic Control Valve |
| Skip Loader: | 5cbm, 6cbm, 8cbm | Hopper Shape: | Square, Triangular, Etc |
| Hopper Connection: | 2 Strong Chain | Extra Hopper Quantity: | As Per Customer's Request |
| Logo And Painting: | As Per Customer's Request | Warranty: | 1 Year |
| High Light: | 15m3 Skip Loader Garbage Truck,12m3 Skip Loader Garbage Truck,Dongfeng 4X2 Swing Arm Garbage Truck |
||
Product Description
According to loading and unloading type, garbage trucks are divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Swing Arm garbage truck is also called Swing Arm Garbage truck, garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitation ,large factories and mines ,etc, especially apply to transport household waste in residential area.
Product Feature
1. Dongfeng Chassis of waste recycling truck: Engine 170HP, Fast Gearbox 6Forward & 2Reverse;
2. Garbage Bin with different size options of waste recycling truckk: 4cbm to 10cbm;
3. Hydraulic Control Loading & Unloading System;
4. Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape.
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;
6. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;
7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;
8. Best Choice for Garbage collection and transporation Inside City.

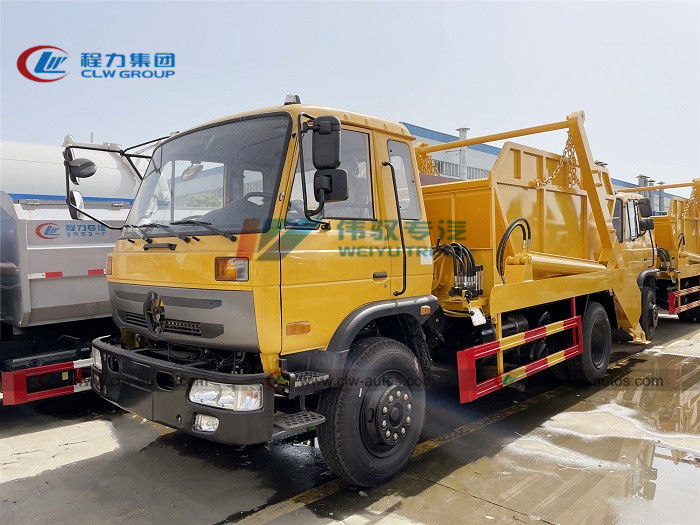

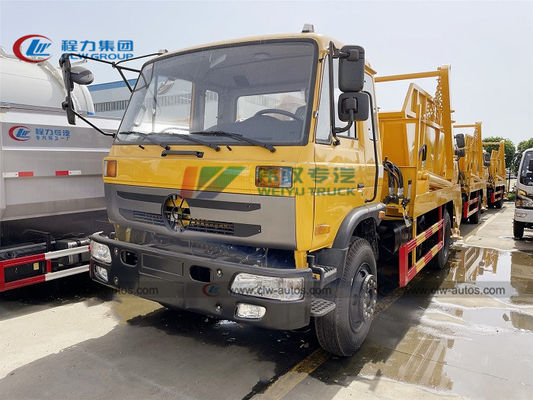

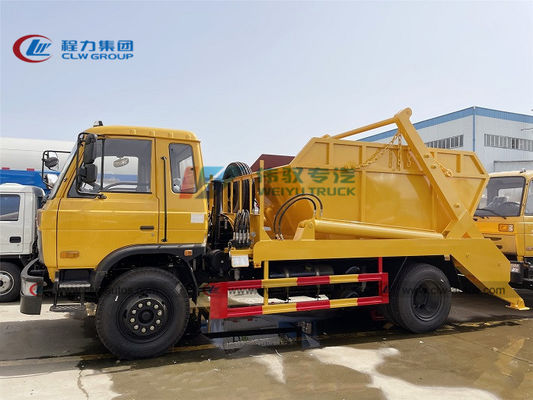

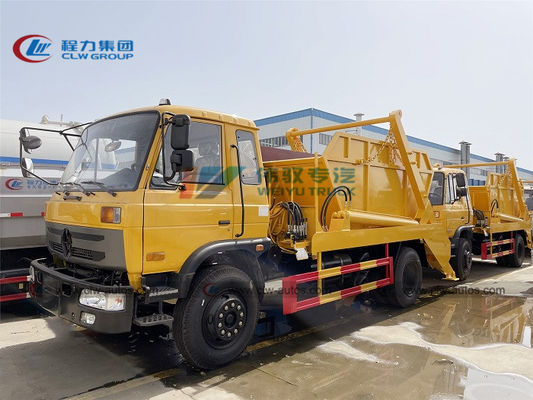

Reference Photos
Product Description
| Upperstructure Specification | ||
| Garbage Hopper | Dimension | 3700*1850*1400mm |
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
| Volume | Ground type, 10CBM | |
| Loading Capacity | 6Ton | |
| Thickness | 5mm, Carbon Steel Q235B | |
| Dump type | Hydraulic cylinder lifting and self-loading | |
| Dump angle | ≥45° | |
| Hydraulic system pressure | ≤16Mpa | |
| Protective Material | Q235A Carbon Steel | |
| Controlling Way | Three-way hydraulic control valve | |
| Other Configuration |
|
|
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
Main Structure Diagram
Bulk Order of 120 Units to Madagascar
Different Types of Garbage Truck
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage Truck?
A: China GB local standard.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
