LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck

LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck
LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck

Large Image :  LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC,SGS,BV
Model Number: CLW5044

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked,Waxed,bulk ship,Ro-Ro
Delivery Time: 30-35 days after received deposit
Payment Terms: D/A, D/P, T/T, Western Union, Western Union, L/C
Supply Ability: 500 units/month
Detailed Product Description
Box External Thickness(mm): 1.2mm 1.5mm 1.8mm 2.0mm Internal Thickness(mm): 1.2mm 1.5mm 1.8mm 2.0mm
Interbed Material: Polyurethane Foam Interbed Thickness(mm): 80mm 100mm 120mm
Interior And External Of Box: Fiber Glass Drive Model: 4x2/6x4/8x4; As Per Super Structure Size
Wheelbase(mm): 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm Color: White; Blue; Green; Yellow; Customized
High Light:

5T Refrigerated Van Truck

,

Sinotruk HOWO Refrigerated Van Truck

,

LHD Refrigerated Box Truck

Sinotruk howo 5 Ton small refrigerator truck,refrigerated insulated van box truck



Description:

5 Ton small refrigerator truck,refrigerated insulated van box truck is our newly developed refrigerated and insulated special vehicle. Adopting the British designed technology of negative pressure and equipment, we also carefully select the best raw material from home and abroad to the manufacture of our refrigerated box trucks and guarantee the reliable refrigerated transport.



Main Feature:

1: Assembled under the adhesive bonding technology of German KOGEL, the insulation box of our reefer truck will be edged and its corners will be wrapped with aluminum alloy. A LED light will be installed inside. We adopt the No.304 stainless steel to the rear door's frame and hardware.

2: The sealant of the rear door is endurable vulcanized rubber, which guarantees superior gas tightness and ensures the performance of insulation by forming a maze seal off.

3: Having rigorous structure without any cold bridges, our refrigerated truck has solid and flexible inner quality, superior sealing performance, excellent effect of insulation, fine and smooth appearance, bright and clean inner and outer surfaces, etc.

4: With light weight and long lifespan, but also ageing resistance and corrosion resistance, the truck body of our refrigerated truck is easy to be cleaned and maintained.

5: About the refrigerator unit, we choose domestic and thermo King, Carrier, Mitsubishi and other international famous brands.

6: Choose to fix meat hooker, leading rails, ventilation slots for transport fresh meat, vegetables, seafood or transport dangerous chemicals.


Specification

Model Sinotruk howo 5 Ton small refrigerator truck,refrigerated insulated van box truck
Drive style 4X2, Left hand/ Right hand
Overall dimensions 6060×2300×3190mm
Wheel base 3360mm/3800mm/4200mm
Cab 1880 Cabin/2080 Cabin ( Berth can be optional)
Engine China engine/Cummins Engine/ISUZU engine
116HP-160HP
Diesel EURO II, IV, V
Transmission Manual 6F
Tire 7.00R16/215/75R17.5
Fuel tank 120L/150L
Front/Rear Axle 2.4+7.2, 3.6+10.5
Suspension Multi leaf springs
Brake Air brake
Refrigerating System Refrigerated Body Size:4210mm×2100mm×2300
Loading Capacity: 5 Tonnes
American Thermo King/Carrier brand Non-Independent refrigeration unit.
Chassis,sub frame,van body(outer glass steel,polyurethane foam insulation),stainless steel locks,stainless steel door frame,with overhead light and anti collision device,domestic refrigeration unit

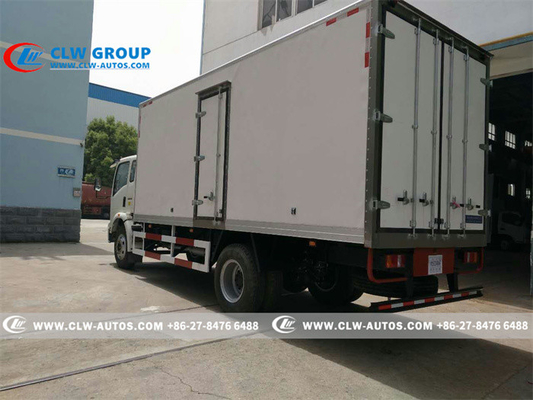

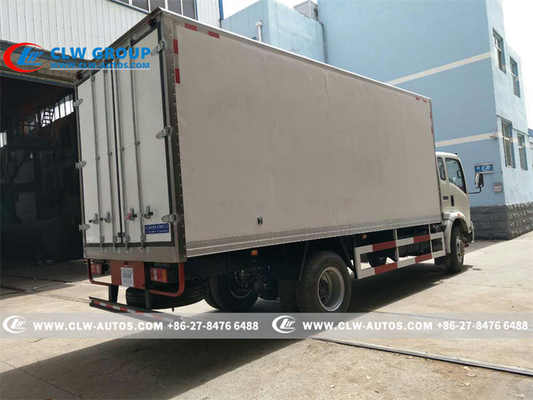

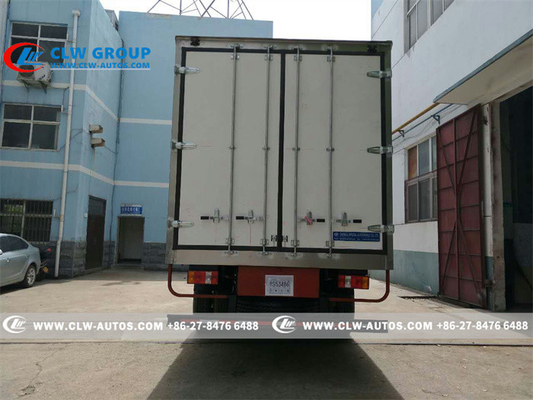

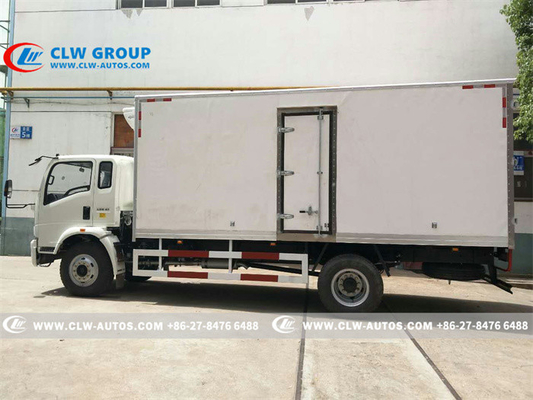

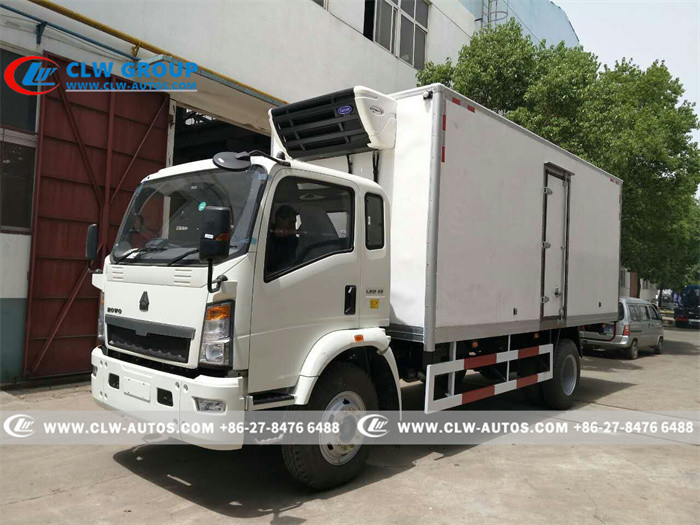

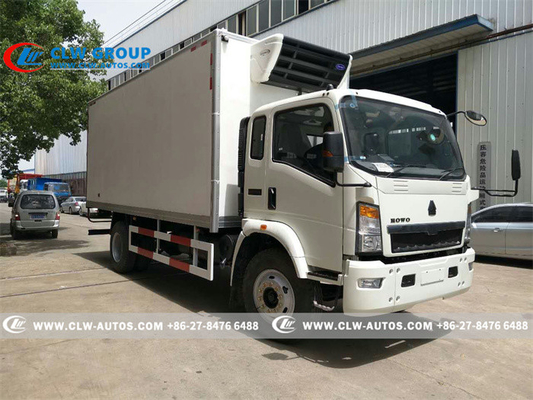

Reference photos

LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck 0LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck 1LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck 2













Main Structure



1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel

2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THMOKING,south korean brand such as DONG IN THERMO CO., LTD

3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source

4) Stainless steel knock

5) Hooks for hanging meat

6) stainless steel or glass steel bottom plate with ventilating slot

7) Temperature controller in cabin and easy for operation



LHD RHD Sinotruk HOWO 4X2 5Ton Refrigerated Van Truck 3





Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

  •

FAQ



Q1: What loading weight refrigerator truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopts International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
