Product Details:
Payment & Shipping Terms:
|
| Box External Thickness(mm): | Fiber Glass 1.2mm | Internal Thickness(mm): | Fiber Glass 1.2mm |
|---|---|---|---|
| Interbed Material: | Polyurethane Foam/PE | Interbed Thickness(mm): | 80MM |
| Drive Model: | 4x2/ 6 Wheels | Wheelbase(mm): | 3300mm |
| Color: | White As | Refrigerator Brand: | Thermo King |
| Loading Capacity: | 4000kg | Truck Brand: | ISUZU |
| High Light: | 4T Freezer Box Truck,ISUZU Freezer Box Truck,Thermo King Refrigerator Cold Room Truck |
||

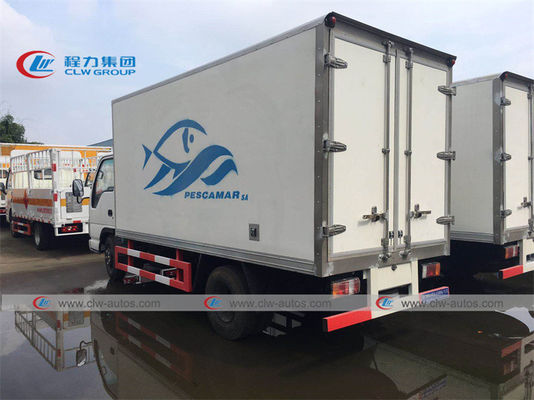

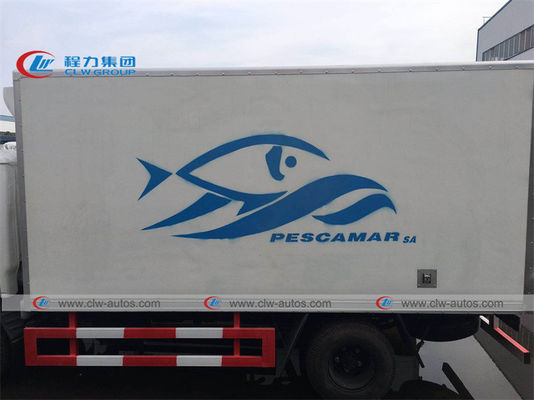

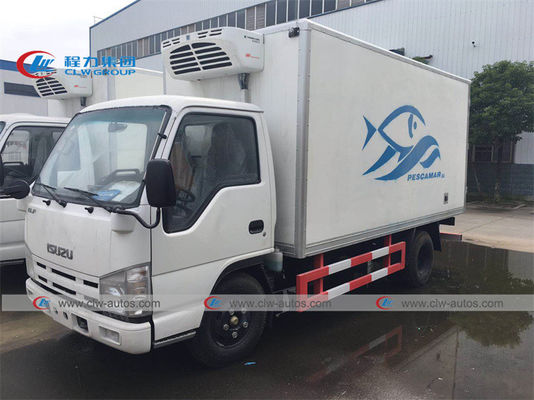

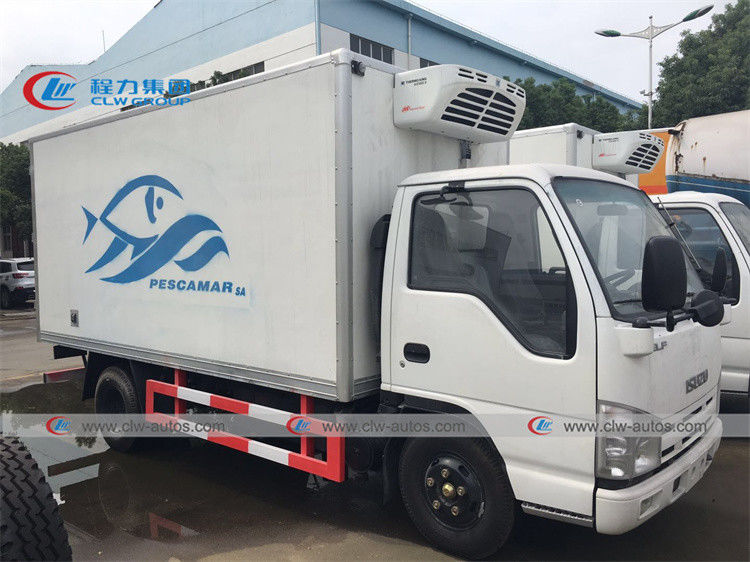

ISUZU 4Ton Fish Meat Cold Room Truck with Thermo King Refrigerator
Product Description
1. For transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Temperature Adjustable Freezer to meet different requirement.
3. Brand: Thermo King, Carrier, Denso, Chinese Brand etc.
4. Can add meet hook, guide rail, slot floor, stainless steel inside. etc.
Refrigerator Truck also called Refrigerated truck, .
1. Loading capacity :1ton ~3ton, 5ton ~10ton,12ton~15ton, 20tons,etc.
2. Truck brand : Foton, 1suzu, Howo, Dongfeng, Jac, Jmc,etc
3. To transport : fish, seafood, meat, vegetable, milk, food,fruit, etc.
4. How to buy meat transport truck,
please contact with Eric by whatsapp: +86 186 0715 8551
Spec of ISUZU 3ton 4ton Refrigerator Truck
| No. | Item | Unit | Specification |
| 1 | Vehicle Name | ISUZU 3 to 5ton refrigerator truck | |
| 2 | Drive type | 4*2 | |
| 3 | Steering type | Left hand drive | |
| 4 | Gross weight | kg | 4495 |
| 5 | Curb weight | kg | 2866 |
| 6 | Wheelbase | mm | 3360 |
| 7 | Overall Dimension | mm | 5995*1910*2790 |
| 8 | Van body size | mm | 4100*1740*1750 |
| 9 | Insulating layer thickness | cm | 8 |
| 10 | Van material | Fiberglass reinforced | |
| 11 | Refrigerator unit brand | Thermoking or Carrier | |
| 12 |
Refrigeration temperature range( degree centigrade) |
-18 to 0 | |
| 13 | Chassis Model | QL1040 | |
| 14 | Chassis Brand | ISUZU | |
| 15 | Engine Model | 4KH1CN5HD | |
| 16 | Displacement / Power | ml/kw | 2999 / 96KW/ 130HP |
| 17 | Emission Standard | Euro 4,5 | |
| 18 | Fuel Type | Diesel | |
| 19 | Tyre specification | 7.00R16 8PR |
Main Structure of commercial refrigerated box truck
1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel
2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THERMO KING,south korean brand such as DONG IN THERMO CO．,LTD
3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source
4) Stainless steel knock

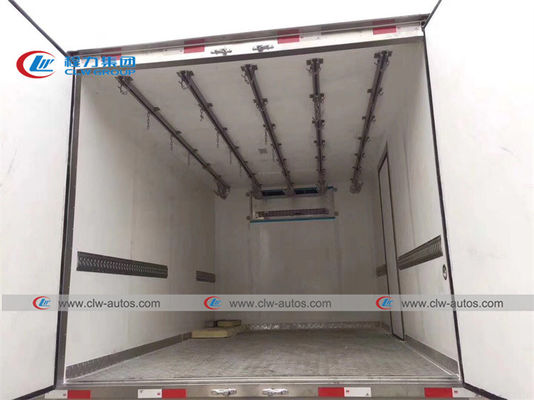

5) Hooks for hanging meat
6) stainless steel or glass steel bottom plate with ventilating slot
7) Temperature controller in cabin and easy for operation
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
FAQ
Q1: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerated truck? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopts International brand refrigerating unit for freezer truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
