Product Details:
Payment & Shipping Terms:
|
| Box Material: | Fiber Glass Or Stainless Steel | Optional Part: | Meat Hook, Air Trunking, Side Door, Rear Platform |
|---|---|---|---|
| Material: | Fiberglass Panel | Insulating Layer: | 8cm Polyurethane Foam |
| Truck Refrigeration Unit: | Thermoking, Carrier Or Chinese Alternative | Applicable Temperature: | -18~0 |
| Box Type: | 3 Layer Sandwich | Outside Layer: | Fiber Glass |
| Middle Layer: | 8mm PE Foam Insulation | Inner Layer: | Fiber Glass Or Stainless Steel |
| High Light: | 4x2 Refrigerated Box Truck,HOWO Refrigerated Box Truck,Thermo King Freezer Delivery Truck |
||

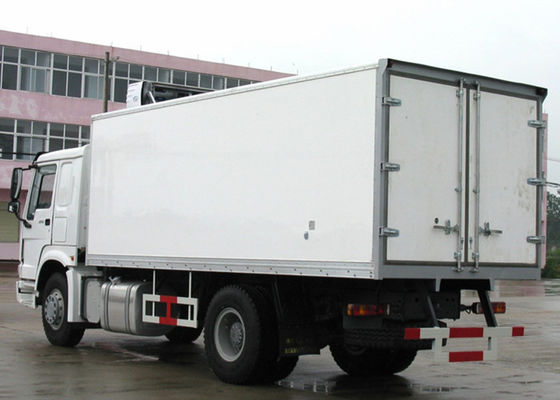

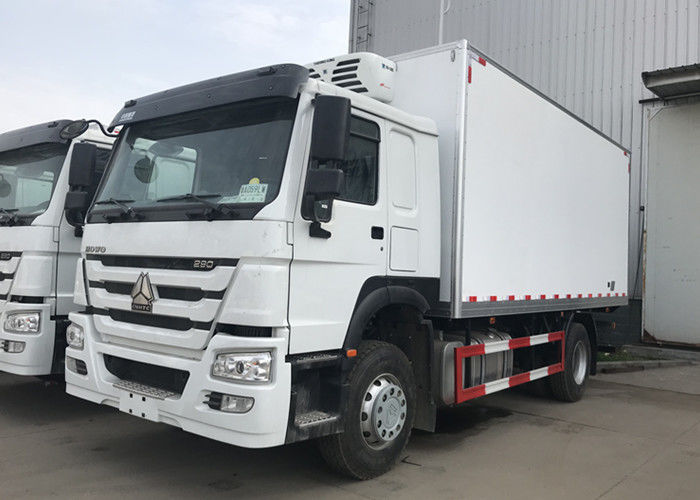

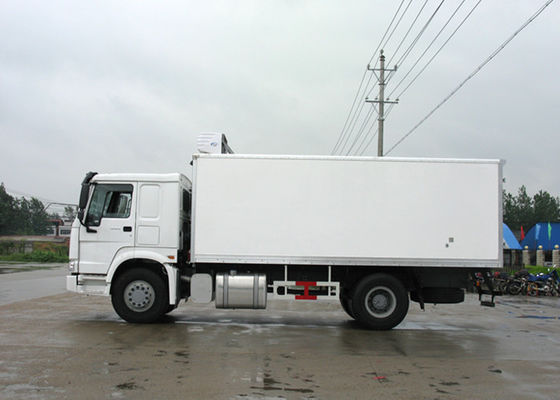

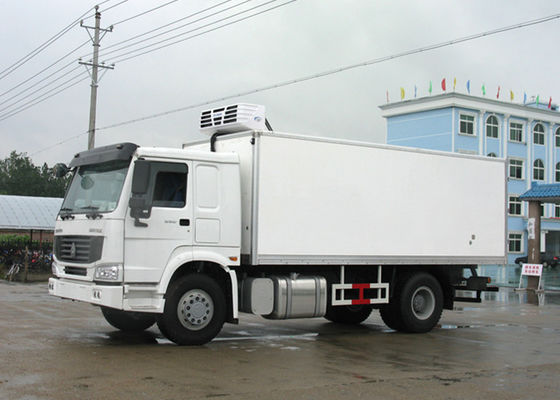

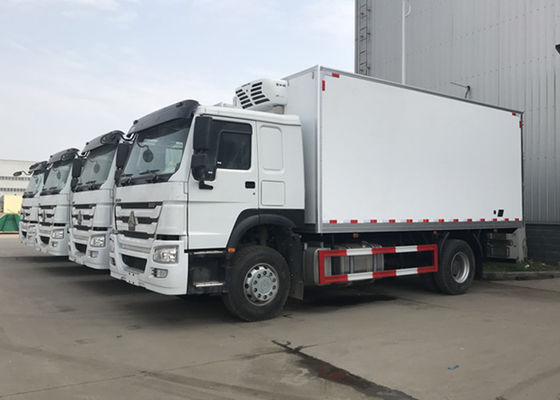

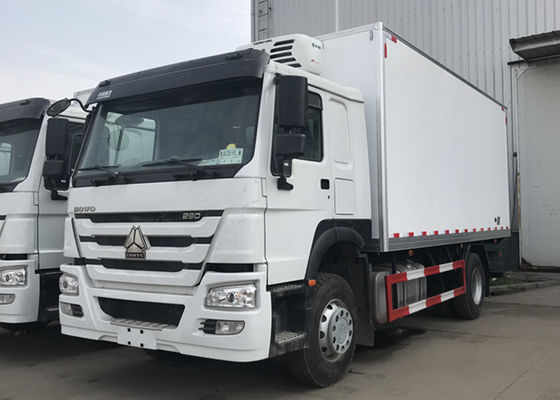

HOWO 4x2 6 wheels Insulated Refrigerator Truck Refrigerated Box Truck With Thermo King Freezer
Description:
1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.
Advantages of Insulated Freezer Van body:
The advantages of Insulated/Freezer Van Body
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside
and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm
thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional
according to which kinds of goods the truck transport, with perfect heat preservation, box open model:
Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,
hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple
structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise,
easy installation and maintenance and other advantages.
Speicfiation:
| Cabin |
HW76 Standard Cab, Left hand drive, one sleeper. A/C With two bunks, 70° hydraulically tillable to the front as attached photo for ref. |
||||
| Vehicle Main Dimensions | (L x W x H)mm | 8600x2500x3370 | |||
| Wheel base (mm) | 4600 | ||||
| Wheel track (front/rear) (mm) | 2022/1830 | ||||
| Approach/Departure angle(°) | 16/15 | ||||
| Weight in KGS | Tare Weight | 8950 | |||
| Loading Capacity | 16000 | ||||
| Front axles loading capacity | HF7 1x7000 | ||||
| Rear axles loading capacity | 1*ST16 1x16000 | ||||
| Max. driving speed(km/h) | 75 | ||||
| Engine | Brand | Sinotruk | |||
| Model | D10.28-40 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 280HP | ||||
| Emission standard | Euro-4 | ||||
| Gearbox | HW13710CL, 10 Forwards gear & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8118, power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300 | ||||
| Tire | 12R22.5 radial steel tire 6 Pieces with one spare | ||||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
| Paint | Anti-corrasive | ||||
| Refrigerating System |
1, Box Size: 5600×2300×1500(mm) 2, Box Material, glass epoxy in the surface, foam in the middle , thickness is 80mm 3, Working temperature is minus 18 centi degree. 4. USA ThermoKing brand Non-Independent refrigeration unit. 5, Rear door open |
||||
More Pictures:
