Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Q235B | Thickness: | Side 3mm, Button 4mm |
|---|---|---|---|
| Container Quantity: | For Choice | Hopper Size: | 10cbm |
| Engine: | Diesel Engine | Drive Wheel: | 4x2 |
| Warranty: | 12 Months | Logo: | Customized LOGO |
| User Manual: | Yes | Truck Chassis: | Dongfeng,HOWO,SHACMAN,JAC,JMC,ISUZU |
| High Light: | 10 Ton Skip Loader Garbage Truck,4x2 Skip Loader Garbage Truck,Skip Loader Cummins Engine Truck |
||

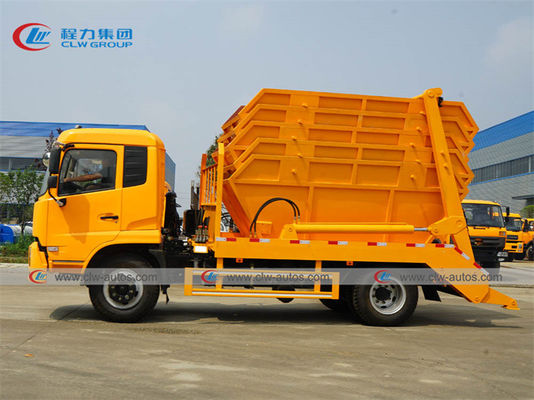

Dongfeng Swing Arm Garbage Truck Chassis Specification
Model 1:
Model 2:
Communicate with Mr Eric Cen for more details: +86 186 0715 8551.

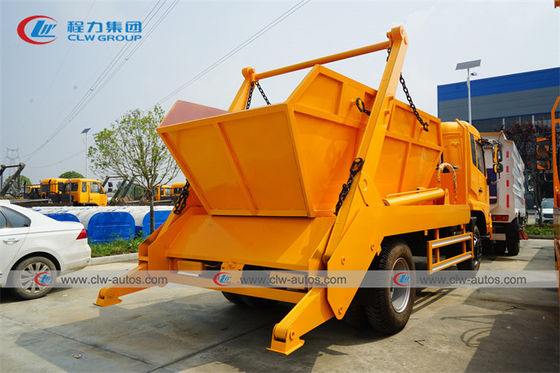

【Swing Arm System Structure】
The swing arm mechanism is composed of a steel plate to form a box-shaped structure. Its main function is to drive the swing arm to rotate around the axis by a multi-way valve control oil cylinder. The rotation angle is 145°, which can lift the hopper and tilt the hopper.
【Swing arm garbage truck hopper:】
The hopper is a metal welded part, and it has two forms: open and sealed. After the bulk cargo is loaded into the hopper, hang the hoisting chain, and the hopper can be hoisted onto the truck by operating the swing arm. When unloading, operate the swing arm to lift the hopper, and after landing, remove the hoisting chain at one end to operate the hopper to discharge. The tipping angle of the hopper can reach 86°.
【Hydraulic operating system:】

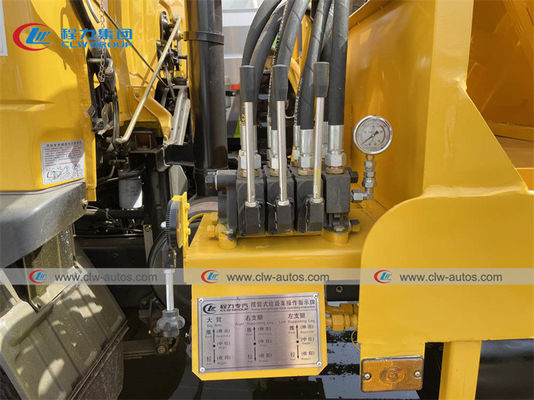

It is composed of hydraulic oil tank, hydraulic oil pump, multi-way reversing valve, hydraulic cylinder, balance valve, hydraulic lock, oil filter and pipeline. , The whole system is powered by the automobile gearbox and power take-off, and the manual multi-way reversing valve controls the outrigger cylinder and the swing arm cylinder for telescopic movement. The displacement of the oil pump of this system can be controlled by the manual throttle under the vehicle. The manual reversing valve handle controls the stroke of the valve rod to control the movement speed of the cylinder piston rod. The system pressure can be set by the safety relief valve. If the system exceeds the set pressure, the safety will overflow. Overflow valve.
Specification:
| Main Specification | ||||||
| Product Name: | Dongfeng Swing Arm Garbage Truck | Overall Size(mm): | 8100x2500x3350 | |||
| GVW:(kg) | 16000 | Approaching/Departure Angle | 19/18 | |||
| Loading Weight:(kg) | 8555,9145 | Front Overhang/Rear Overhang(mm): | 1230/2170 | |||
| Tare Weight:(kg) | 7250,6660 | Truck Speed(km/h): | 90 | |||
| Axle Loading: | 5600/10400 | |||||
| Chassis Specification | ||||||
| Chassis Modle No.: | EQ1165LJ9BDE | Batch No: | 299 | |||
| Axle: | 2 | Fuel Type: | Diesel | |||
| Wheel Base(mm): | 3950,4500 | Front Traction(mm): | 1858,1949,1765,1891 | |||
| Passenger Allowed: | 3 | Rear Traction(mm): | 1806,1865,1750 | |||
| Tire Qty: | 6 | Leaf Spring: | 8/10+7 | |||
| Tire Size: | 9.00R20,10.00R20 | |||||
| Engine Specification | ||||||
| Engine No. | Engine Factory |
Displacement (ml) |
Power(kw) | |||
| ISB180 50 | Dongfeng Cummins | 5900 | 132 | |||
| YC4S160-50 | Yuchai Engine | 3767 | 118 | |||
| Emission Standard | GB17691-2005 EURO 2, GB3847-2005 | FUEL Type | Diesel | |||

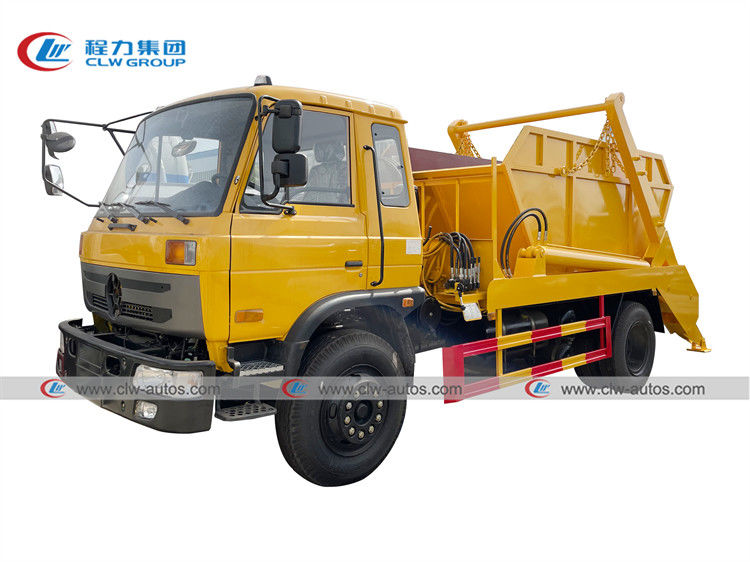

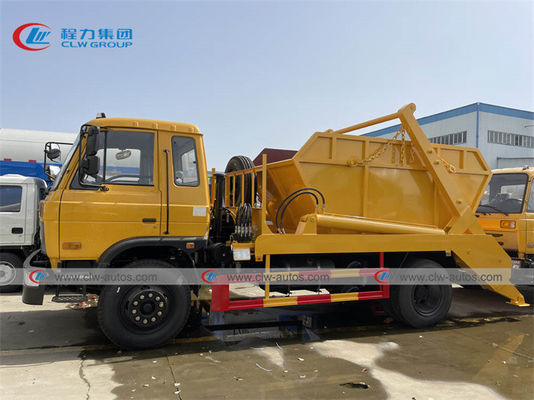

Working Show
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
Q1: What kinds of waste collection truck I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied waste collection truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
