ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper

ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper
ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper

Large Image :  ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210917

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Material: Carbon Steel, Thickness: 4mm Product Name: Refuse Recycling Truck, Hook Arm Lifting Garbage Truck
Drive Type: 4X2 6 WHEELS 6 WHEELER Drive Model: Left Hand Drive,
Capacity: 2M3, 3M3, 4M3, 5M3, 6M3 7CBM, 8CBM Truck Brand: ISUZU HOWO, Dongfeng, Shacman, FAW, FOTON, Jac
Tuck Type: Waste Collection Truck. Roll Off Refuse Removal Truck Other Equipment: With Hyraulic System, Lifting Arm
Function: Rear Loader, Rear Tipper, Rolling Off. Control System: Multi-Valve, Remote Control & Manual Operation
Loading&Unloading: Hydraulic Oil Cylinder Equipment: With Mobile Garbage Compactor Station Or Garbage Bins
Type: Compactor,Rear Loader,Roll Off,carriage Removable Garbage Truck Transmission Type: Manual
Fuel Type: Diesel Emission Standard: Euro 3
Application: Workplace Use,Waste Disposal Collection Truck For Home Use,garbage Compactor Truck For Home Use,Mobile Food Kiosk
High Light:

ISUZU Hook Lift Garbage Truck

,

4x2 Hook Lift Garbage Truck

,

ISUZU Roll Off Garbage Truck

 ISUZU 4x2 small 3Tons 2Tons Roll Off Hook Arm Lift Garbage Truck With Detachable Hopper





Product Description




The Hook lift/Arm roll Garbage Truck really works well when the people need not to take the garbage from the container and load it to the garbage truck. What the truck does is just replace it with a empty one which promotes the efficiency. And the Arm roll garbage truck is wildly used in transporting different types of construction scrap materials or industrial waste which must be kept separate and transported. Multiple types of containers can be fitted on one truck for collection, increasing work efficiency.
Containers are easy to load and unload safely. The contents can also be dumped out like a regular dump truck if desired. The mechanism for preventing the container from shaking during transportation comes standard. The arm slider mechanism keeps the container close to the ground during loading and unloading.



Hook arm lift garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology.


product Specification



1. The general specification

Name 2Tons 3Tons Roll Off Hook/Arm Lift Garbage Truck
Dimension 5995*2150*2650mm
Gross weight 6000 kg
Curb weight 2005 kg
Rated load weight 3800kg
Approach/departure angle(°) 24/10
F/R overhang 1250/1500mm
Wheel base 3360mm
Axle load 2000/3000kg
Max speed 90km/h



2. The Chassis Specification

Brand Japan Brand
Tire 6
Tire specification 7.00-15
Sping plate number 24/12
Fuel Diesel



3. The Engine Specification



Engine Manufacture 4JB1CN
Engine Power 100hp
Engine Displacement 3520ml



4. The detachable garbage container specification

Material High strength anganese steel
Volume 3-5 CBM

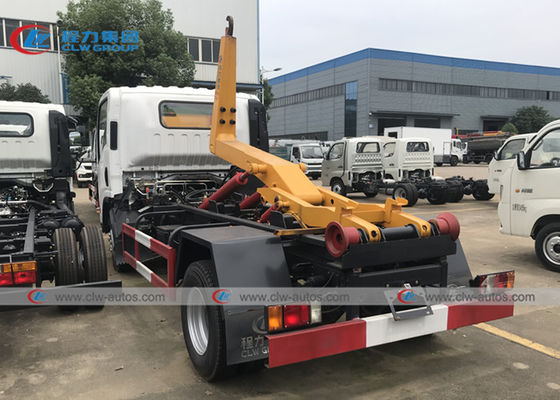

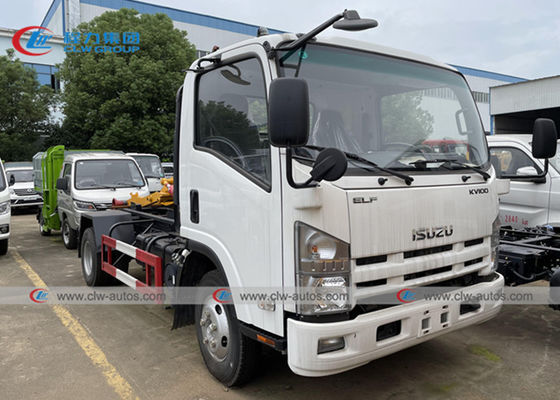

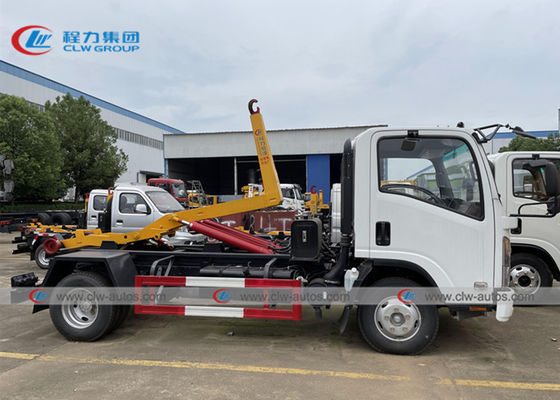

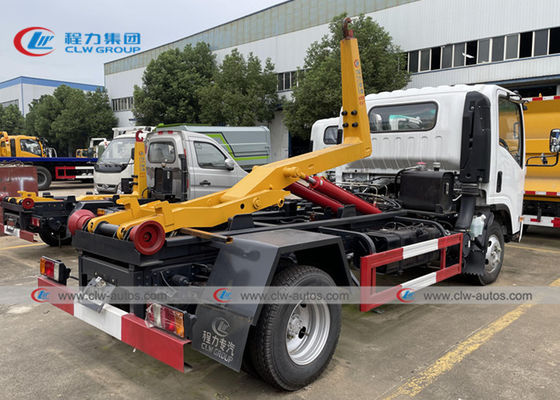

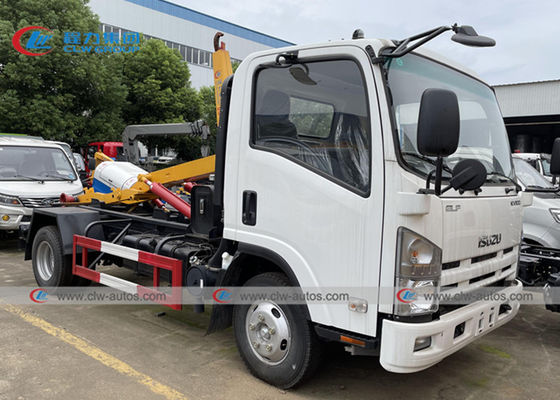

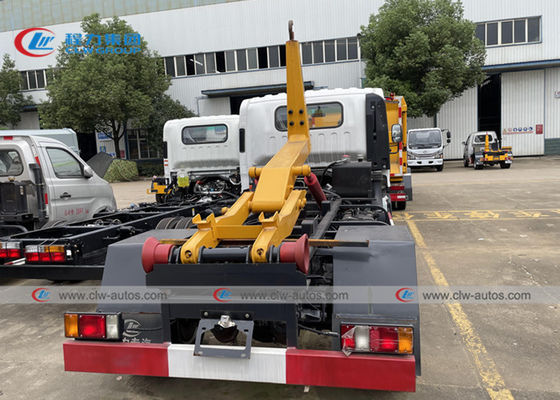

More Pictures for ISUZU 4x2 small 3Tons 2Tons Roll Off Hook Arm Lift Garbage Truck With Detachable Hopper

ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper 0ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper 1ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper 2ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper 3



ISUZU 4x2 3 2 Ton Roll Off Hook Lift Garbage Truck With Detachable Hopper 4

Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Dongfeng 20 tons hook lift arm type garbage truck, using dongfeng 250A13 pull arm special chassis. The cab is full floating hydraulic shock absorption, airbag seat, driving comfort; Engine for large displacement cummins 245 PS, fuel consumption, strong power; The gearbox is fast nine gears (aluminum case 9JS150), so it has less obstacles and better performance. The front and rear Bridges are dongfeng-dena reinforced type with fast speed and strong bearing capacity. Pull arm jacket is our company combine the use of domestic and foreign advanced technology to create a leading product with independent intellectual property rights, independent brand, with the following advantages:



1. Control system: remote control + manual operation, fast and safe, proprietary technology, industry-leading;



2. Hydraulic system: cylinder, pump and valve are specially designed by our company and produced by well-known factories in China, which are matched reasonably and cost-effective; Key parts adopt imported seals, stable performance, reliable quality;





3. Safety protection :(1) the main oil cylinder is equipped with built-in two-way unloading valve, which can effectively reduce the system pressure at the end of stroke and protect the whole hydraulic system and the pull arm for durability; (2) the lifting system is equipped with a balancing device, which can move at a uniform speed without load or heavy load to avoid damage to vehicles or equipment caused by strong impact; (3) two-way overload protection is provided for the hydraulic system and oil lines of each branch. Rated pressure is adjusted according to the actual working conditions of each moving part to effectively avoid the abnormal damage caused by system overload or improper use; (4) explosion-proof locking device is installed in the hydraulic system of oil road to prevent potential safety risks caused by the explosion of oil pipe and ensure the safety of personnel and vehicles; (5) the arm mounting is equipped with the reinforced hydraulic cabinet locking device to ensure the proper use of transport safety.





4. Interlock protection: interlock protection is associated with each action to prevent hydraulic or mechanical failure caused by wrong operation, eliminate safety risks and extend the service life of the vehicle;



5. The pull arm structure is made of high-strength steel with special local treatment, strong bearing capacity and not easy to deform.





6. The upper part of the pull arm is polished and derusted, and painted in multiple processes to ensure that the appearance and color meet the requirements; Pull arm mounting assembly through the special bench test and heavy load load test, to ensure the quality!
