HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsRefrigerated Box Truck

Foton Mini 1T Seafood Delivery Refrigerator Van Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Foton Mini 1T Seafood Delivery Refrigerator Van Truck

Foton Mini 1T Seafood Delivery Refrigerator Van Truck
Foton Mini 1T Seafood Delivery Refrigerator Van Truck Foton Mini 1T Seafood Delivery Refrigerator Van Truck Foton Mini 1T Seafood Delivery Refrigerator Van Truck Foton Mini 1T Seafood Delivery Refrigerator Van Truck Foton Mini 1T Seafood Delivery Refrigerator Van Truck Foton Mini 1T Seafood Delivery Refrigerator Van Truck

Large Image :  Foton Mini 1T Seafood Delivery Refrigerator Van Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: ISO, CCC, SGS, BV, ASME
Model Number: CLW5056A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Naked, Waxed, Bulk ship, Ro-Ro
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Van Material: Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle Drive Model: 4x2/6x4/8x4; As Per Super Structure Size
Wheel Base: 2600mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm Van External Thickness: 1.2mm 1.5mm 1.8mm 2.0mm
Van Interbed Thickness: 80mm 100mm 120mm Van Internal Thickness: 1.2mm 1.5mm 1.8mm 2.0mm
Refrigerator Box Size: 2600*1730*1890 (mm) Refrigerator Model: Chinese Famous Brands
Applicable Temperature: -18~0 Degree, As Customer's Requests Logo And Painting: As Per Customer's Requst
Delivery Time: 30-35 Working Days Warranty: 1 Year
High Light:

Seafood Delivery Refrigerator Van Truck

,

Foton Mini Refrigerator Van Truck

,

1T Refrigerated Box Truck

Good Price Foton Mini 1ton Petrol Seafood and Fish Delivery Refrigerator Van Truck









Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.



Product Specification

General Technical Parameters
Overall Dimension 5200*2250*2400(mm) Gross Vehicle Weight 3300(Kg)
Curb Weight 2300(Kg) Loading Weight 1000(Kg)
Chassis Specification
Chassis parameters Chassis Brand Foton
Cabin Single, Left Hand Driving, with A/C
Engine Model 4 Cylinders
Power 112HP
Emission standard EURO 5
Displacement 2.999L
Fuel type Diesel
Gearbox 5 Forward & 1 Reverse Gear
Front and Rear Axle load 2T/3T
Wheel base 2600(mm)
Overhang( Front/Rear) 1130/1505(mm)
Angle(Approach/departure) 20/16(°)
Brake System Air brake
Steering Gear Power Assistant
Tire 6 Pieces with 1 Spare Tire
Maximum speed 105(km/h)
Superstructure
Van Box size 2600*1750*1800(mm)
Material Fiberglass
Insulating Layer 10cm Polyurethane Foam

Truck refrigeration unit

Brand Famous Chinese Brand
Model BL300
Applicable temperature (ºC) -15~0
Remarks Part Optional: Ventilation slot
Hook
External power supply
Side door

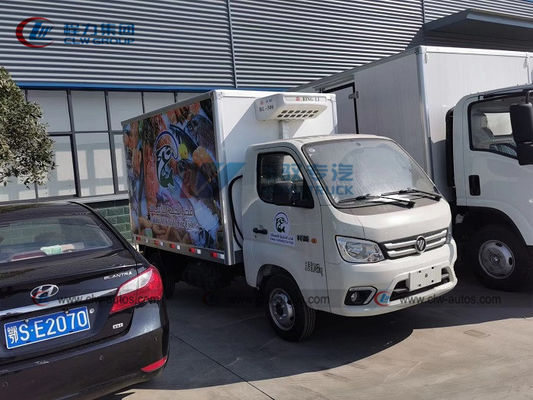

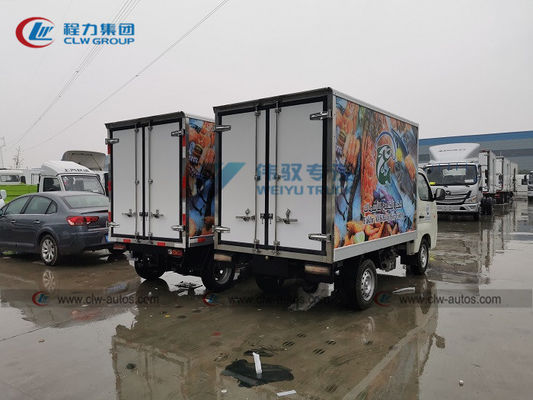

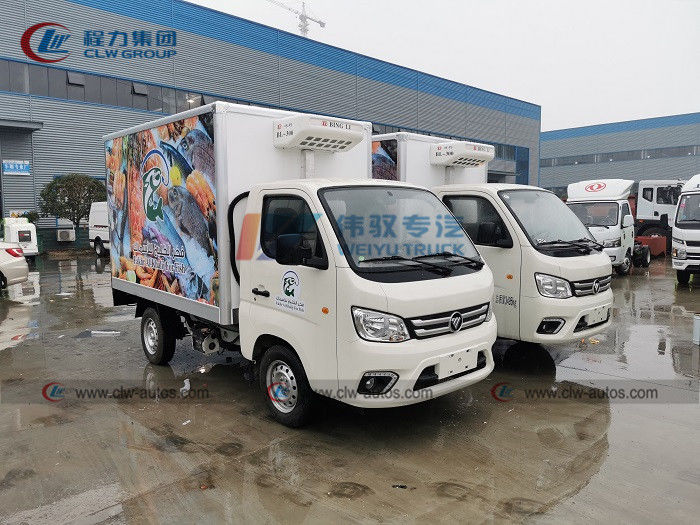

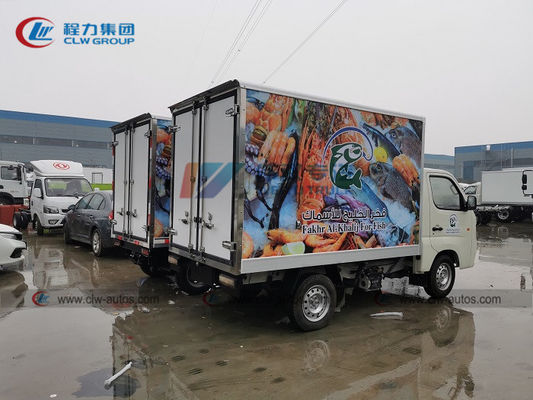

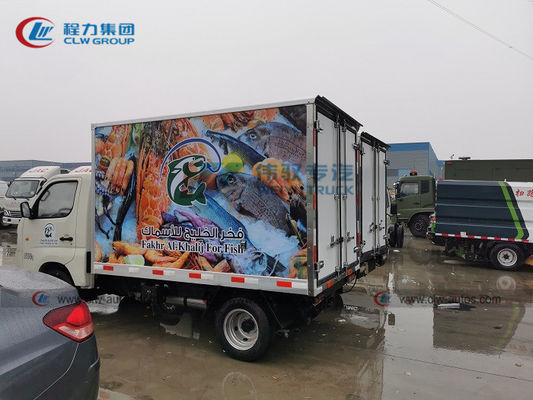

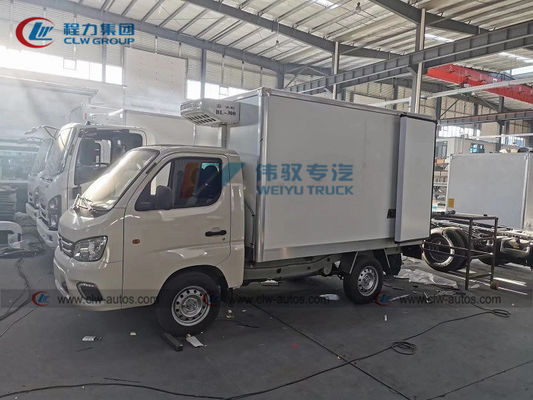

Reference Photos

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 0

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 1

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 2

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 3



Optional Parts

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 4



Different Capacities of Refrigerator Truck

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 5



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Flora for more details+86 13971508969.



FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
