Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer

Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer
Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer

Large Image :  Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: ISO, CCC, SGS, BV, ASME
Model Number: CLW5056A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Naked, Waxed, Bulk ship, Ro-Ro
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Chassis Brand: Dongfeng, Howo, Foton, Isuzu, JMC, Etc. Van Material: Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle
Van External Thickness: 1.2mm 1.5mm 1.8mm 2.0mm Van Interbed Thickness: 80mm 100mm 120mm
Van Internal Thickness: 1.2mm 1.5mm 1.8mm 2.0mm Loading Weight: 3-5 Tons
Refrigerator Model: Thermo King, Carrier, Hanxue, Huatai, Bingli Chassis Brand: Isuzu, Dongfeng, Foton, Howo, Etc.
Drive Model: 4x2/6x4/8x4; As Per Super Structure Size Wheel Base: 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm
Delivery Time: 30-35 Working Days Logo And Painting: As Customer's Request.
Warranty: 1 Year
High Light:

Dongfeng Tractor Refrigerator Semi Trailer

,

50T Refrigerator Semi Trailer

,

Dongfeng 6x4 Refrigerated Tractor Trailer

Dongfeng 6X4 Tractor with 40ton-50ton Transport Freezer Trailer Refrigerator Container Semi Trailer











Product Description

1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Product Specification

Item No. Parameters
Overall Dimension 14600*2550*4000(mm)
Gross Vehicle Weight 25000kg
Curb Weight 8800kg
Wheel Base 3400+1350mm
Gearbox 12 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Engine
Engine horsepower 412HP EURO 2or3
Max Driving Speed 98 km/h
Cabin 2or3 Passengers
Tire 12.00R22.5, 10pcs + 1 spare tire
Carriage Body
Size: 15000*2330*2410(mm)
Body Material Strong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.
Refrigerator High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree.

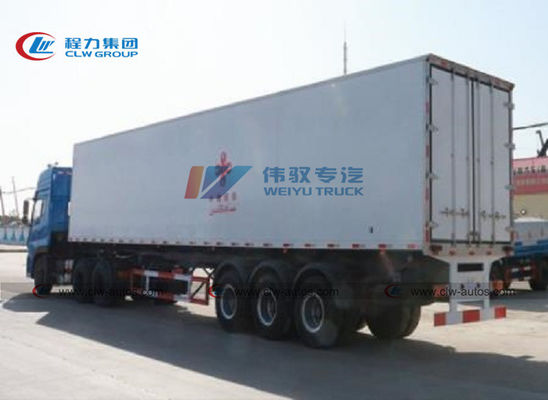

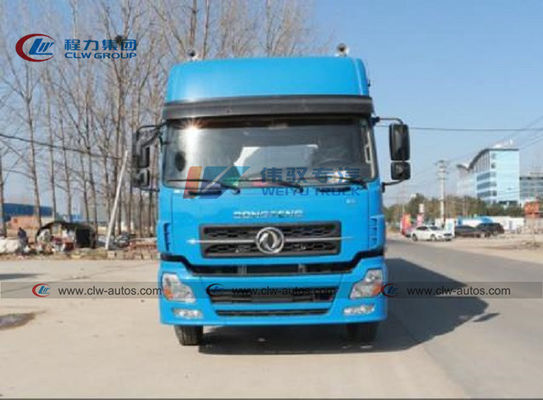

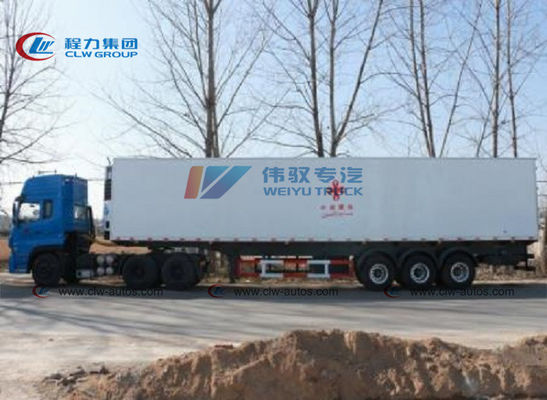

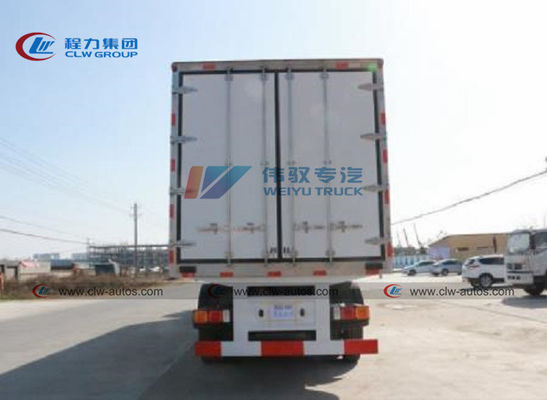

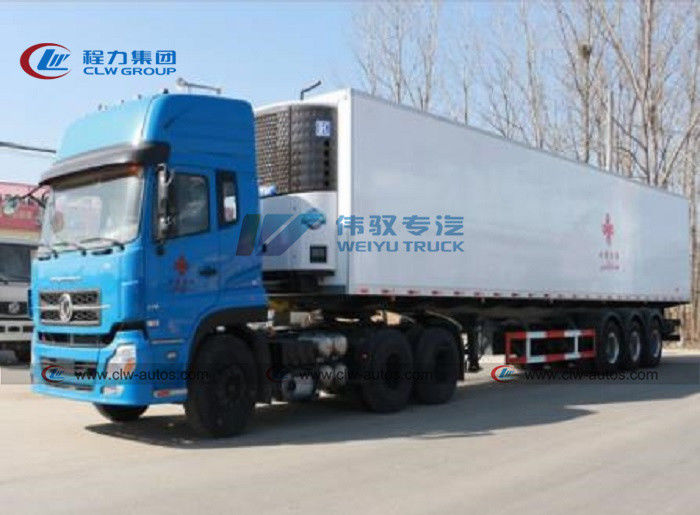

Reference Photos

Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer 0

Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer 1

Dongfeng 6x4 Tractor With 40 - 50T Refrigerator Semi Trailer 2



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Flora for more details+86 13971508969.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
