Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Howo, Foton, Isuzu, JMC, Etc. | Refrigerator Box Size: | 4150*1750*1750(mm) |
|---|---|---|---|
| Van Material: | Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle | Van External Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm |
| Van Interbed Thickness: | 80mm 100mm 120mm | Van Internal Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm |
| Loading Weight: | 3-5 Tons | Refrigerator Model: | Thermo King, Carrier, Hanxue, Huatai, Bingli |
| Chassis Brand: | Isuzu, Dongfeng, Foton, Howo, Etc. | Drive Model: | 4x2/6x4/8x4; As Per Super Structure Size |
| Wheel Base: | 2600mm 3360mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm | Delivery Time: | 30-35 Working Days |
| Logo And Painting: | As Customer's Request. | Warranty: | 1 Year |
| High Light: | Foton Refrigerator Van Truck,4x2 Fresh Food Refrigerator Van Truck,Foton 4x2 Refrigerator Box Truck |
||
Product Description
1. Truck Loading Weight: 6Ton ~8Ton
2. Box Size: 45cubic meters
3. Box Material: Inner & Outter layer fiberglass wall, middle material PE Fom
4. Wall Thickness: 60mm to 80mm
5. Refrigerator: Carrier, Thermo King, Hanxue, others
6. Truck Brand: Foton, Forland
Product Function
Small refrigerated trucks are mainly used for short-distance transportation in urban areas,
such as dairy products delivery, fruit and vegetable delivery and food delivery, etc.
The small refrigerated trucks produced by Chengli Group have good insulation effect and strong overall structure!
Product Specification
| Vehicle | |||
| Chassis | FOTON | ||
| Cabin | 2 Passengers | ||
| Drive | 4 × 2 Left-hand driving or Right-hand driving | ||
| Wheelbase | 3360 mm | ||
| Gross vehicle weight | 8900 kg | ||
| Tyre | Size | 8.25-16 | |
| Quantity | 6+1 Spare | ||
| Brake | Service | Front disc/Rear drum hydraulic brake | |
| Parking | Central drum brake | ||
| Auxiliary | Exhaust brake | ||
| System | ABS (anti-lock brake system) | ||
| Transmission | Gear | 6-Speed (manual) | |
| Steering | Power-assisted | ||
| Auxiliary | Clutch booster | ||
| Engine | Fuel | Diesel | |
| Intake | Turbocharged | ||
| Form | Water cooling | ||
| Cylinder | 4 (In-line) | ||
| Displacement | 3922 ml (EURO IV) | ||
| Max. Power | 130 hp (95 kw) | ||
| Bodywork | |||
| Refrigerated Van | Dimension (internal) | 5070*1970*1920 mm (L*W*H) | |
| Thickness | Roof | 80 mm | |
| Wall | 80 mm | ||
| Floor | 80 mm | ||
| Material | Inner | Glass fiber reinforced plastics (GFRP) | |
| Outer | |||
| Insulation | Material | Polyurethane foam (PUF) | |
| Thickness | 8 mm | ||
| Assembly | Floor | Non-slip checkered plate | |
| Door/lock | Stainless steel | ||
| Seal | Industrial-purpose rubber | ||
| Refrigerator unit | Brand | KAILI | |
| Model | KL-780 | ||
| Temperature | -18~0ºC | ||
| Refrigerants | Model | R404-A | |
| Charge | 1.3 kg | ||
| Refrigeration capacity | |||
| Driven by Truck engine | 0ºC | -18ºC | |
| 3430 w | 1920 w | ||
| Compressor | |||
| Air volume | 1500 m³/h | ||
| Weight (Approximation) | |||
| Evaporator | 16.5 kg | ||
| Condenser | 26.9 kg | ||
| Dimension | |||
| Evaporator | 985*585*180 mm (L*W*H) | ||
| Condenser | 925*430*300 mm (L*W*H) | ||
| Accessories | |||
| Defrosting | Hot gas defrost (Automatically) | ||
| Adjustment device | Electronic digital display | ||
| Safety protect | High and low pressure switch | ||

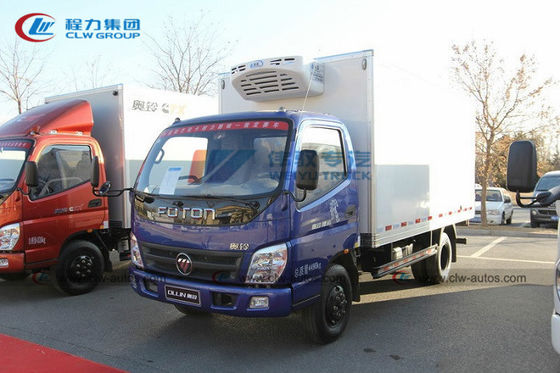

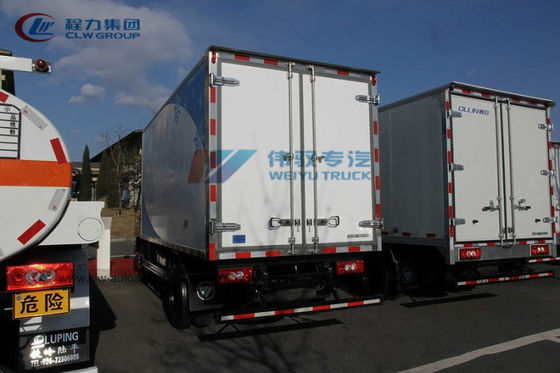

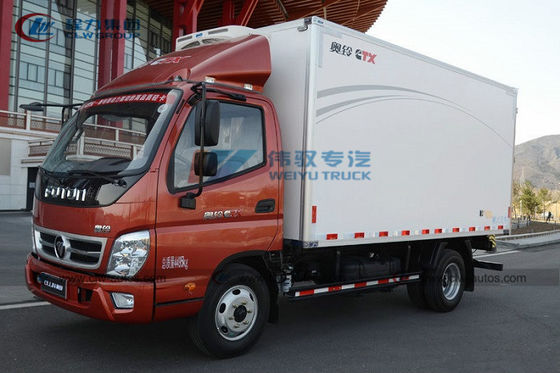

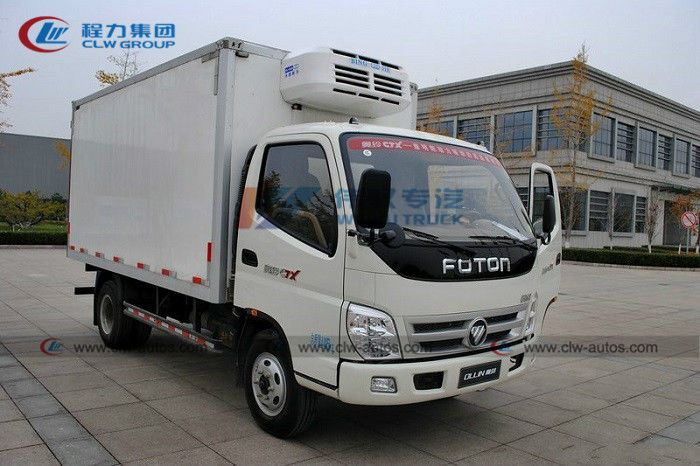

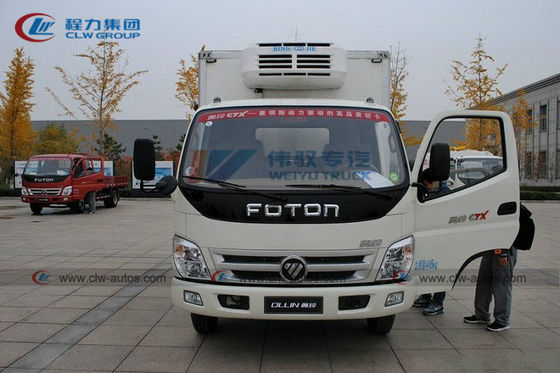

Reference Photos
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
