HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsWaste Removal Trucks

Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck

Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck
Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck

Large Image :  Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20211011

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Material: Carbon Steel, Product Name: Swing Arm, Skip Loader With Garbarge Container/Bin
Drive Type: 4X2 6WHEELS 6 WHEELER Drive Model: Left Hand Drive, Or Right Hand Drive/RHD
Loading Capacity: 8 Tons, 9 Tons, 10 Tons, 8T, 9T. 10T, 12T Truck Brand: Sinotruk HOWO, Dongfeng, Shacman, FAW, FOTON, Jac
Tuck Type: Waste Collection Truck. Refuse Removal Truck Other Equipment: With Hyraulic Systerm
Condition: Dongfeng/HOWO Brand, Brand New Truck Type: Compactor,Rear Loader,Roll Off,carriage Removable Garbage Truck,Rolling Cover Type
Application: Workplace Use,Waste Disposal Collection Truck For Home Use Warranty: 12months For 3 Key Parts
High Light:

Skip Loader Swing Arm Garbage Truck

,

8M3 Swing Arm Garbage Truck

,

Dongfeng 4x2 Skip Loader Garbage Truck

Dongfeng 4X2 8M3 8CBM Skip Loader Roll Rubbish Collection Swing Arm Garbage Truck





Product Description



Goods Description:



Arm swing arm roll garbage truck is transporting all kinds of garbage in residential areas, streets, and the factory,etc. Usually one arm roll arm swing garbage truck can be equipped with many skip loader refuse bin or bucket.



About Our Swing Arm Garbage Truck below:



The utility model has the advantages of simple structure, stable and convenient operation, high-efficiency loading and unloading, and labor saving. The garbage can be equipped with several refuse transfer boxes. The transfer box can be used as a simple, beautiful and environmentally friendly waste transfer station to maximize the efficiency of vehicles.

1. reasonable structure
2. simple and stable operation;
3. High efficiency;
4. Good sealing performance;
5. Easy Loading and unloading;



For more information and inquiry, please contact: Ms. Helen Jiang, Mob/WhatsApp: +86 135 5419 5719.

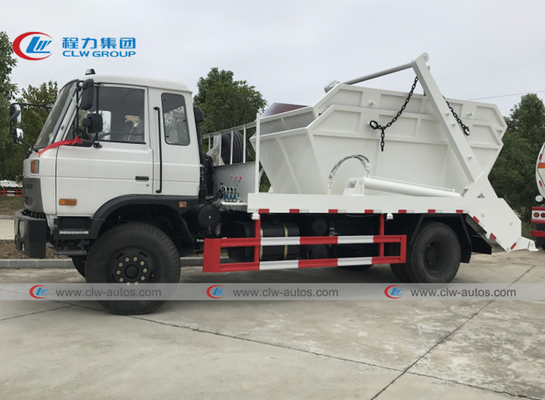

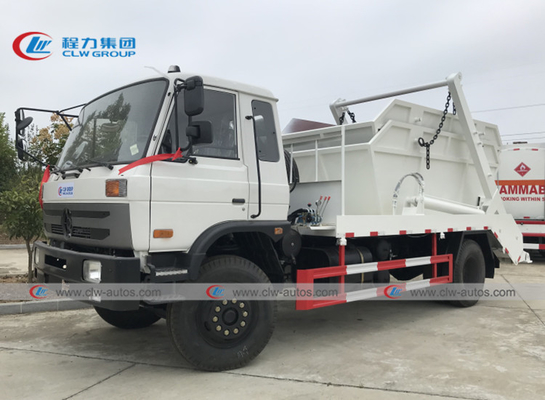

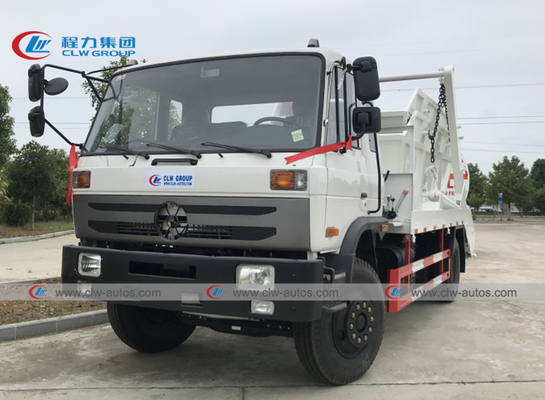

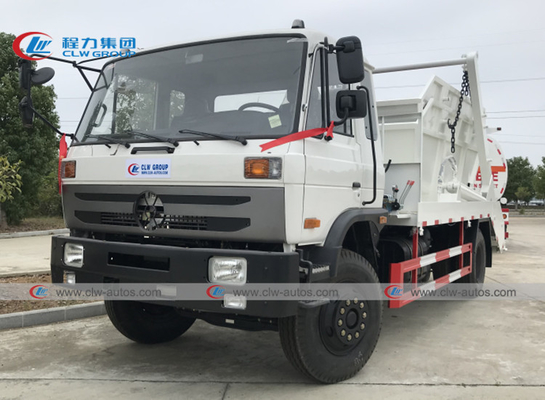

More Detailed pictures of Dongfeng 8CBM Skip Loader Swing Arm Garbage Truck:

Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck 0Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck 1Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck 2Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck 3Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck 4



Specification for Dongfeng 8CBM Skip Loader Swing Arm Garbage Truck:

Vehicle Parameters
Vehicle dimension
7200X2495X3350mm
Curb weight
6300kg
Loading Capacity
8m3


Chassis Parameters
Chassis model
EQ1108KJ
Chassis brand
DONGFENG
Overall dimensions
6975X2462X2690mm
Wheel base
3950mm
Cab
A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Engine
DONGFENG Cummins B170 33
Horse power
170hp
Emission
Euro 3
Displacement
5900ml
Tire
9.00-20 nylon tire
Transmission
6 speed forward 1 reverse
Steering device
Power assisted steering
Steering wheel
Left hand drive
Remark: Other types of chassis as optional
ISUZU, Howo, Shacman, JAC
Swing arm garbage truck structure parameters
Garbage container dimensions
4300X1850X1300mm
Garbage container volume
10 m3
Garbage container material
Carbon steel
Side wall
3mm
Standard Configuration
Chassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins.

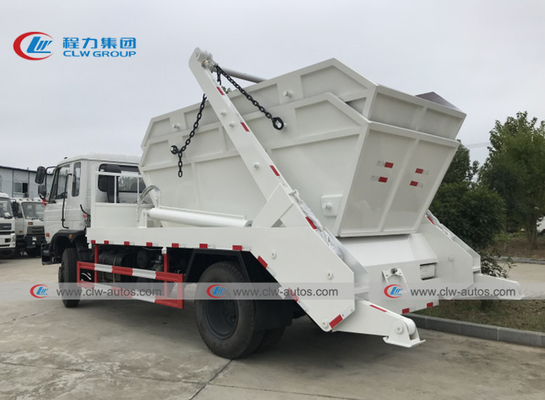

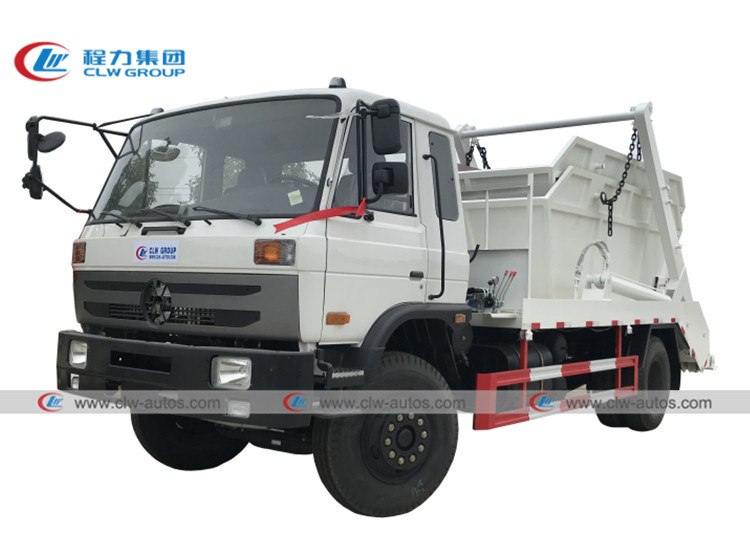

Structures of Dongfeng 8CBM Skip Loader Swing Arm Garbage Truck:



Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck 5Dongfeng 4x2 8M3 Skip Loader Swing Arm Garbage Truck 6



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
