| Driving Model: | LHD,Left Hand Drive,RHD,Right Hand Drive Skip Loader Garbage Truck | Chassis Brand: | HOWO, Dongfeng, Foton, Shacman,ISUZU Skip Loader Garbage Truck |
|---|---|---|---|
| Fuel Type: | Diesel Engine Skip Loader Garbage Truck | Material: | Carbon Steel Skip Loader Garbage Truck |
| Volume: | 4000~5000L,4m3 5m3 Skip Loader Garbage Truck | After-sales Service Provided: | Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service |
| Truck Type: | Roll Arm Garbage Truck,swing Arm Garbage Truck,Skip Loader Garbage Truck | Name: | Skip Loader Garbage Truck |
| Loading Capacity: | 4tons, 4tons, 4t, 5t, Skip Loader Garbage Truck | Wheel Base: | 3950mm Skip Loader Garbage Truck |
| Horsepower: | 170hp 190hp Skip Loader Garbage Truck | ||
| High Light: | LHD Swing Arm Garbage Truck,RHD Swing Arm Garbage Truck,4cbm Skip Loader Garbage Truck |
||
Swing Arm Garbage Truck (also called skip loader truck, skip loader vehicle, skip loader garbage truck, telescopic arm skip loader, multi skip loader truck ), mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.
According to loading and unloading type, garbage truck is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
1. Suitable for short distance garbage transport
2. Change garbage bins flexibly
3. Especially for househould waste removal services in small city, town, village.
Specifications
| General | Dimension | 7350X2480X3250mm |
| Gross weight | 15795kg | |
| Curb weight | 6090kg | |
| Rated load weight | 9510kg | |
| Cab | Type | Flat head, single row, tilting cab |
| Seats | 3 | |
| Equipment | ABS, power assistant steering wheel, center lock, power windows, with air conditioner | |
| Chassis | Model | Dongfeng |
| Wheelbase | 3950mm | |
| Drive wheel | 4X2 | |
| Tire | 9.00R20 | |
| Fuel | Diesel | |
| Gearbox | Manual 6 speed gearbox (6+1) | |
| Engine | Model | Cummins |
| Type | Inline 4-cylinder, Turbocharged inter-cooling | |
| Horsepower | 170hp | |
| Displacement | 4730ml | |
| Emission standard | Euro 2 | |
| Swing arm garbage box | Volume | 4m3/4000liters/4tons |
| Material | Q235 carbon steel | |
| Thickness | 5-6mm | |
| Control system | Hydraulic |

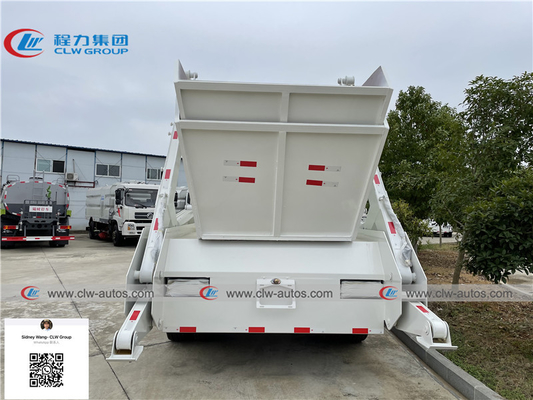

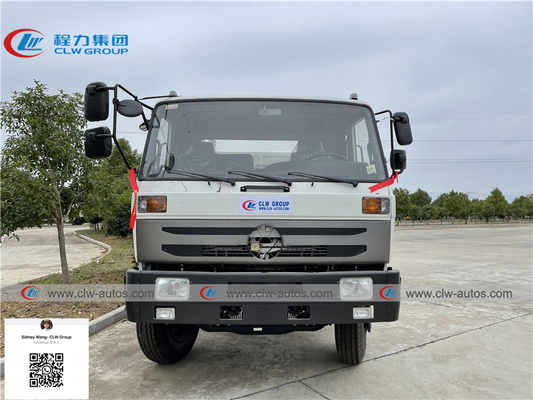

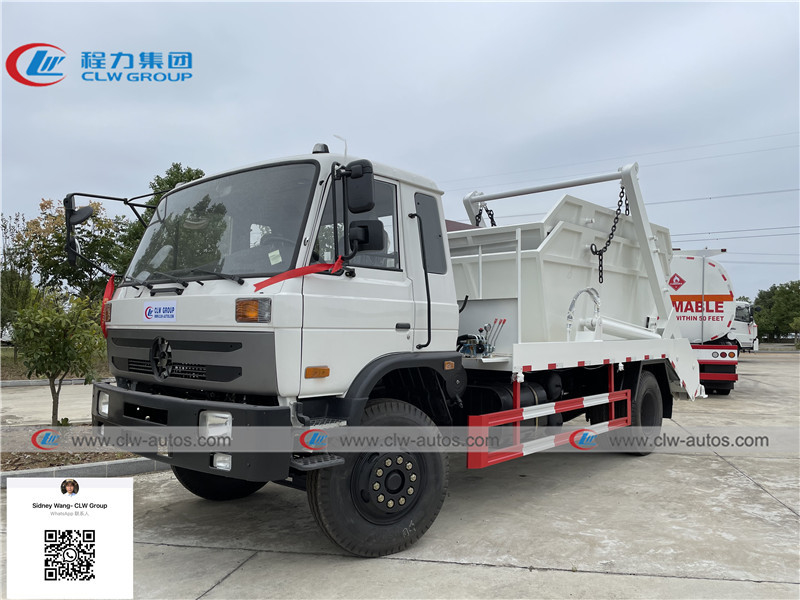

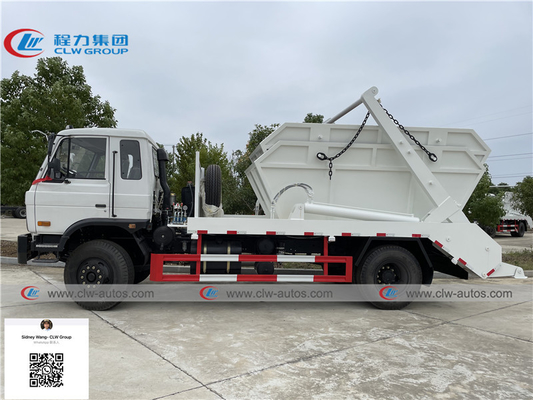

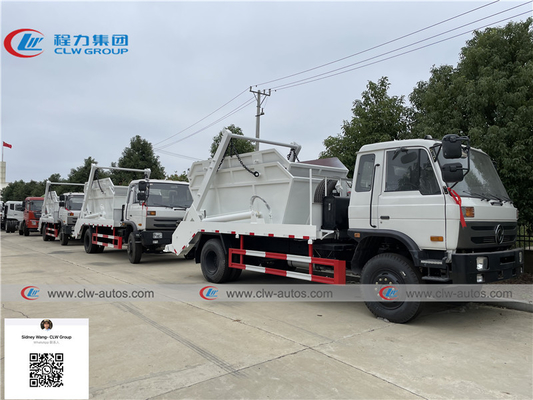

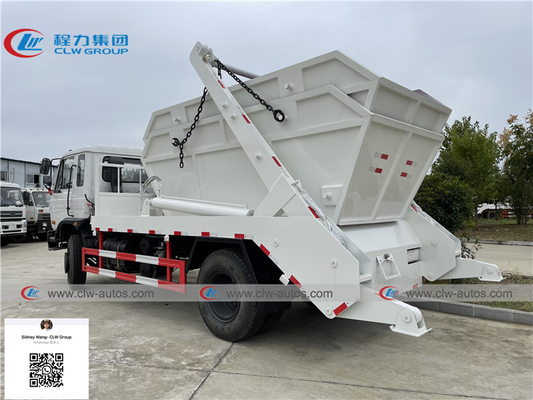

Reference photos
Truck diagram
Truck drawing
Truck details
Working show
Factory overview
Overseas exhibition and local visit
Customer Visiting
Other trucks we can supply
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
