Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Carbon Steel | Thickness: | 5 Mm |
|---|---|---|---|
| Fuel: | Diesel | Driving Type: | 4*2, Left/right Hand Driving |
| Pump: | China Famous Brand/International Brand | Suction Height: | 7 Meters |
| Water Canon Range: | 30 Meters | Sprinkling Width: | 14 Meters |
| Operating Video: | Yes | Use Manual: | Yes |
| Front Spray And Rear Spray: | Yes | Warranty: | One Year |
| LOGO: | As Per Customer's Request | ||
| High Light: | 15000L Water Bowser Truck,12000L Water Bowser Truck,Dongfeng 153 Model Water Sprinkler Truck |
||
Dongfeng 153 model 12000liters 15000liters water bowser truck water sprinkler truck water spraying tank truck
Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.
The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
Description
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacman;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
Specification
| Technique parameter | |||
| Name | Dongfeng 153model water bowser truck | L×W×H mm | 8500×2420×3100(mm) |
| Chassis Model | EQ5072 | Water tank Dimension(mm) | 4600×2200×1500(mm) |
| GVW | 18800(Kg) | Approach/Departure angle | 16/8(°) |
| Loading capacity | 12050(Kg) | front/rear suspension | 1365/2435(mm) |
| curb mass | 6750(Kg) | Max. speed | 85(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
ISDe185 30 |
Dongfeng Cummins Engine Co., Ltd. | 6700 | 136 |
| Emission standards | GB17691-2005Euro3,GB3847-2005 | ||
| Axle | 2 | front tread | 1900/1800(mm) |
| Wheelbase | 4700 | rear tread | 1800(mm) |
| Tyre | 6 | tyre size | 9.00-20,9.00R20,10.00-20,10.00R20 |
| Fuel type | diesel | spring | 10/10+8 |
| Axle load | 5900/9900 | cab passenger | 3 |
| Note | Tank capacity: 12-15m³ | ||

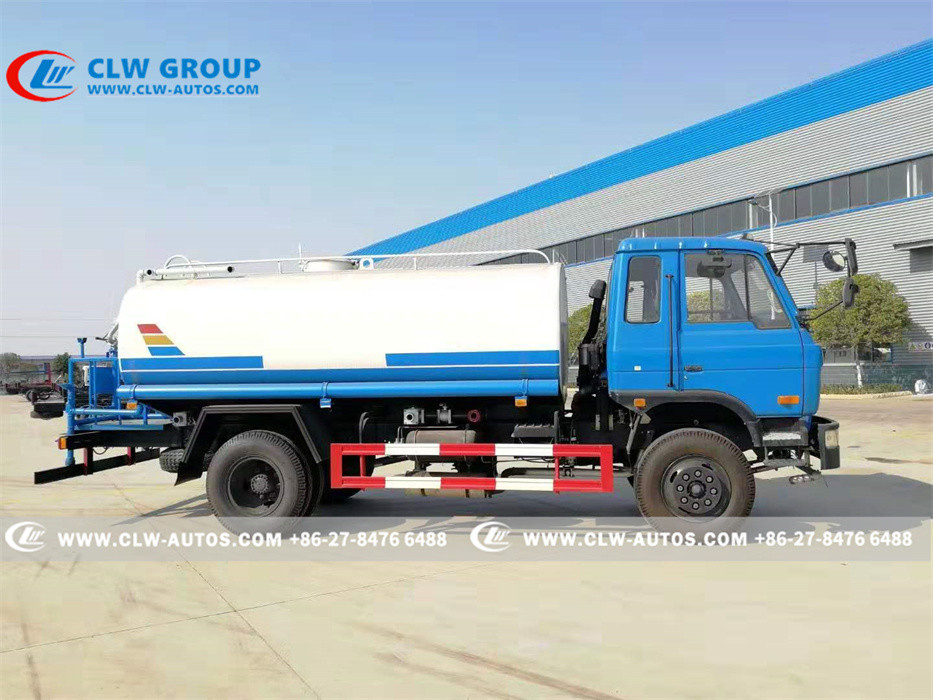

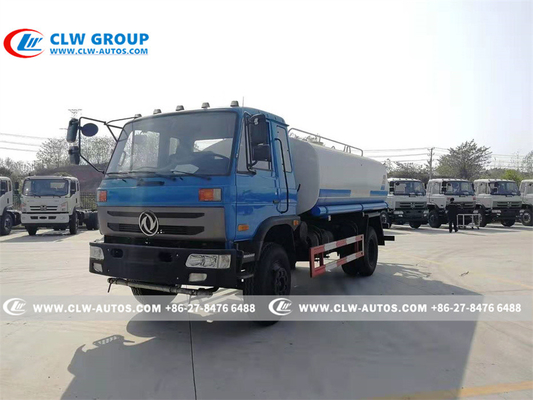

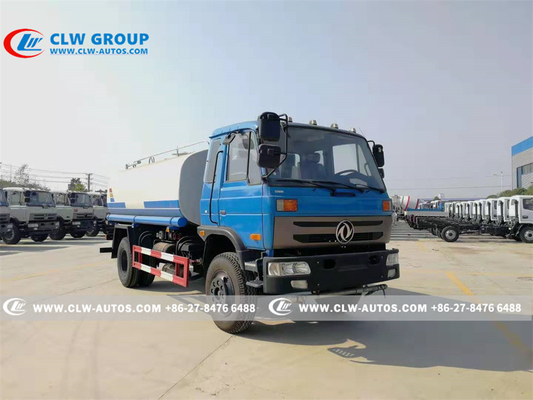

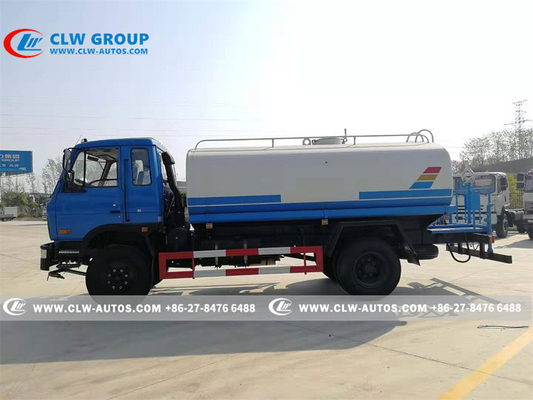

Reference photos
Water Truck Diagram
Working Show
Truck Details
Water bowser truck production line:
After-Sale Service :
We will shoot detailed operation videos for customers on how to use the sprinkler and the precautions for car maintenance. The truck is equipped with some basic wearing parts, which is convenient for later use and replacement. We Provide a one-year warranty period, and provide factory-price accessories for life (the freight is paid by the customer).
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
