HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsRefrigerated Box Truck

10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck

10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck
10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck

Large Image :  10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: ISO, CCC, SGS, BV, ASME
Model Number: CLW5695

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Naked, Waxed, Bulk ship, Ro-Ro
Delivery Time: 25-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Chassis Brand: Dongfeng, Howo, Foton, Isuzu, JMC, Etc. Van Material: Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle
Van External Thickness: 1.2mm 1.5mm 1.8mm 2.0mm Van Interbed Thickness: 80mm 100mm 120mm
Van Internal Thickness: 1.2mm 1.5mm 1.8mm 2.0mm Loading Weight: 10-15tons
Refrigerator Model: Thermo King, Carrier, Hanxue, Huatai, Bingli Chassis Brand: Shacman, Isuzu, Dongfeng, Foton, Howo, Etc.
Drive Model: 4x2/6x4/8x4; As Per Super Structure Size Wheel Base: 3300mm 3800mm 4200mm 4500mm 4700mm 5200mm; 4300+1350mm; 1350mm+4300+1350mm
Delivery Time: 25-30 Working Days Logo And Painting: As Customer's Request.
Warranty: 1 Year
High Light:

Shacman L3000 Refrigerated Van Truck

,

15T 30cbm Refrigerated Van Truck

,

Shacman L3000 Refrigerated Box Truck

10tons 15tons 30cbm Shacman L3000 4x2 Refrigerated Van Truck with Carrier hanxue Thermo King Freezer Unit

Product Description
Refrigerated truck is widely used to transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables, vaccine and drug transporter (vaccine truck), etc


Our refrigerated trucks collected special imported thermal insulation material. The water absorption rate of the insulation board is ≤ 1. The heat conduction coefficient is ≤ 0.028 W/mk, and the compressive acuity ≥ 150 kpa with density 30 ~ 45 kg/m3, using the most advanced fifth-generation closed polyurethane plate bonding structure. The load plate surface materials are optional, such as reinforced fiber glass, stainless steel, aluminum alloy, choi steel, etc.

The body box after molding has advantage of light quality, high coefficient of heat preservation, strong impact resistance, no leakage and good corrosion resistance against the atmosphere, water, acid, alkali, salt and other medias.

Product specifications

Item unit parameter
Vehicle model   Shacman 4x2 left or right hand drive Refrigerated Van Truck
Chassis model   Shacman L3000
Overall dimensions mm 8995×2600×3980
Body internal dimensions 6640×2440×2420
Actual load kg 10000-15000
Mass in working order Appro×7880
Wheel base mm 4500-5200
F/R track base 1940/1800
Approach/departure angle ° 19/10
Exhaust/kw ml/kw 4580/155 (210HP)
Max speed km/h 95
Fuel type Diesel Engine MC05.21-50
Number of axles 2 Axle load 6500/11500
Number of tires 6+1 Tire specification 10.00R20
Configuration

Refrigerator unit is Hanya or Thermo King, working temperature is minus 18 celsius degree.

The material of the van surface is FRP, 8 cm thick PU inside.

Introduction The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts.
Production cycle 25-30 working days
Warranty 12 month,from the date of supply

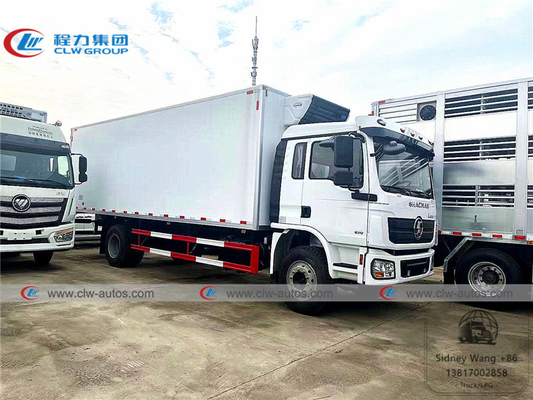

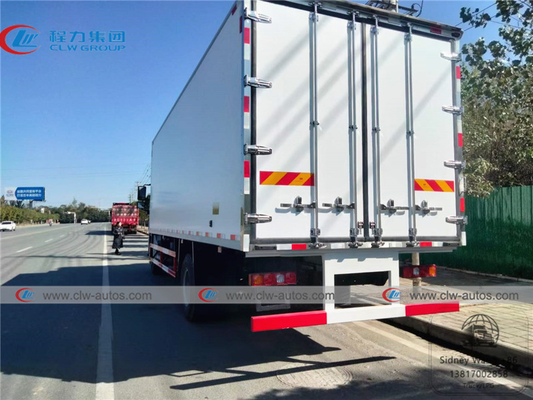

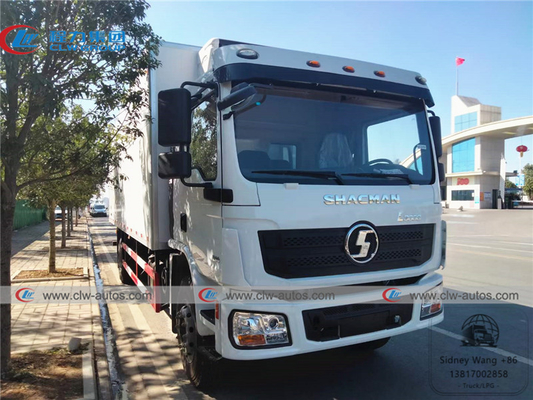

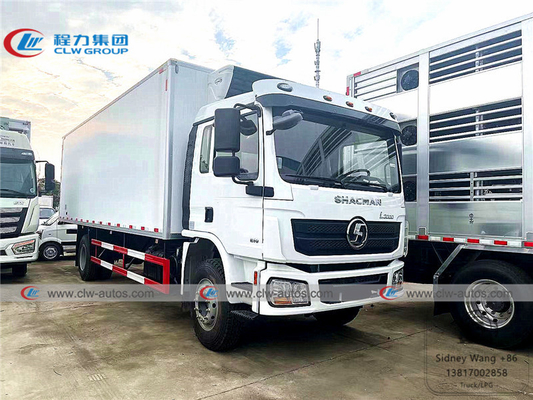

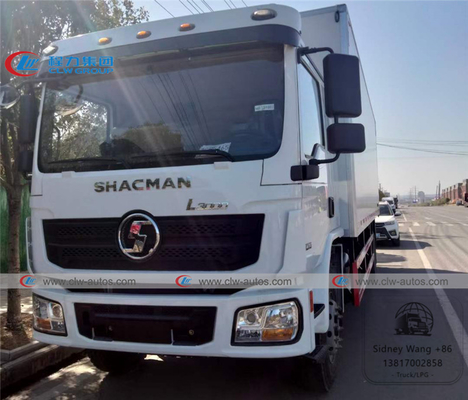

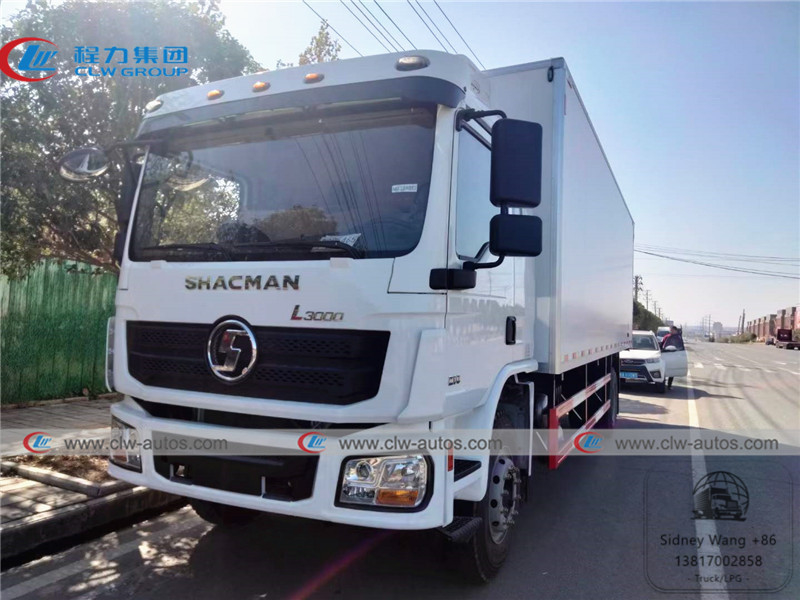

Product pictures

10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 0

10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 110T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 210T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 3





10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 4



Factory overview

10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 5

10T 15T 30cbm Shacman L3000 4x2 Refrigerated Van Truck 6



Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
