4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

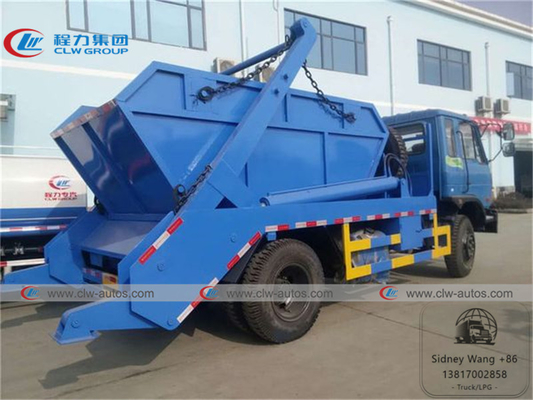

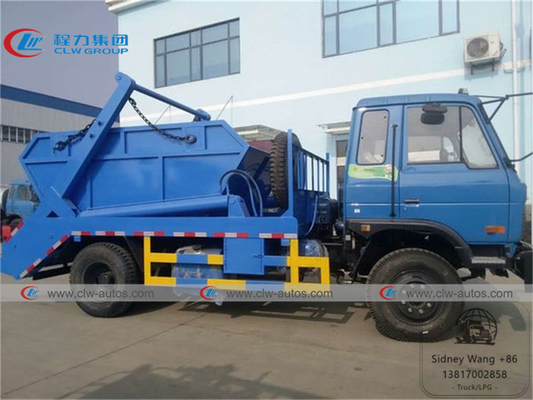

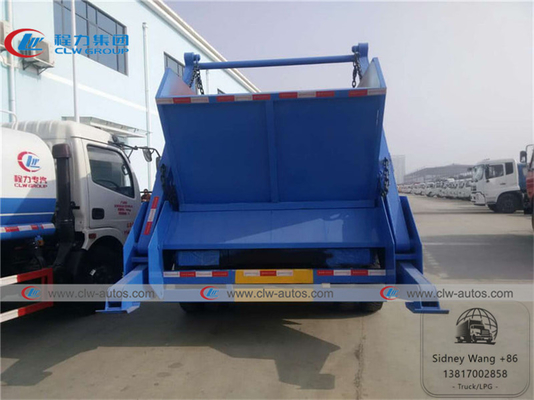

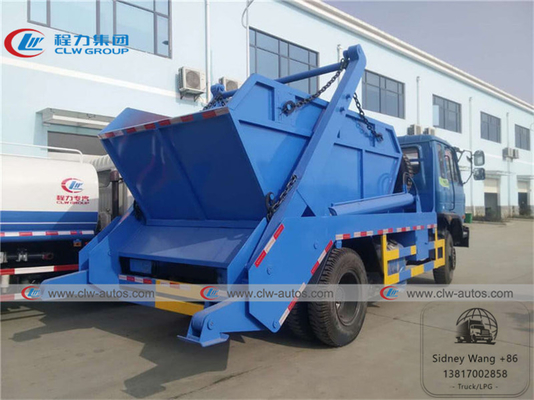

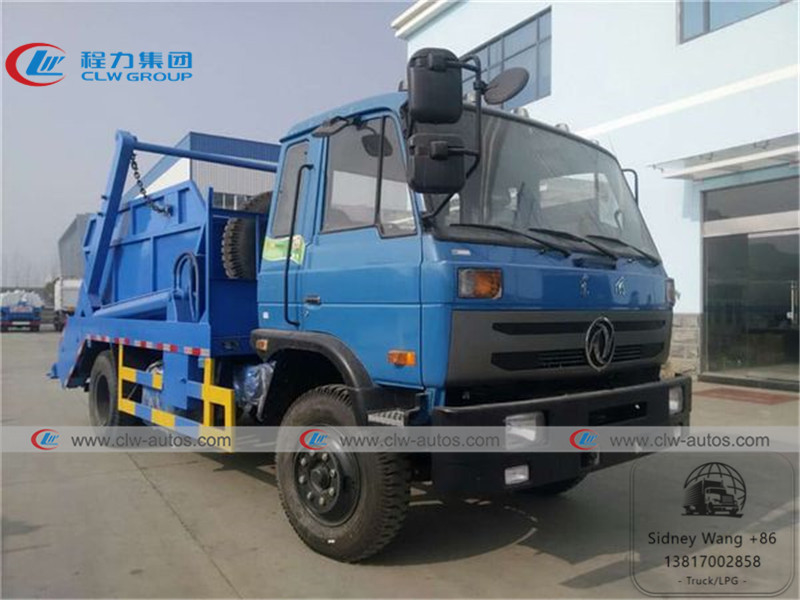

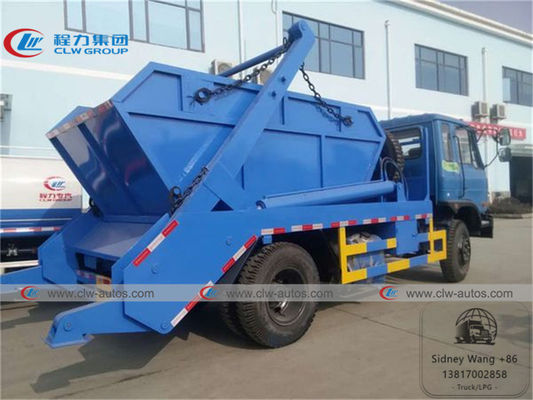

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain
4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain

Large Image :  4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC ISO
Model Number: CLW5717

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 15840~24520 usd/unit
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Driving Model: LHD,Left Hand Drive,RHD,Right Hand Drive Skip Loader Garbage Truck Chassis Brand: HOWO, Dongfeng, Foton, Shacman,ISUZU Skip Loader Garbage Truck
Fuel Type: Diesel Engine Skip Loader Garbage Truck Material: Carbon Steel Skip Loader Garbage Truck
Volume: 4000~5000L,4m3 5m3 Swing Arm Garbage Truck After-sales Service Provided: Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service
Truck Type: Roll Arm Garbage Truck,swing Arm Garbage Truck,Skip Loader Garbage Truck Name: Skip Loader Garbage Truck
Loading Capacity: 8tons, 10tons, 9tons, 8t, 9t, 10t Skip Loader Garbage Truck Wheel Base: 4200mm Skip Loader Garbage Truck
Horsepower: 170hp 190hp Skip Loader Garbage Truck
High Light:

4cbm Swing Arm Garbage Truck

,

4x2 Dongfeng Swing Arm Garbage Truck

,

Dongfeng Self Loading Garbage Truck

4cbm 4tons Self Loading Dongfeng Swing Arm Garbage Trucks with Hanging Chain and Hydraulic Lifting waste removal truck



Description

Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.

According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.

Specification



Brand Dongfeng Dolika
Engine Power &
Transmission
Engine Model YC4D140-20
Engine Brand Yuchai Diesel Engine Co., Ltd
Fuel Type Diesel
Displacement / Power 4212ml / 103kw, 140HP
Engine Type Turbocharged inner cooled, water cooling, four cylinder inline.direct injection
Rated Speed 2500rpm
Max Torque 420N.m
Max torque(N.m/rpm) 1600-1900rpm
Emission Stand Europe III
Fuel tank capacity (L) 200
Number of speeds, 6 Forward, 1 Reverse
Chassis Chassis Type EQ1080SJ8BDC
Dimension (LxWxH) 6740x 2100 x 2390mm
Chassis Weight(kg) 3195
Wheelbase (mm) 4200
Drive Type 4X2
No. of Axles 2
Cab seats 3 + 1 berth
Max Speed(km/h) 90
Tire 7.50R16 Radial tyre
Tire No.'s 6+1 spare
Track width F/R (mm) 1740/1610
Chassis load (kg) 3310 / 4695
Front/Rear suspension 1130/1810
Appr/Dep Angle (°) 20/14
Service brake type Compressed air brake
Parking brake type Spring energy, compressed air operating on rear wheels
Aic Condition Yes
Weight & Dimension
(With van box)
Gross Vehicle Weight(kg) 9950
Curb Weight(kg) 4750
Rated Weight / load(kg) 5200
Wheelbase(mm) 4200
Front/Rear suspension 1130/1770
Appr/Dep Angle (°) 20/13
Ground Clearance (mm) >=220
Overall Dimension(mm) 6700×2150×2950
(length ×width×height )
Upper Structure
Configuration
Skip loader dimension(mm) 3170x1650x1250, the shape can be adjusted as per special request
(length ×width×height at side)
Skip loader Capacity 4 ton, 5 cbm
Material of skip loader Q235B high quality carbon stell
Thickness of skip loader Bottom 4mm, side 3mm
Oil cylinder Hydraulic oil cylinder, 2 sets
Loading medium House hold waste (not including construction waste)
Production lead time 30-45 days
Remark 1. With power assisted steering, A/C, spare tyre, hydrlic telescopic jack, wheel brace etc tools.
2. If with Euro IV emission standard engine of YC4S150-48 150HP, the price need to upcharge usd2700/set.



Reference photos

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 04x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 1

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 24x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 3

Truck diagram

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 4



Truck drawing



4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 5



Truck details

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 6

Working show

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 7

Factory overview

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 8

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 9



4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 10

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 11

Overseas exhibition and local visit

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 12



Customer Visiting

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 13

Other trucks we can supply

4x2 Dongfeng 4cbm Self Loading Swing Arm Garbage Truck With Hanging Chain 14

Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
