Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Howo, Foton, Isuzu, JMC, Etc. | Van Material: | Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle |
|---|---|---|---|
| Van External Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Van Interbed Thickness: | 80mm 100mm 120mm |
| Van Internal Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Loading Weight: | 10-15tons |
| Refrigerator Model: | Thermo King, Carrier, Hanxue, Huatai, Bingli | Chassis Brand: | Shacman, Isuzu, Dongfeng, Foton, Howo, Etc. |
| Drive Model: | 4x2/6x4/8x4; As Per Super Structure Size | Wheel Base: | 3300mm 3800mm 4200mm 4500mm 4700mm 5200mm; 4300+1350mm; 1350mm+4300+1350mm |
| Delivery Time: | 25-30 Working Days | Logo And Painting: | As Customer's Request. |
| Warranty: | 1 Year | ||
| High Light: | FOTON Auhawk Refrigerator Van Truck,4x2 10T Refrigerator Van Truck,FOTON Auhawk Refrigerator Box Truck |
||
Product Description
Refrigerated truck is widely used to transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables, vaccine and drug transporter (vaccine truck), etc
Our refrigerated trucks collected special imported thermal insulation material. The water absorption rate of the insulation board is ≤ 1. The heat conduction coefficient is ≤ 0.028 W/mk, and the compressive acuity ≥ 150 kpa with density 30 ~ 45 kg/m3, using the most advanced fifth-generation closed polyurethane plate bonding structure. The load plate surface materials are optional, such as reinforced fiber glass, stainless steel, aluminum alloy, choi steel, etc.
| FOTON 10Tons Refrigerator Van Truck | |
| Model | CLW5856 |
| Overall Dimension | 8900*2600*3900mm |
| Freezer Box | 6600*2435*2500mm |
| Material of Freezer Box |
Outer plate: FRP plate Middle: PU foam thermal insulation meterial Inside plate: FRP plate |
| Temperature range | -16ºC~0ºC |
| Refrigeration unit | HANXUE Z-L60( Thermo king is optional) |
| Gross Weight | 18000kg |
| Curb Weight | 7850kg |
| Rated Weight | 10020kg |
| Payload | 10tons |
| Engine | F4.5NS6B220, 220HP diesel engine, 4-cylinder in line, turbocharged intercooled |
| Wheelbase | 5150mm |
| Tires: | 6+1, 11.00R20 tires |
| Cabin | 3 seats |
| Transmission | Manual, 8 front and 1 reverse |
| Brake | Full air brake |
| Max Speed | 90km/h |

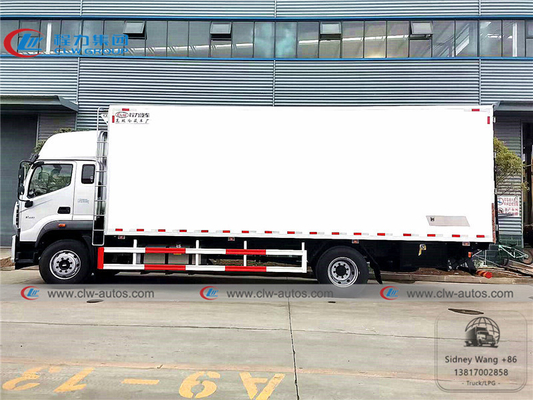

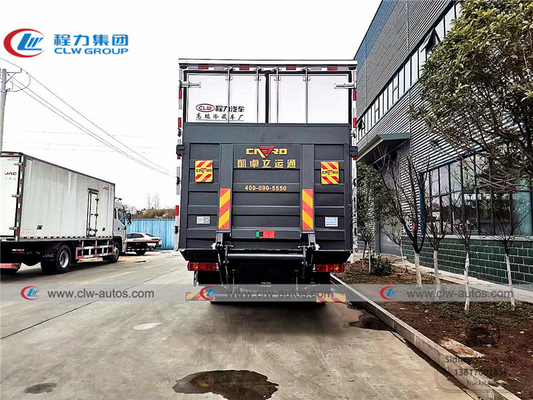

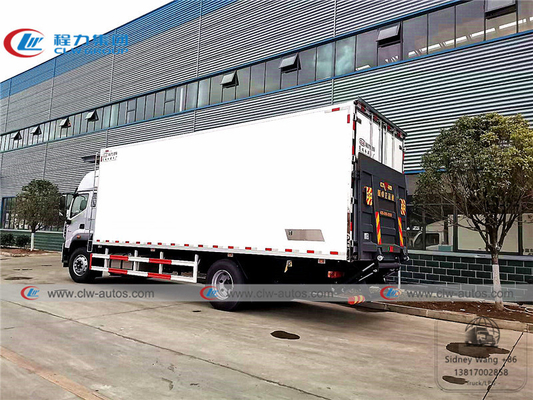

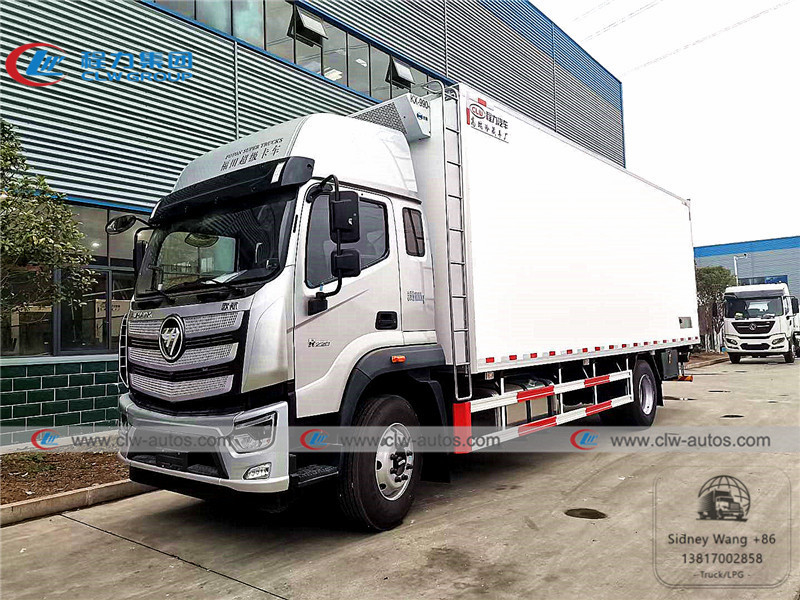

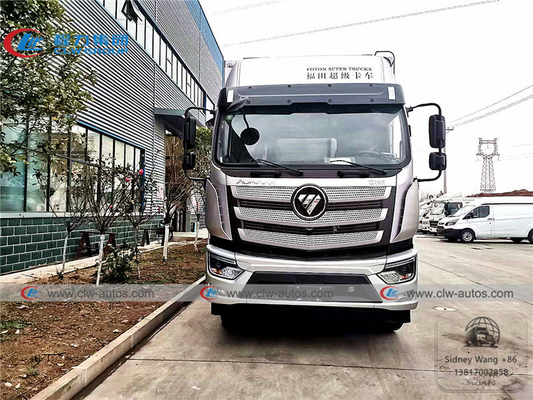

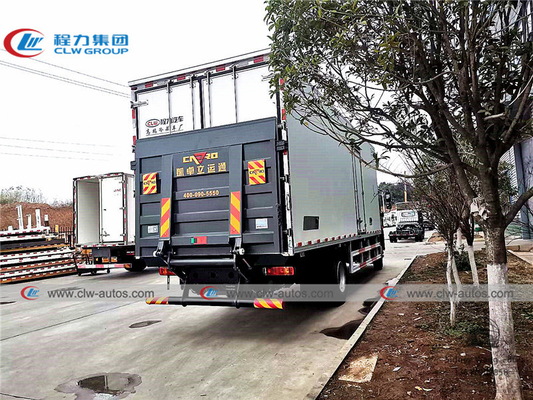

Product pictures
Factory overview
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
