Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Howo, Foton, Isuzu, JMC, Etc. | Van Material: | Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle |
|---|---|---|---|
| Van External Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Van Interbed Thickness: | 80mm 100mm 120mm |
| Van Internal Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Loading Weight: | 3-5 Tons |
| Refrigerator Model: | Thermo King, Carrier, Hanxue, Huatai, Bingli | Chassis Brand: | Isuzu, Dongfeng, Foton, Howo, Etc. |
| Drive Model: | 4x2/6x4/8x4; As Per Super Structure Size | Wheel Base: | 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm |
| Delivery Time: | 30-35 Working Days | Logo And Painting: | As Customer's Request. |
| Warranty: | 1 Year | ||
| High Light: | Dongfeng Refrigerated Delivery Truck,4x2 3T Refrigerated Delivery Truck,Refrigerated Box Truck For Livestock |
||
5. Refrigerated Truck payload available 1.5T, 2T, 3T, 5T, 7T, 10T, 12T, 20T...
| Main parameters | 4*2 dongfeng 3tons small seafood refrigerated truck freezer truck | ||
| Product | Dongfeng 4x2 refrigerated truck | ||
| Gross weight (kg) | 4595 | Overall dimensions(mm) | 5995*2285*3250 |
| Loading weight(kg) | 2000-3000 | Cargo Dimension(mm) | 4200*2050*2100 |
| Curb weight(kg) | 2500 | Allowable passengers in cab | 2,3 |
| Approach/Departure Angle(°) | 19/10 | Front / rear suspension(mm) | 1032/1663 |
| Number of axles | 2 | Wheelbase (mm) | 3,300 |
| Axle-load(Kg) | 2385/4110 | Max speed(km/h) | 90 |
| Chassis parameters | |||
| Chassis model | EQ1060 | ||
| Brand | Dongfeng | Manufacturer | Dongfeng liuqi |
| Overall dimensions | 4220×1940×2080 | Tire number | 6 |
| Approach/Departure Angle(°) | 19/15 | Tire specification | 6.00-16 |
| Number of Spring leafs | 8/9+5,6/8+4 | Front tread(mm) | 1,506 |
| Fuel type | diesel | Rear tread(mm) | 1,466 |
| Emission standard | EuroIII | ||
| Engine model | Manufacturer | Displacement(ml) | Power |
| CY4102-C3F | Dongfeng Chaoyang Diesel Engine Co.,Ltd | 3856 | 90KW/120HP |
| Others | with air conditioner | ||
| Refrigerated Truck Body Specification | |||

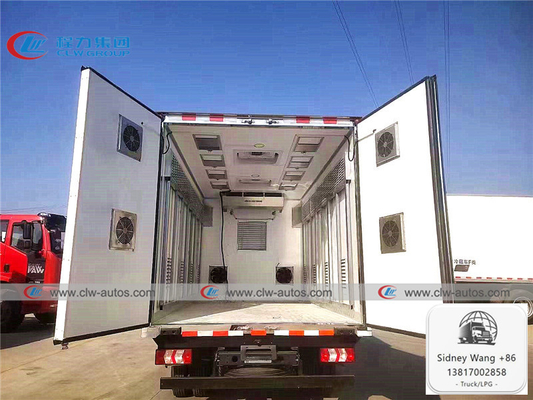

| Refrigerated truck bodies adopt FRP sheet in two sides and Polyurethane foam in the core. The truck bodies equipped with double rear door in back. With side door. |
|||

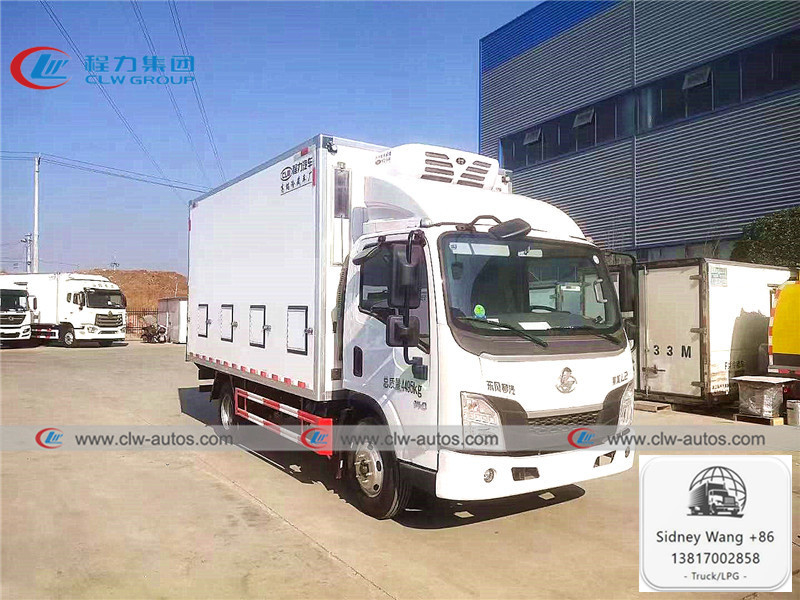

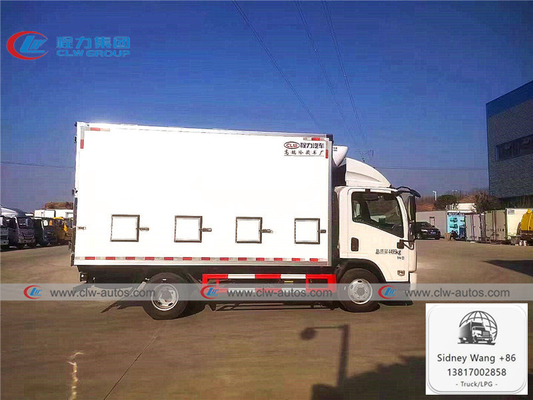

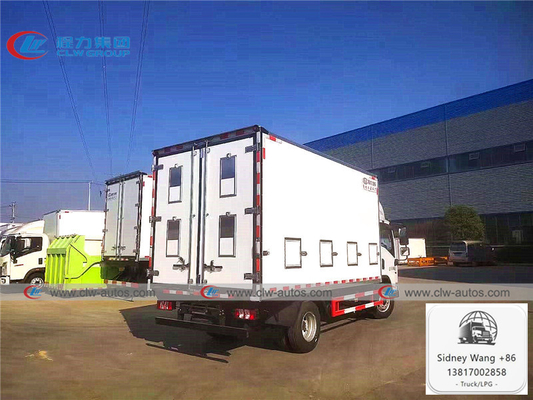

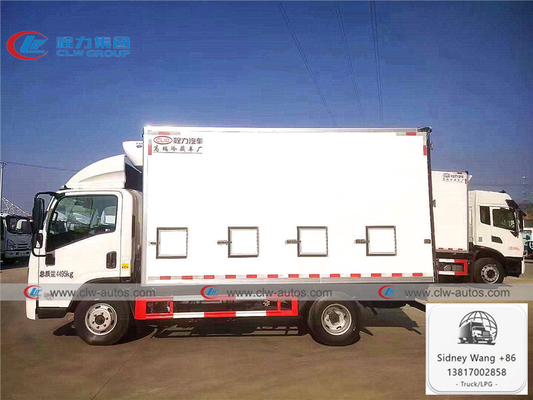

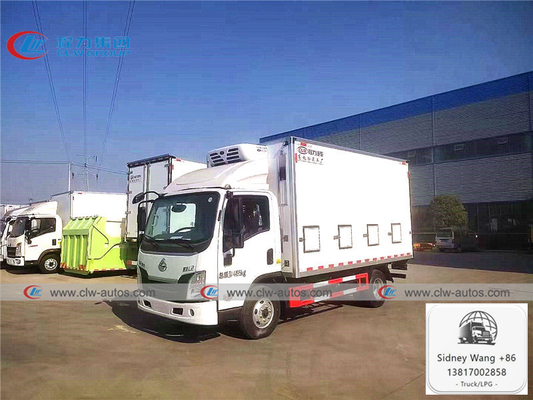

Product Show
Factory overview
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
