Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | Dongfeng,HOWO,SHACMAN,JAC,JMC,ISUZU,FOTON | Material: | Carbon Steel Q235B |
|---|---|---|---|
| Thickness: | Side 3mm, Button 4mm | Garabge Container Size: | 10cbm,10m3,10000liters |
| Horsepower: | 140HP | Engine: | Diesel Engine, Cummins Brand |
| Warranty: | One Year For Major Parts | Spare Parts: | Factpry Price Whenever Needed |
| Operation Video: | Yes | Live Operation Guidance: | Yes |
| User Manual: | Yes | Color&Logo: | Customized LOGO |
| Service: | Life Long After Sale Service | ||

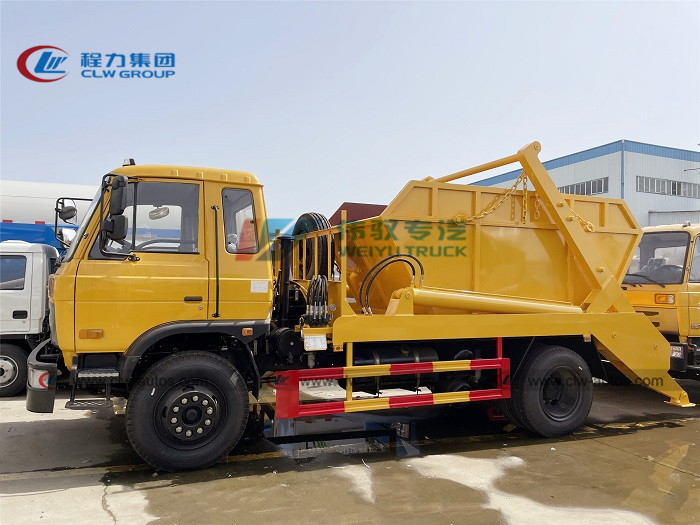

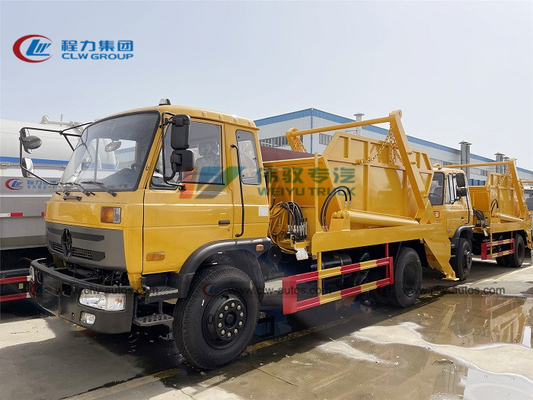

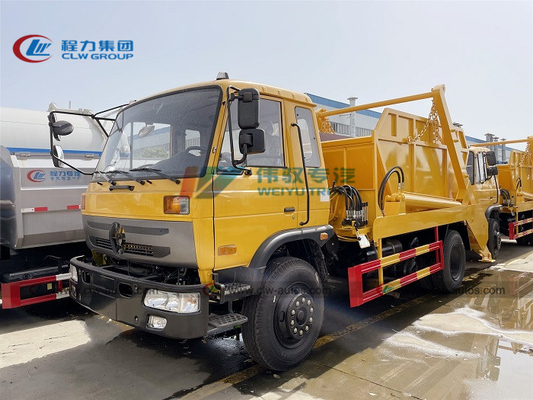

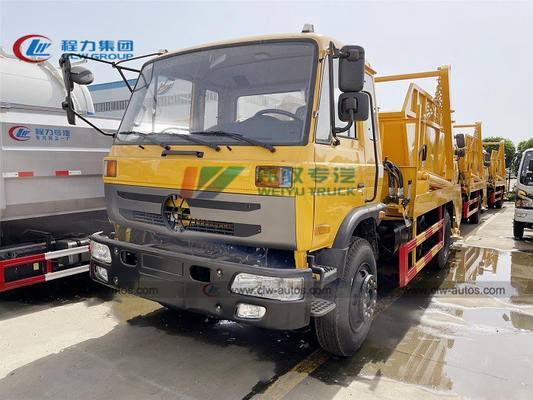

| High Light: | 10m3 Refuse Skip Loader Truck,Euro3 Refuse Skip Loader Truck,10cbm Rear Load Garbage Trucks |
||
| Drive type | 4*2, New condition, LHD&RHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 7060×2140×2350 | |
| Wheel base (mm) | 4200 | ||
| Track front/rear mm | 1110/1750 | ||
| F/R Axle-Load | 3220/5200 kg, | ||
| Approach/departure angle | 18/14 | ||
| Curb weight | 3015 kg | ||
| GVW | 8420kg | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Yuchai,Brand,Diesel ENGINE | |
| Model | YC4E140-31 | ||
| Type | 4 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 140 | ||
| Emission standard | Euro3 | ||
| Gearbox | 8 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 7.50-16,8.25-16 Nylon tyre, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Upper Body | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 10 CBM | ||
|
Remarks |
1. Color is optional 2. Customized LOGO painting as per customer's request |
||
Our Factory
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty of garbage truck?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
