Hydraulic Operation Waste Management Garbage Truck 5-6m3 5-6cbm

All Products

LPG Gas Tanker Truck (109)

LPG Gas Storage Tank (154)

Fuel Delivery Truck (151)

Garbage Compactor Truck (169)

Waste Removal Trucks (93)

Road Sweeper Truck (66)

Vacuum Suction Truck (144)

Water Bowser Truck (102)

Refrigerated Box Truck (90)

LED Billboard Truck (32)

Wrecker Tow Truck (77)

Aerial Lift Truck (38)

Truck Mounted Telescopic Crane (82)

Fire Brigade Truck (67)

Ready Mix Concrete Mixer Trucks (24)

Heavy Duty Dump Truck (28)

Tanks Trucks And Trailers (174)

Prime Mover Truck (21)

Best Products

Dongfeng 4X2 8 10 12 15m3 Swing Arm Skip Loader Garbage Truck

I'm Online Chat Now

Minimum Order Quantity:	1 UNIT
Price:	negotiable
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	30 days after received advance payments
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Driving Model:	LHD&RHD	Chassis Brand:	HOWO, Dongfeng, Foton, Shacman,ISUZU Swing Arm Garbage Truck
Fuel Type:	Diesel	Material:	Carbon Steel
Volume:	5000~16000L,5m3,6m3	After-sales Service Provided:	Overseas Third-party Support Available, Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service
Truck Type:	Swing Arm Garbage Truck,Skip Loader Container Garbage Truck	Color & Logo:	Customized
Loading Capacity:	3tons, 4tons, 5tons, 3t, 4t, 5t	Wheel Base:	3308
Horsepower:	108HP	Engine:	CHAOYANG ENGINE
High Light:	6m3 Waste Management Garbage Truck , 6cbm Waste Management Garbage Truck

Product description

Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
Self-unloading function, hydraulic operation
The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
Short-distance transportation, such as the cleaning of urban garbage etc.

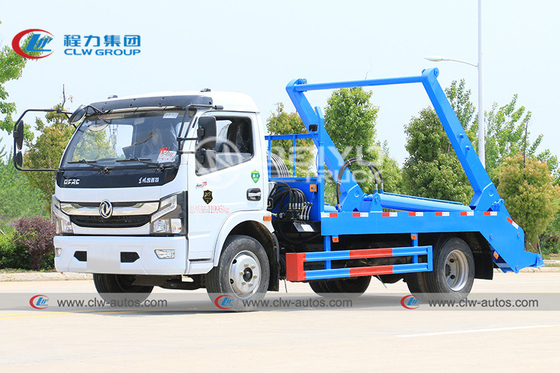

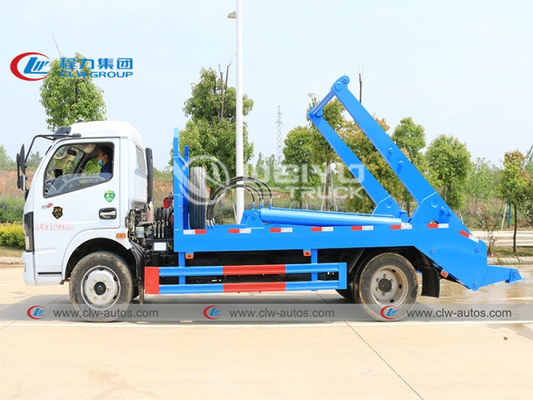

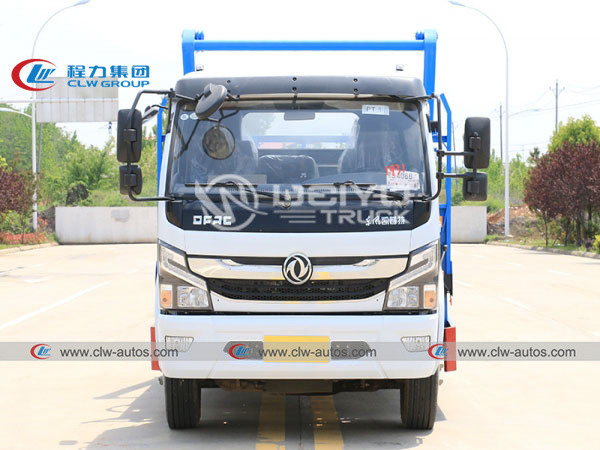

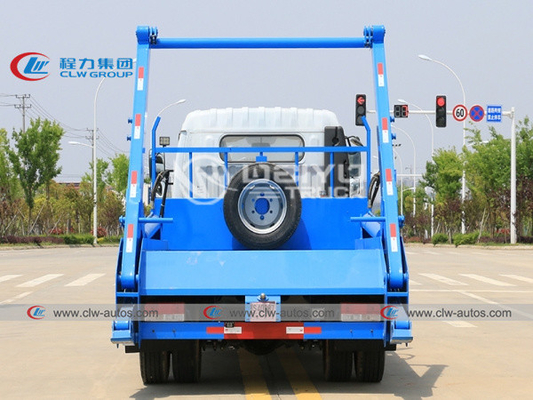

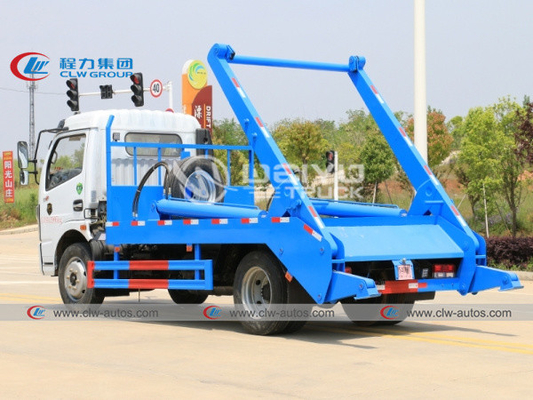

Hydraulic Operation Waste Management Garbage Truck 5-6m3 5-6cbm 0

Chassis parameters
Chassis model		EQ1040G47DJAC	Chassis brand	Dongfeng
Overall dimensions		584019802170mm	Wheel base	3308mm
Front/rear wheel track		1438,1486 mm	Front/rear suspension	1800/2695mm
Approach/departure angle		17/14°	Maximum speed	99km/h
Chassis Manufacturer		DONGFENG
Cab	Configuration	single row cab
	Color	Customized
Engine	Model	CYQD32T
	Emission	Euro 2
	Type	6 cylinders, in-line, turbo inter-cooling
	Rated power	108hp
	Displacement	3153ml
	Manufacturer	CHAOYANG
Tire	Size	6.50R16,7.00R16
	Number	6+1 nos
Fuel tank	300L iron oil tank
Front axle	HF 2 tons
Rear axle	ST 3 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	gearbox HW3153
Steering device	Power assisted steering
Steering wheel	LHD&RHD

Swing arm garbage truck structure parameters
Garbage container dimensions		Customized	Garbage container volume	5/6m3
Garbage container material		Carbon steel	Side wall	3mm
Bottom plate		4mm	Color and Logo	Optional
Standard configuration	Chassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins.
