Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, Isuzu, Sinotruk, Etc. | Hopper Size: | 8cbm, Ground Type |
|---|---|---|---|
| Loading Capacity: | 8Ton | Hopper Thickness: | 5mm, Carbon Steel Q235B |
| Protective Material: | Q235A Carbon Steel | Hopper Quantity: | As Per Customer's Request |
| Dump Type: | Hydraulic Cylinder Lifting And Self-loading | Controlling Way: | Three-way Hydraulic Control Valve |
| Color&Logo: | As Per Customer's Request | Warranty: | 1 Year |

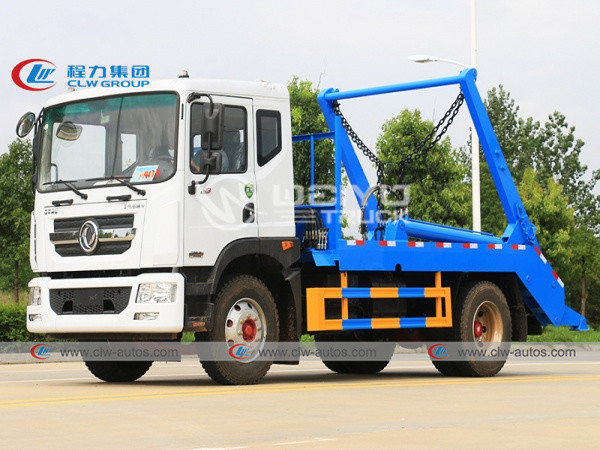

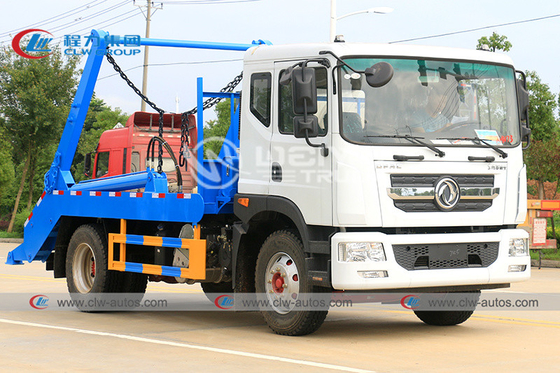

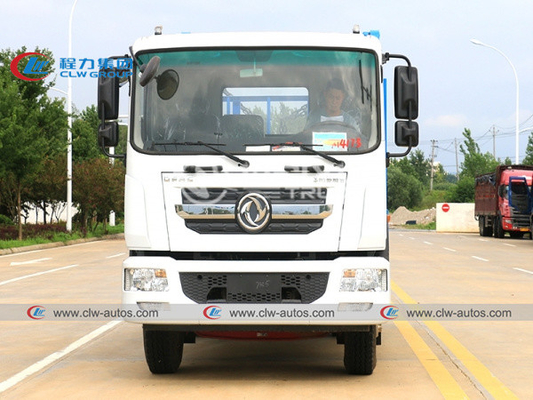

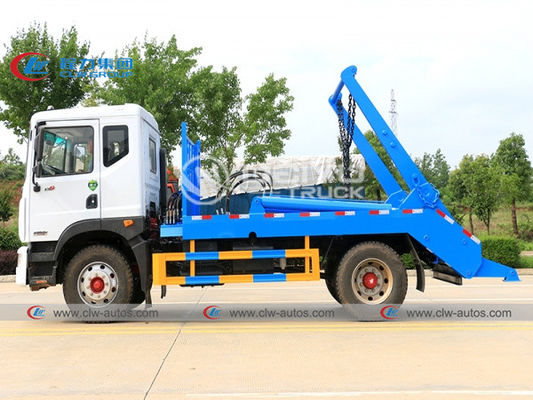

| High Light: | 160HP LHD Swing Arm Garbage Truck,8cbm Swing Arm Garbage Truck |
||
| Cabin | Driving type 4*2 LHD | |
| Single row cab,safety belts,with A/C | ||
| Carriage Dimensions | 7020*2462*2690 mm | |
| Wheel Base | 3950mm | |
| GVW | 10920kg | |
| Front/rear track | 1900/1800 | |
| Front/rear suspension | 1250/1820 | |
| Engine | Brand | Cummins |
| Model | EQB160-20 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Displacement | 5880L | |
| Horse Power | 160HP | |
| Emission standard | Euro 2 | |
| Max Speed | 90 km/h | |
| Tire | 9.00-20 Nylon tire | |
| Transmission | HW 5880 transmission ,10 forward and 2 reverse | |
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |
| Lifting System | Hyva | |
| Brake System | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2x12 V,165 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Superstructure | Hopper Capacity | 8cbm |
| Hopper Material | Carbon steel | |
Main Structure and Details
Main Parts
Our Factory
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for garbage truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
