Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, Isuzu, Sinotruk Howo, Etc. | Hopper Size: | 10cbm, Ground Type |
|---|---|---|---|
| Loading Capacity: | 10Ton | Hopper Thickness: | 5mm, Carbon Steel Q235B |
| Protective Material: | Q235A Carbon Steel | Hopper Quantity: | Customized |
| Dump Type: | Hydraulic Cylinder Lifting And Self-loading | Controlling Way: | Three-way Hydraulic Control Valve |
| Color&Logo: | As Per Customer's Request | Warranty: | 1 Year |
| High Light: | Swing Arm Garbage Truck 10cbm,Swing Arm Garbage Truck 4x2 |
||

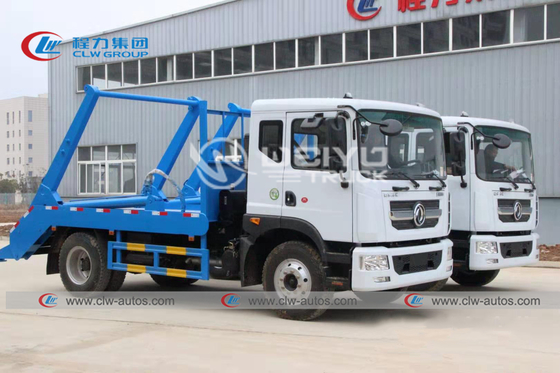

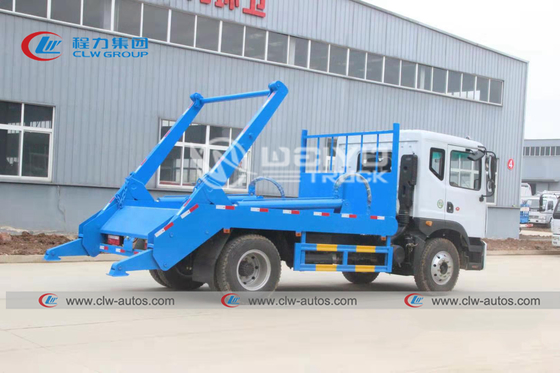

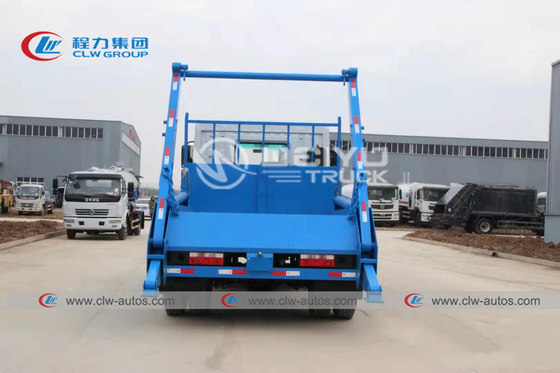

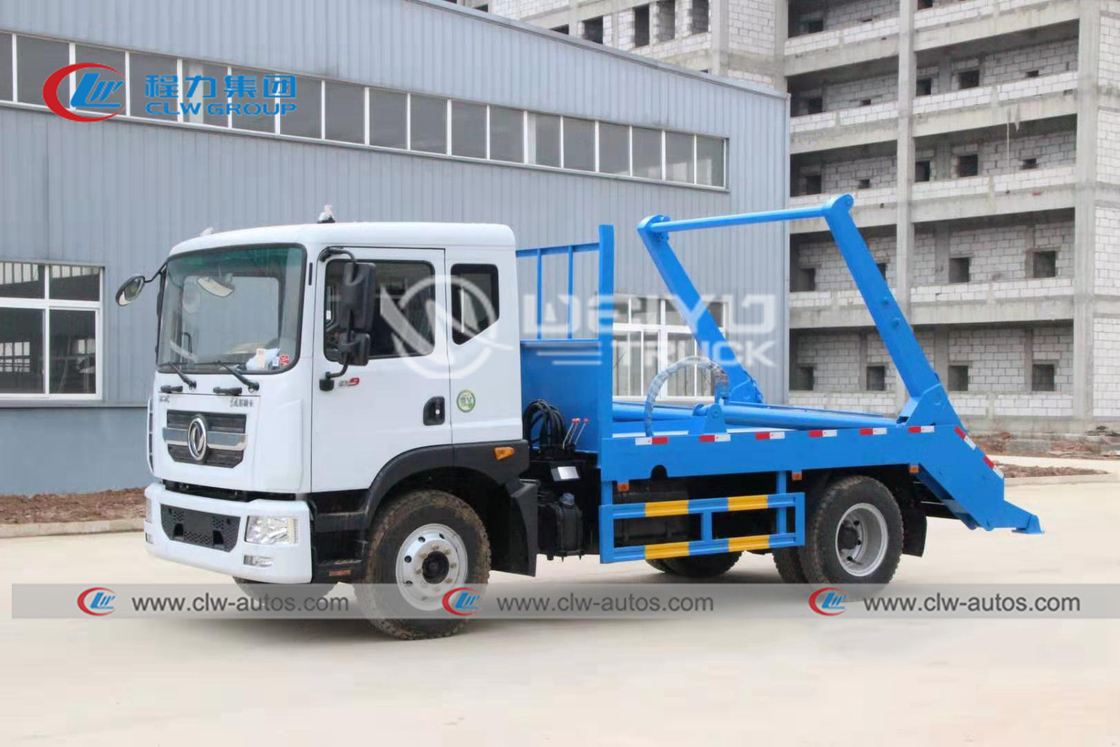

Dongfeng 4x2 10cbm Swept Body refuse collector Swing Arm Garbage Truck
Product description
| Dongfeng 4X2 Swing-arm Garbage Truck | ||
| Cabin | with one sleeper, with two seats, with A/C,70° hydraulically tillable to the front | |
|
Vehicle Main Dimensions |
(L x W x H)mm | 7020x2462x2690 |
| Wheel base (mm) | 3950 | |
| Wheel track (front/rear) (mm) | 1900/1800 | |
| Approach/Departure angle(°) | 30/18 | |
|
Weight in KGS |
Tare Weight | 4550 |
| Loading Capacity | 7950 | |
| Front axles loading capacity | 1x4000 | |
| Rear axles loading capacity | 1x8550 | |
| Max. driving speed(km/h) | 90 | |
|
Engine |
Brand | Cummins |
| Model | ISBE185 30 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 184 HP | |
| Emission standard | Euro 3 | |
| Gearbox | DC6J65TC, 6 forwards & 1 reverse | |
| Clutch |
Push type diaphragm spring clutch, diameter 395 mm
|
|
| Tire | 9.00R20, Steel tire, 7pieces | |
| Garbage System |
1. Box Size: 10 CBM matched 2. PTO motivated hydraulic system 3. Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg |
|
Main Structure and Details
Main Parts
Factory overview
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage Truck?
A: China GB local standard.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
