Dongfeng Hydraulic Hook Auto Tipping Garbage Collection Truck 4-6 CBM

Large Image : Dongfeng Hydraulic Hook Auto Tipping Garbage Collection Truck 4-6 CBM

Product Details:

Place of Origin:	China
Brand Name:	CLW / Chengli
Certification:	CCC,ISO,BV,SGS
Model Number:	CLW5080GV

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Naked Pack with Wax,bulk ship,ro-ro
Delivery Time:	20-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500Unit Per Month

Contact Now

Detailed Product Description

Box Material:	Carbon Steel Q235B	Truck Brand:	Dongfeng
Truck Engine:	Chaochai 120hp	Gearbox:	5 Forward & 1 Reverse
Tire:	7.50R16	Steering:	Lhd,left Hand Drive,rhd,right Hand Drive
Hooklift Capacity:	3-6 Tons	Box Length:	3350mm
Box Width:	2000mm	Box Height:	1150mm
Discharing Way:	Rear Dumping	Transmission Type:	Manual, Automatic
Driving Type:	LHD/RHD, 4*2, 8X4/6X4/4X2
Highlight:	Dongfeng Auto Tipping Garbage Collection Truck , Hydraulic Hook Garbage Collection Truck 6CBM

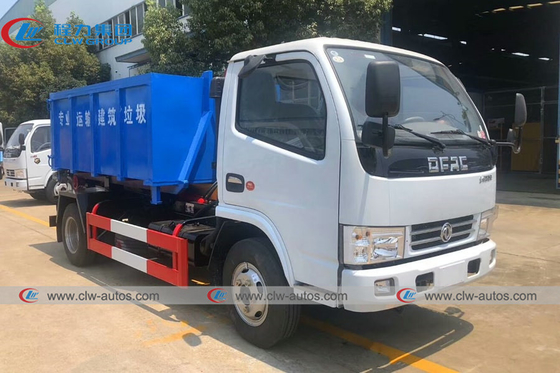

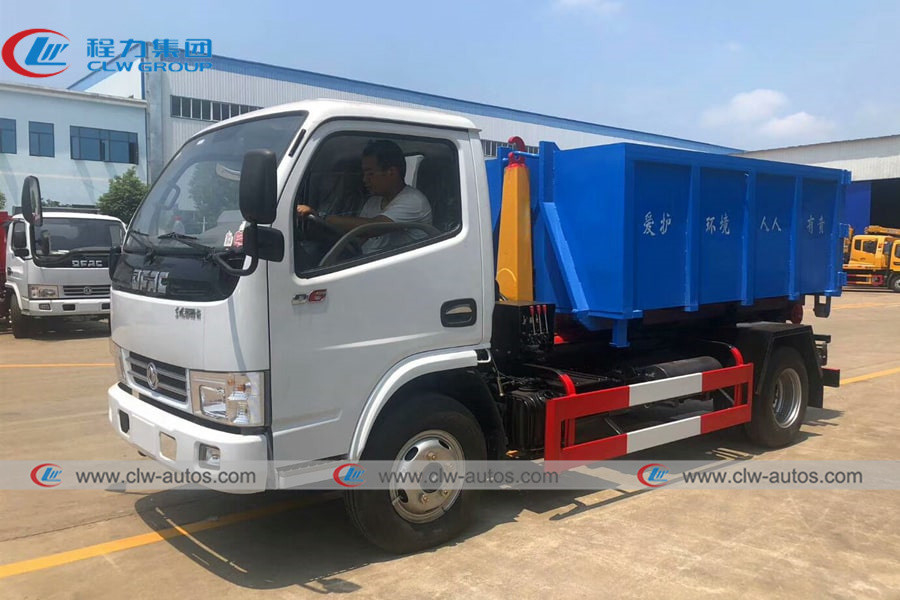

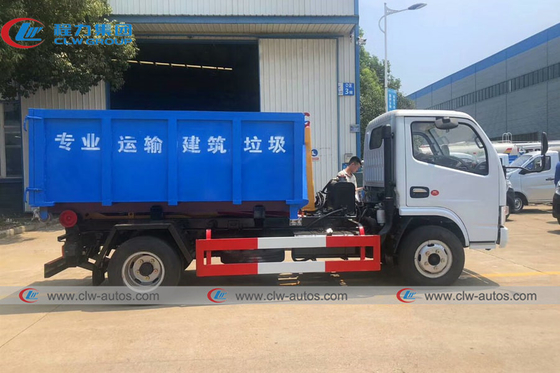

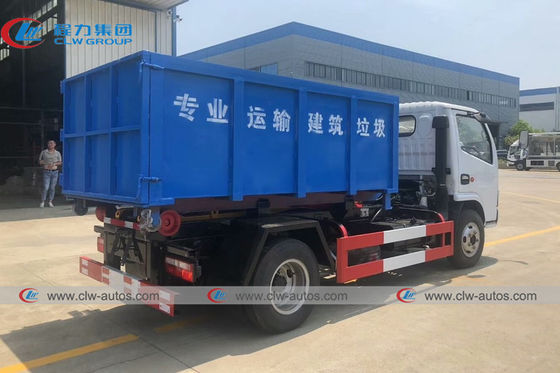

4-6 CBM Dongfeng Hydraulic Hook Auto Tipping Garbage collection Truck

Product Description

Hook lift System Structure

1. Hydraulic system
2. High-strength alloy steel one-piece main hook arm
3. Reinforced hook
4. Reinforced sub-beam
5. Cast steel tailstock wheel
6. Explosion-proof oil pipe
7. Hydraulic cylinder
8. Locking mechanism
9. Electric control and hydraulic operating device
10.Others: 5000kg lifting capacity, can be equipped with 5-30 trash bins, fixed-point placement, circular transportation.
Hydraulically complete loading, unloading, locking, self-unloading and other operations.
Specification:

Hydraulic system:
Oil tank and a filter system, an oil pump, a multi-way reversing valve, a one-way throttle valve, an oil cylinder, and an oil pipe.
Power of system: PTO take poer from the engine, then supplying to the oil pump.
Oil Gear Pump:
delivery hydraulic oil through the oil suction filter, and the multi-way valve supplies oil. When the multi-way valve of the hook arm garbage truck is working, the arm cylinder and the locking cylinder are activated.
When the hydraulic cylinder is not working, the hydraulic oil passes through the multi-way valve and returns to the oil tank directly.
The advantage is that one vehicle can be equipped with multiple buckets, and one vehicle can maintain the operation of several garbage collection stations, with high efficiency, and the box body is a sealed design, which will not cause secondary pollution.

Dongfeng D7 Furuika Hooklift Garbage Truck
Type	Hooklift	Overall Size	CLW5090ZXX6
Overall Size	4780x1900x2190	Traction	4x2
Box Volume	4 cubic meters	Lifting Capacity	2215kg
Vehicle Total Weight	4495kg	Max Speed	103 km/h
Tare Weight	1800 kg	Wheel Base	2600
Loading Weight	3500kg	Tire	7.50R16
Passenger Allowed	3 person	Tire No.	6
ABS	Yes	Fuel	16.5, 17.2
Leaf Spring	8/10+7, 12/12+9	Fuel Type	Diesel
Emission Standard	Euro 2 ~ Euro 6	Engine	Yuchai
Power	102HP	Displacement	2360, 2977, 2968

Structure of waste collection truck

1) Rolling polley:at two rear sides of garbage truck and adapts high tensile steel

2) Main arm hook

3) Knocking hook

4) Double oil cylinders

5) Multi-way valve system

6) One-key control in cabin and easy for operation

Main structure
Dongfeng Hydraulic Hook Auto Tipping Garbage Collection Truck 4-6 CBM 0
OTHER TYPES TANK & TRUCK

FACTORY SENCE:

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of container hook lift truck I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied container hook lift truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered container hook lift trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
