| Material: | Carbon Steel, Thickness: 4mm | Product Name: | Refuse Recycling Truck, Hook Arm Lifting Garbage Truck |
|---|---|---|---|
| Drive Type: | 8X4 10 WHEELS | Drive Model: | LHD&RHD |
| Capacity: | 15m3,15cbm, 15000liters | Truck Brand: | Sinotruk HOWO, Dongfeng, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Waste Collection Truck, Refuse Removal Truck | Other Equipment: | With Hyraulic System, Lifting Arm |
| Function: | Rear Loader, Rear Tipper, Roll Off. | Control System: | Multi-Valve, Remote Control & Manual Operation |
| Loading&Unloading: | Hydraulic Oil Cylinder | Equipment: | With Mobile Garbage Compactor Station Or Garbage Bins |
| Color: | Customized | Hopper Size: | 12cbm, 12m3 Roll Off Garbage Truck |
| Hopper Thickness: | 4mm, Carbon Steel | ||
| High Light: | Dongfeng 6 Wheels Hook Lift Truck,Detachable Garbage Truck 12cbm |
||

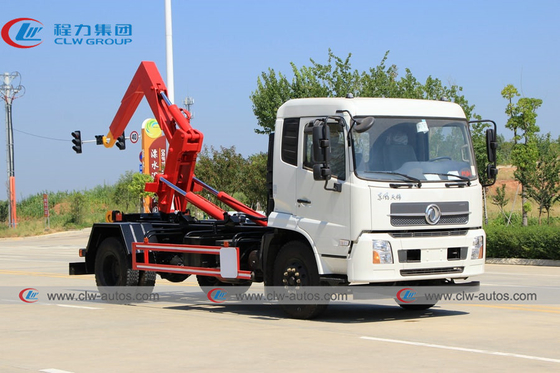

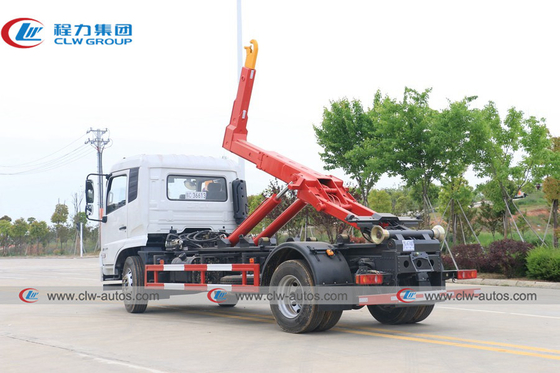

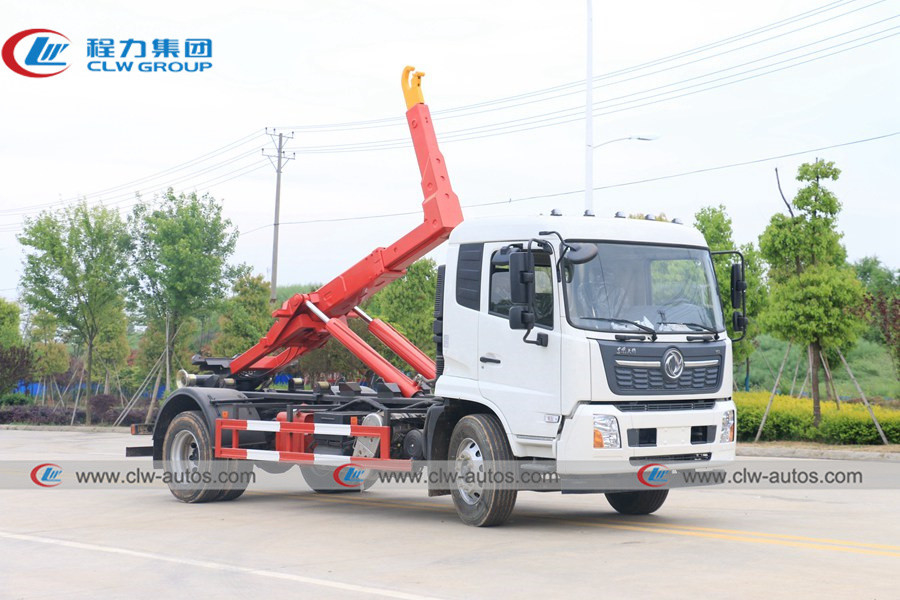

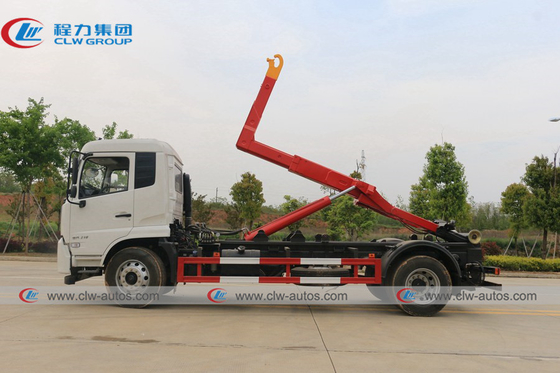

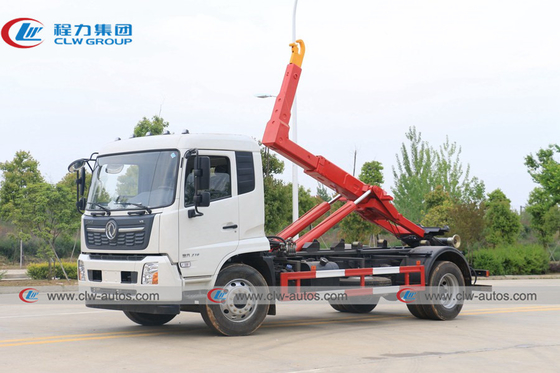

12cbm/12m3 Dongfeng 4*2 6 Wheels Hook Lift Truck Detachable Garbage Truck
Product Description
1. Garbage Bin with different size options of waste collection truck: 3cbm to 22cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
| Chassis model | DFL11608XIV | |
| Container capacity | 12cbm | |
| Vehicle specification | Dimension(LXWXH mm) | 7500X2470X3150 |
| Gross weight (kg) | 25000 | |
| Rated load weight(kg) | 15800 | |
| Curb weight(kg) | 7725 | |
| Approach/Departure angle (mm) | 30/30 | |
| F/R overhang (mm) | 1325/1350 | |
| Fuel type | Diesel | |
| Max speed (km/h) | 90 | |
| Engine specification | Model | ISDe180 30 |
| Engine capacity/ power(kw) | 6700/210 | |
| Manufacturer | Dongfeng Cummins | |
| Type | In-line six cylinder turbocharged engine | |
| Chassis specification | Dirve wheel | 4*2 |
| Wheelbase(mm) | 4700 | |
| F/R suspension | 1325/1350 | |
| Steering gear | ball-nut type steering gear | |
| Clutch | Single pedal, Dry clutch, hydraulic remote control | |
| Brake system | Air brake, CAM drum brake | |
| Cab | Metal, Flat head, Wide cab, titling cab | |
| Spring leaf(F/R) | 8/13 | |
| Tire specification | 10.00R20,11.00R20 | |
| AC | Optional | |
Main structure for reference :
Factory sence
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 23CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage Truck?
A: China GB local standard.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
