FOTON Xiangling V1 Mini Refrigerated Truck 1 Ton 1.5ton

Large Image : FOTON Xiangling V1 Mini Refrigerated Truck 1 Ton 1.5ton

Product Details:

Place of Origin:	Suizhou, China
Brand Name:	CLW
Certification:	ISO, CCC, SGS, BV, ASME
Model Number:	CLW5030

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	Naked, Waxed, Bulk ship, Ro-Ro
Delivery Time:	30-35 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Chassis Brand:	Dongfeng, Howo, Foton, Isuzu, JMC, Etc.	Van Material:	Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle
Van External Thickness:	1.2mm 1.5mm 1.8mm 2.0mm	Van Interbed Thickness:	80mm 100mm 120mm
Van Internal Thickness:	1.2mm 1.5mm 1.8mm 2.0mm	Loading Weight:	1-2tons
Refrigerator Model:	Thermo King, Carrier, Hanxue, Huatai, Bingli	Chassis Brand:	Isuzu, Dongfeng, Foton, Howo, Etc.
Drive Model:	4x2/6x4/8x4; As Per Super Structure Size	Wheel Base:	2400mm 2800mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm
Delivery Time:	30-35 Working Days	Logo And Painting:	As Customer's Request.
Warranty:	1 Year
High Light:	FOTON Mini Refrigerated Truck , Mini Refrigerated Truck 1.5ton

FOTON Xiangling V1 mini 1 ton 1.5ton Refrigerated truck 4X2 diesel freezer box for seafood 1ton refrigerated truck

Product Description
The refrigerated truck is also called refrigerated cold room van truck, freezer lorry, refrigerator van, refrigeration truck, freezer truck,refrigerated cargo truck. It is usually consisted of truck chassis, refrigeration unit, cooling van,etc. It mainly used to transport ice cream, milk , leben, frozen food,etc. The refrigerator van for meat and fish is equipped with meat hook on the inner roof and air trunking at box bottom of the truck.
The freezer unit we usually use are Thermo king, Carrier, Dongin, Hua Tai, Han Xue,etc.
The refrigerated temperature of refrigeration units are 5 degree Celsius below zero, 10 degree Celsius below zero, 15 degree Celsius below zero, 18 degree Celsius below zero. You also can install heating refrigerator to make the temperature above zero in bitter winter.
The material of refrigerator truck can be color plate, fiberglass, stainless steel, aluminium alloy, etc.
The surface of freezer van trucks are smooth and can be pasted with your logo, bill, etc. The inner of
meat transport refrigerated truck body is stainless steel.

As a professional refrigerator carrier truck manufacturer, the freezer cargo van for sale is with light curb weight, good insulation performance, waterproof, corrosion resistance,smooth
surface,clean easily and other advantages. Meanwhile, it is convenient to maintenance if box broken and without any markafter maintenance.

1. Purpose: It is used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.

2. High end brand FOTON good quality chassis, 116HP diesel engine, 5-speed gearbox, 175R14 tires, etc.
3. Manufactured by our company, best production craft, sandwich structure freezer box, good thermal insulation capacity
4. Very light curb weight, fuel saving, and load more weight of cargoes
5. Truck box new craft, aluminum box edge reinforced, more strength

6. Optional refrigeration unit: -15ºC~0ºC, -5ºC~0ºC, 0ºC~5ºC, not only cooling, we also have heating unit

7. More options on chassis and enigne, such as Foton, Dongfeng, Howo, Japan brand, JMC, Shacman, etc

Truck Specifications

Name	FOTON Xiangling mini 1 ton Refrigerator 4X2 diesel freezer box seafood 1ton refrigerated truck
Item	Specifications	Item	Specifications
Truck Model	CLW5030	Gross Weight (kg)	2640
Overall dimensions	4960×1720×2515mm	Rated Load (kg)	1080
Wheelbase (mm)	3170	Curb Weight (kg)	1560
Front Track (mm)	1410	Approach Angle	38°
Rear Track (mm)	1280	Departure Angle	15°
Number of axles	2	Number of Tyres	6
Drive system	4 ×2	Tyre Specification	175R14 LT
Max speed (km/h)	100	ABS	√
Paint	White, etc	Allowable Cab Passengers	2
Front Overhang (mm)	690	Rear Overhang (mm)	1740
Chassis
Model	FOTON	Brand	Xiangling V1
Emission Level	Euro 3,4,5,6	Axle Load	1350/2145
Leaf Spring	5/7,5/5+3
Engine (Motor) (Petrol)
Brands	Model	Displacement	Rated Power
Dongan	DAM15KR	1500	85kw (116hp)
Superstructure
Van dimensions	2795x1560x1535mm	Reefer-Temperature Required(degree)	-5/-15°C
Van box material	8mm Polyurethane in middle, covered by 2.5mm fiber glass inside and outside

Product Show

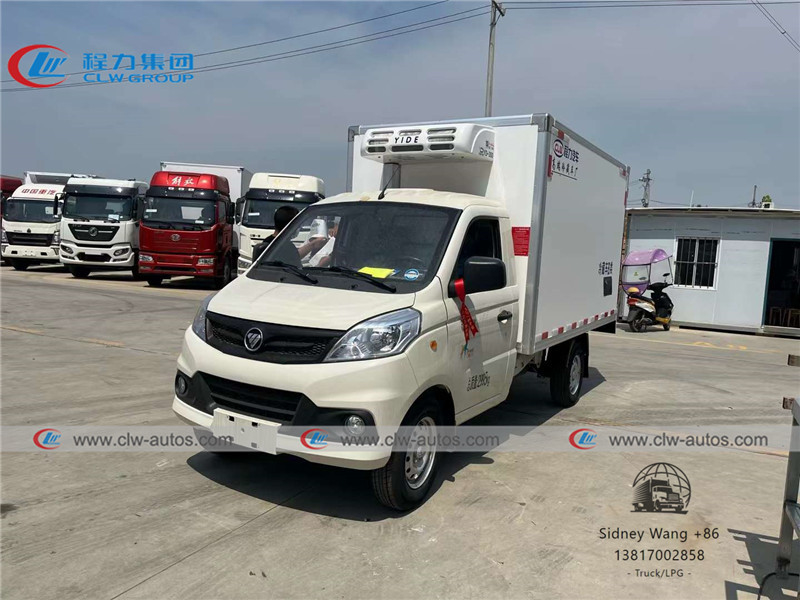

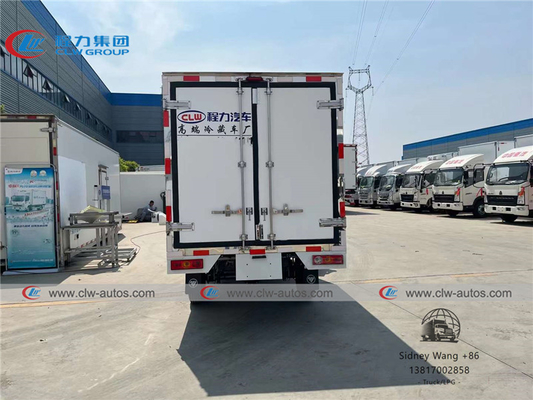

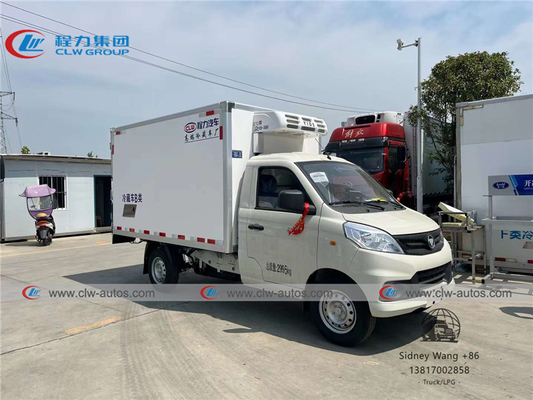

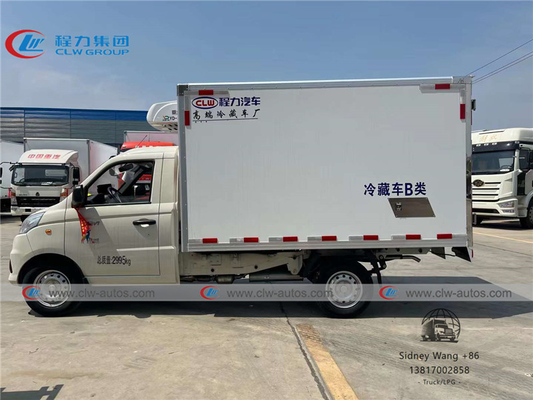

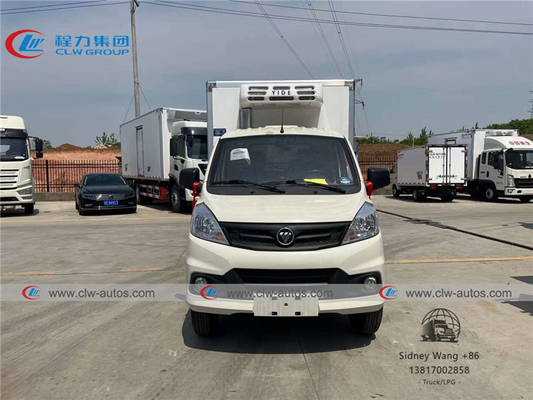

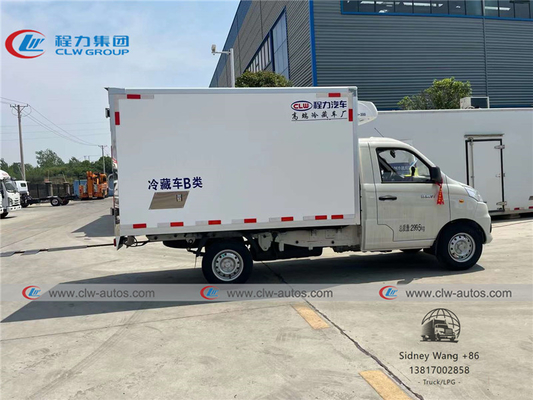

FOTON Xiangling V1 Mini Refrigerated Truck 1 Ton 1.5ton 0

FOTON Xiangling V1 Mini Refrigerated Truck 1 Ton 1.5ton 3

Factory overview

Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
