Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel, Thickness: 4mm | Product Name: | Refuse Recycling Truck, Hook Arm Lifting Garbage Truck |
|---|---|---|---|
| Drive Type: | 6*4 10Wheel | Drive Model: | LHD |
| Capacity: | 20m3,20cbm | Truck Brand: | Sinotruk HOWO, Isuzu, Dongfeng, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Waste Collection Truck, Refuse Removal Truck | Other Equipment: | With Hyraulic System, Lifting Arm |
| Function: | Roll Off Type | Control System: | Multi-Valve, Remote Control & Manual Operation |
| Loading&Unloading: | Hydraulic Oil Cylinder | Equipment: | With Mobile Garbage Compactor Station Or Garbage Bins |
| Color&Logo: | Customized | ||
| High Light: | 20m3 Hook Lift Waste Collection Truck,Isuzu 20cbm Waste Collection Truck |
||
Product description:
1. One truck can be matched with many rubbish bins. Which can improve the transportation capacity of the vehicle, saving energy and cost.
2. Adopt full hydraulic control operation system, garbage compartment and chassis can be completely separated, with reasonable structure, simple operation, stable, high efficiency, good sealing performance, convenient dumping and other advantages.
3. The dustbin is made of high quality wisco material.
4. The rear for mechanical locking device, the back door with sealing strip to prevent dirt, dust, debris caused by scattered.
5. You can select 2-4 rollers below the dustbin to facilitate movement and reduce the working pressure of the hook arm.
6. Sleeve joint, high pressure hose and high pressure steel pipe are installed reasonably,which ensure that there is no leakage for a long time, so as to be reliable, convenient maintenance and prolong the service life.
Product paremeters:
| Wheel Base | 4350+1350 mm |
| Front Axle | 7000kg |
| Rear Axle | 18000kg |
| Engine | Isu zu Diesel engine 6HK1-TCSG40 |
| Engine horsepower | 280HP EURO4 |
| Displacement | 7780 mL (Diesel) |
| Rated Rotation Speed | 2400 rpm |
| Engine type |
|
| Gearbox |
|
| Cabin |
|
| Tire | 1100R20 (10 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| Fuel box | Aluminum alloy, 400L |
| Garbage Truck Body | |
| Tanker body material | Quality high tensile Q345 carbon steel |
| Shape | rectangular box, arc-shaped rear |
| Thickness | Side 4mm, Bottom 5mm |
| Garbage Dimension | 5600*2300*1500mm |
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger |
| Dump type | Hydraulic cylinder lifting and self-loading |
| Dump angle | ≥45° |
| Hydraulic system pressure | ≤16Mpa |
| Protective Material | Q235A Carbon Steel |
| Controlling Way | Three-way hydraulic control valve |
| Other Configuration |
1. Reinforced hydraulic swept-body system, with Double hydraulic cylinder
2. Swing Arm, Chain.
3. Hydraulic multi-way valve control.
|
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. |
| Cycle times | Less than 40s |

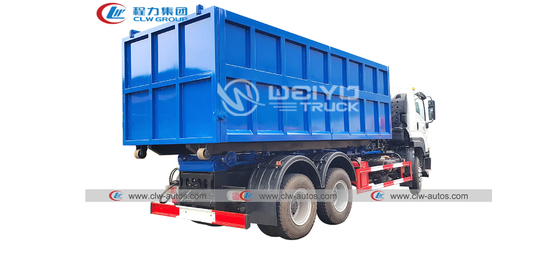

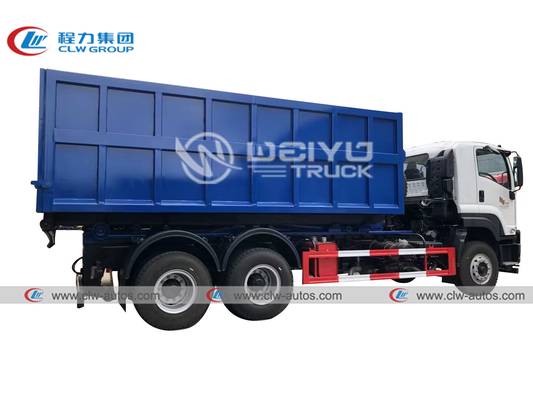

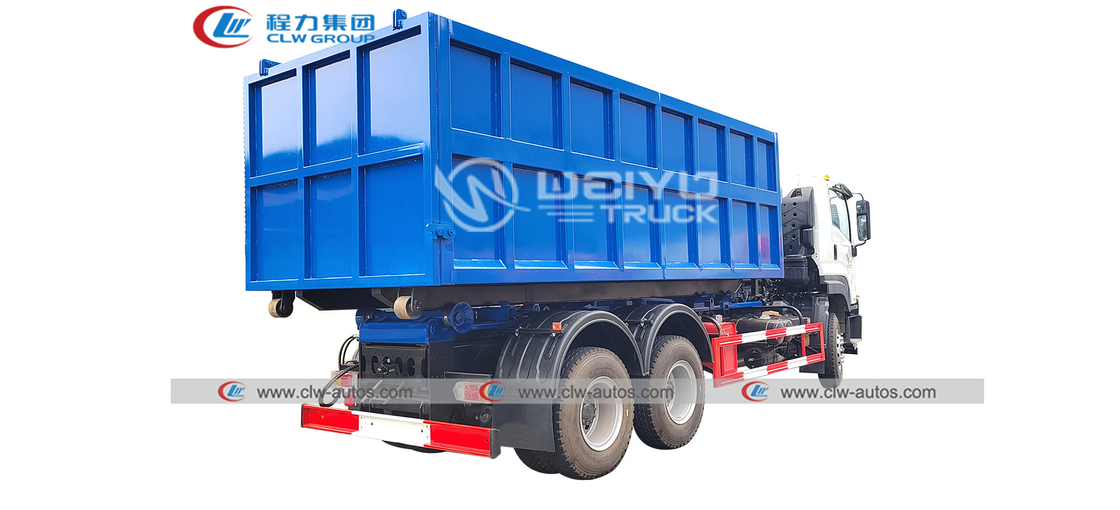

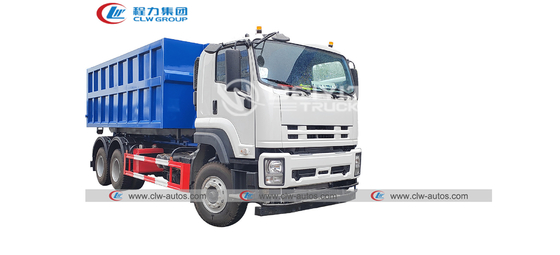

Reference pictures
