Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Howo, Foton, Isuzu, JMC, Etc. | Van Material: | Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle |
|---|---|---|---|
| Van External Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Van Interbed Thickness: | 80mm 100mm 120mm |
| Van Internal Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Loading Weight: | 1-2tons |
| Refrigerator Model: | Thermo King, Carrier, Hanxue, Huatai, Bingli | Chassis Brand: | Isuzu, Dongfeng, Foton, Howo, Etc. |
| Drive Model: | 4x2/6x4/8x4; As Per Super Structure Size | Wheel Base: | 2400mm 2800mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm |
| Delivery Time: | 30-35 Working Days | Logo And Painting: | As Customer's Request. |
| Warranty: | 1 Year | ||
| High Light: | 6CBM Freshgoods Refrigerated Box Truck,Dongfeng Mini Refrigerated Box Truck |
||
Product Usage:
1. Purpose: It is used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.
Specification:
Car volume: 6 cubic meters,
Cargo Size: 2680×1500×1550.
Car body material: FRP is used both inside and outside.
Filled with 8cm polyurethane insulation in the middle, and patterned aluminum bottom plate.
Refrigeration temperature: -15°-0°.
Loading and unloading function: rear double doors.
Feature:
The lowest temperature can reach -25ºC;
The box is made of cold outer glass fiber reinforced plastic, which is beautiful, dirt-resistant and easy to clean.
Filled with polyurethane foam insulation in the middle, with good sealing performance,
Strictly control the temperature of the box to ensure low temperature without freezing, so as not to freeze the goods
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Dongfeng RHD mini gasoline refrigerated truck |
| Drive Type | 4*2 RHD, | |
| Payload (kg) | 1-2T | |
| Seating person | 2 | |
| GVW (kg) | 4495 | |
| Curb Weight (kg) | 2100 | |
| Overall Dimensions (L*W*H) (mm) | 4275*1620*1870 | |
| Insulation van dimension(L*W*H)(mm) | 2680*1550*1500 | |
| Engine | Engine Brand | QUANCHAI |
| Fuel Type | GASOLINE | |
| Max output (hp/rpm) | 50KW/68hp | |
| Emission Standard | Euro III | |
| Capacity (cc) | 1498 | |
| Chassis | Chassis Brand | Dongfeng |
| Tire Specification | 175R14LT 8PR*4 | |
| Wheelbase (mm) | 2400 | |
| Axle No. | 2 | |
| Steering Wheel | Left hand drive, | |
| Gear Box | 5 speed gearbox, manual | |
| Brake | Air brake | |
| Air-conditioner | Original air conditioner | |
| Upperstructure | Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. |
| Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
| Doors |
Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. |
|
| Refrigeration unit | Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5ºC to 15ºC. And the reefer can be adjusted at the driver cab. |

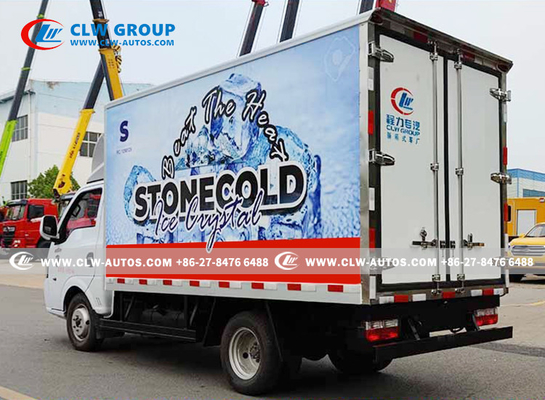

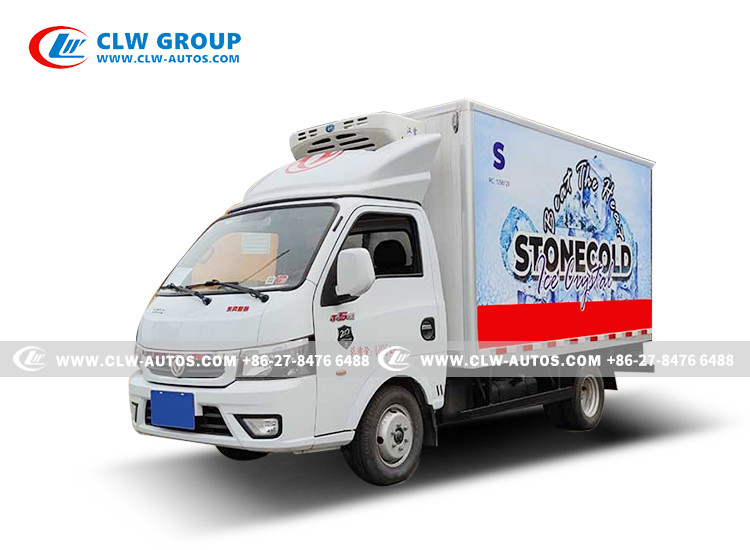

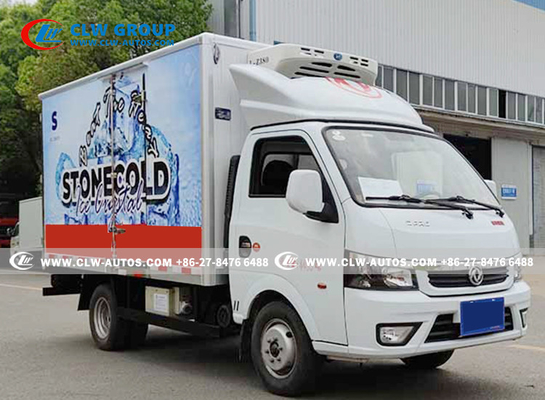

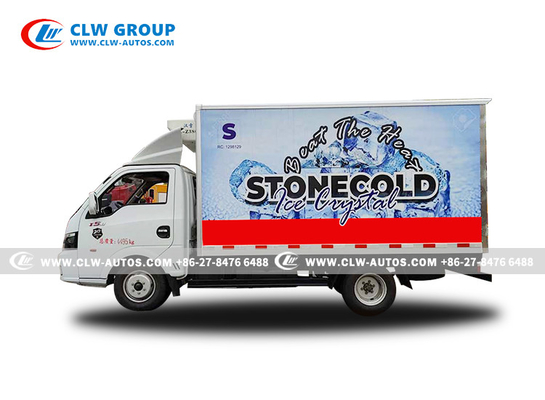

1. Product Show

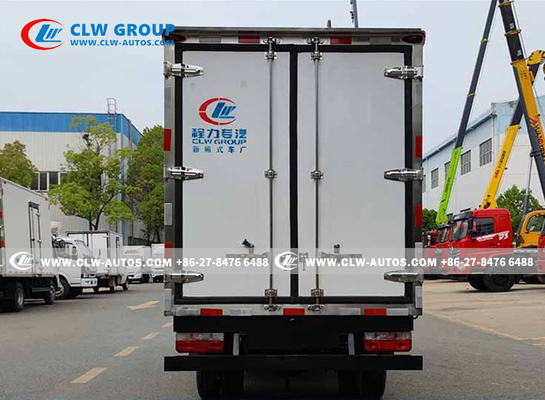

2.The rear double doors improve the efficiency of loading and unloading
4.Optional structures:
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
