Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Howo, Foton, Isuzu, JMC, Etc. | Van Material: | Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle |
|---|---|---|---|
| Van External Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Van Interbed Thickness: | 80mm 100mm 120mm |
| Van Internal Thickness: | 1.2mm 1.5mm 1.8mm 2.0mm | Loading Weight: | 1-2tons |
| Refrigerator Model: | Thermo King, Carrier, Hanxue, Huatai, Bingli | Chassis Brand: | Isuzu, Dongfeng, Foton, Howo, Etc. |
| Drive Model: | 4x2 As Per Super Structure Size | Wheel Base: | 2400mm 2800mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm |
| Delivery Time: | 30-35 Working Days | Logo And Painting: | As Customer's Request. |
| Warranty: | 1 Year | ||
| High Light: | Dongfeng Refrigerated Cold Room Van,6cbm Food Transport Box Truck |
||
Product descriptions:
1. Truck volume: 6cbm/6m3
2. Overall dimesion:2680×1500×1550.
3. Filled with 8cm polyurethane insulation in the middle, and patterned aluminum bottom plate.
4. Refrigeration temperature: -15°-0°.
5. Loading and unloading function: rear double doors.
Product advantages:
1. The box body is made of glass fiber reinforced plastic inside and outside
2. 8CM middle thermal insulation board
3. Double door opens at the rear
4. Right side of the box body is in front of the single door
4. Front drain hole
5. Door strip adopts rubber sealing strip, aluminum alloy Profile wrapping
6. Stainless steel wrapping angle, stainless steel door lock, stainless steel door frame hinge
7. Energy-saving LED lighting in the compartment.
8. Bottom aluminum pattern skid plate
Optional parts:
1. The refrigeration unit can be selected from well-known brands such as Lengwang, Carrier, Hanxue, Hana, Huatai, and Kaixue.
You can choose independent or non-independent units, and you can choose dual-temperature units which can be heated and cooled.
2. The bottom can choose aluminum checker plate or glass fiber reinforced plastic,
3. The top has functions such as slipping meat ditch, ventilation, ventilation window, temperature and humidity recorder, aerator, 220V backup power, etc.
| Name | Dongfeng mini refrigerated truck |
| Overall dimension | 4275x1620x1870mm |
| Van dimension | 2680x1500x1550mm |
| BOX Volume | 6cbm |
| Curb weight | 1480kg |
| Max payload | 540kg |
| Drive type | Left hand drive |
| Drive wheel | 4X2 |
| Tire | 175/70R14LT 4pcs |
| Front/rear tread | 1360mm/1360mm |
| Front/rear suspension | 560/1250mm |
| Wheelbase | 2900mm |
| Leaf spring number | -/6 |
| Emission | Euro 5 |
| Displacement | 1243ml |
| Horse power | 98hp |
| Braking system | With ABS system |
| Max speed | 90km/h |
| Fuel type | gasoline |
| Painting | With shot blasting and 4 layers painting,color is optional. |

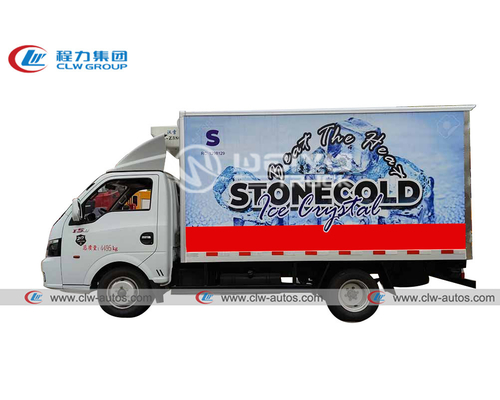

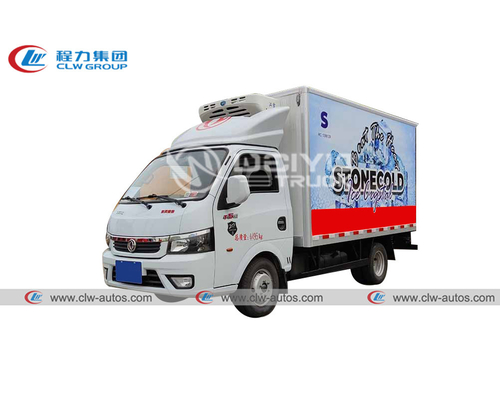

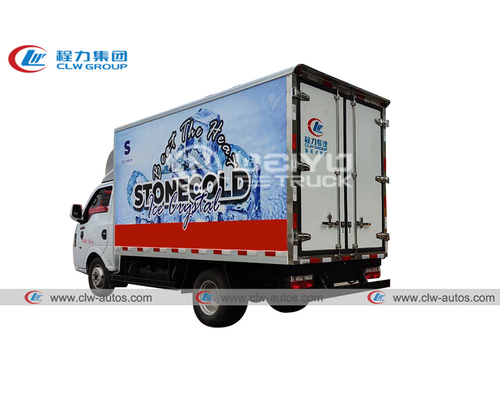

Detailed photos:
Optional structures:
Why choose us:
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
