Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck

Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck
Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck

Large Image :  Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: ISO, CCC, SGS, BV, ASME
Model Number: CLW5640

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Naked, Waxed, Bulk ship, Ro-Ro
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Chassis Brand: Dongfeng, Howo, Foton, Isuzu, JMC, Etc. Van Material: Color Plate Inside, FRP Outside Of The Van, Polyurethane Foam Middle
Van External Thickness: 1.2mm 1.5mm 1.8mm 2.0mm Van Interbed Thickness: 80mm 100mm 120mm
Van Internal Thickness: 1.2mm 1.5mm 1.8mm 2.0mm Loading Weight: 1-2tons
Refrigerator Model: Thermo King, Carrier, Hanxue, Huatai, Bingli Chassis Brand: Isuzu, Dongfeng, Foton, Howo, Etc.
Drive Model: 4x2/6x4/8x4; As Per Super Structure Size Wheel Base: 2400mm 2800mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350mm; 1350mm+4300+1350mm
Delivery Time: 30-35 Working Days Logo And Painting: As Customer's Request.
Warranty: 1 Year
High Light:

Mini 2Ton Refeigerated Truck

,

Foton Refeigerated Truck 4x2

Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck

1. Product Description

A refrigerated truck is a closed-type van used to transport frozen or fresh-keeping goods. It is a special refrigerated transport vehicle equipped with a refrigeration unit of a refrigeration unit and a polyurethane insulation compartment. It is often used to transport frozen food (refrigerated vehicles), dairy products. (dairy transporter), vegetables and fruits (fresh goods transporter), vaccine drugs (vaccine transporter), etc.

2. Product specification:
Foton Times refrigerated truck,
single row cab,
with steering assist, rear twin,
Full diesel engine, 68 hp,
Cargo box size: 3200*1560*1650

Ventilation slots:

  • Enhance the cold air circulation effect of the refrigerator,

  • The cargo will not stick to the side walls and bottom of the box body.

  • At the same time, it can keep the goods in the case of long-distance transportation, and they will not be deteriorated and damaged.

  • The material is aluminum alloy, the structure is simple and easy to clean



3.Optional Configuration:

  • According to the specific requirements of the customer, the ventilation pipe of the refrigerated truck is equipped with a protective frame for the refrigeration unit of the refrigerated truck to avoid damage to the refrigeration unit due to the high accumulation of goods during transportation.

  • When transporting meat or pharmaceutical items and box items, it is necessary to install ventilation slots to prevent deterioration.

Specification

Items Descriptions Specifications and Types
General Truck Name FOTON RHD mini gasoline refrigerated truck
Drive Type 4*2 RHD,
Payload (kg) 1-2T
Seating person 2
GVW (kg) 3495
Curb Weight (kg) 2100
Overall Dimensions (L*W*H) (mm) 4405*1800*2100
Insulation van dimension(L*W*H)(mm) 2600*1410*1500
Driver cab FOTON truck body
Engine Engine Model DAM15KL
Engine Brand Dong'an
Fuel Type GASOLINE
Max output (hp/rpm) 50KW/68hp
Emission Standard Euro III
Capacity (cc) 1498
Chassis Chassis Brand FOTON
Tire Specification 175R14LT 8PR*4
Wheelbase (mm) 2400
Axle No. 2
Steering Wheel Right hand drive,
Gear Box 5 speed gearbox, manual
Brake Air brake
Air-conditioner Original air conditioner
Upperstructure Box Side Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
Box Floor Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
Doors

Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.

The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.

Door edgings, door locks and accessories use stainless steel materials.

Refrigeration unit Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5ºC to 15ºC. And the reefer can be adjusted at the driver cab.



1.Reference photos:

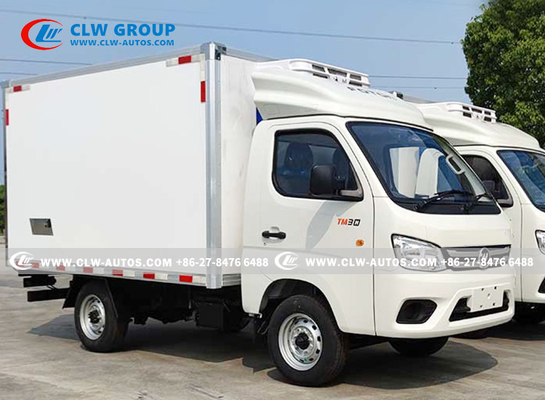

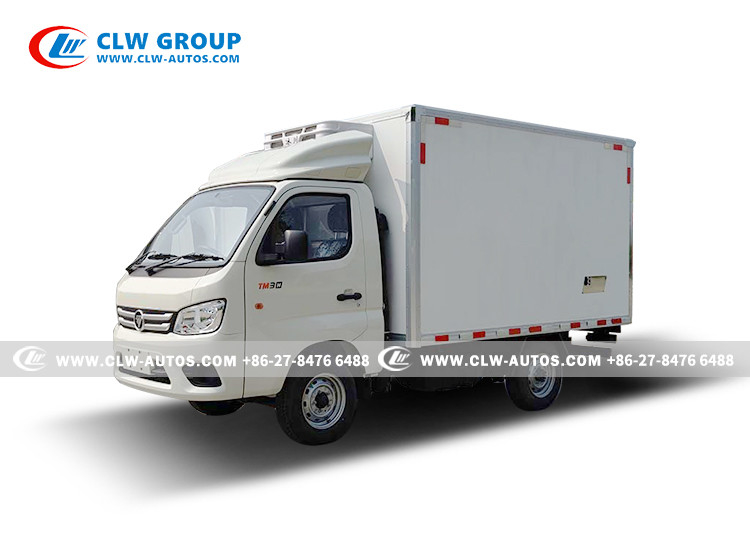

Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck 0

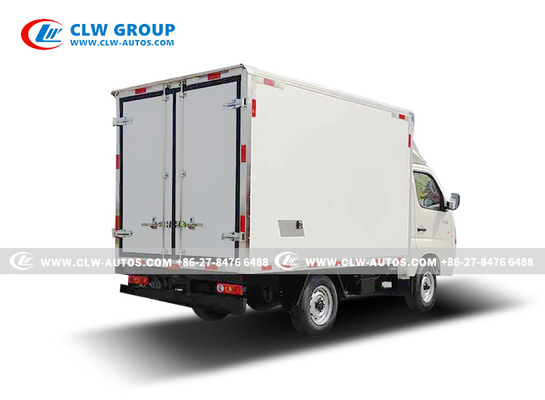

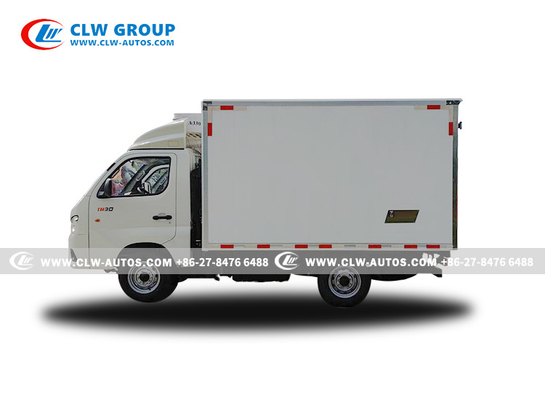

Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck 1

2.Optional structures:

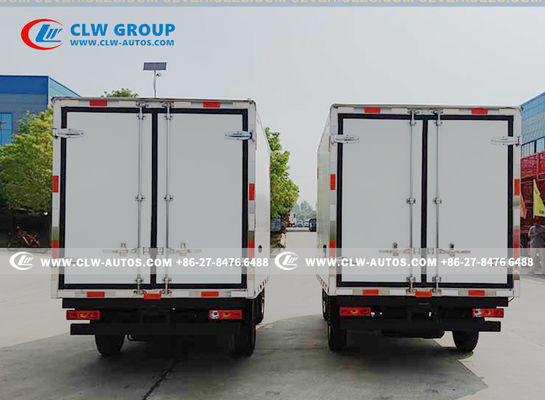

Foton Mini 2 Ton Refeigerated Truck Fresh Vegetable And Meat Cooler Truck 2


Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
