Product Details:
Payment & Shipping Terms:
|
Chassis Brand: | HOWO,Dongfeng, Foton, Isuzu Etc. | Container Volume: | 20cbm, Optional From 5m3 To 20m3 |
---|---|---|---|
Loading Capacity: | 15ton,16ton, 17ton, 18ton, 19ton, 20tons | Box Thickness: | Side 4mm, Bottom 5mm, Carbon Steel Q235B |
Protective Material: | Q235A Carbon Steel | Dump Type: | Hydraulic Cylinder Lifting And Self-loading |
Controlling Way: | Three-way Hydraulic Control Valve | Usage: | Domestic Garbage Transportation |
Color: | As Per Customer's Request | LOGO: | As Per Customer's Request |
Warranty: | 1 Year | Operating Video: | Yes |
User Manual: | Yes | ||
High Light: | 22m3 Hook Lift Bin Garbage Truck,Carbon Steel Q235B Bin Garbage Truck |
Main structures:
The garbage compartment and the chassis can be completely separated,
Reasonable structure,
Simple and efficient operation,
Good sealing performance,
Easy to pour
One car has multiple boxes, which greatly reduces the cost and space of spare parts.
Product Specification
Truck model | SINOTRUK HOWO |
Drive style | Left or right hand drive |
Drive model | 6x4 |
Dimensions(LxWxH) | 8865x2500x3290 mm |
Cargo body | 22cbm |
Engine | WD615.69, 336hp |
Emission standard | EURO II |
Front axle | HF7, 7tons loading capacity |
Rear axle | HC16, 16tons loading capacity |
Transmission | HW13710, 10 forward & 2 reverse. |
Steering system | ZF8118, hydraulic steering with power assistance |
Tires | 295/80R22.5, 10+1spare |
Upperstructure Specification | ||
Garbage Hopper | Dimension | 5600×2300×1500mm |
Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
Volume | Ground type, 22cbm | |
Loading Capacity | 16tons or 18Tons | |
Thickness | 5mm, Carbon Steel Q235B |
Dump type | Hydraulic cylinder lifting and self-loading | |
Dump angle | ≥45° | |
Hydraulic system pressure | ≤16Mpa | |
Protective Material | Q235A Carbon Steel | |
Controlling Way | Three-way hydraulic control valve | |
Other Configuration |
|
|
Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. |

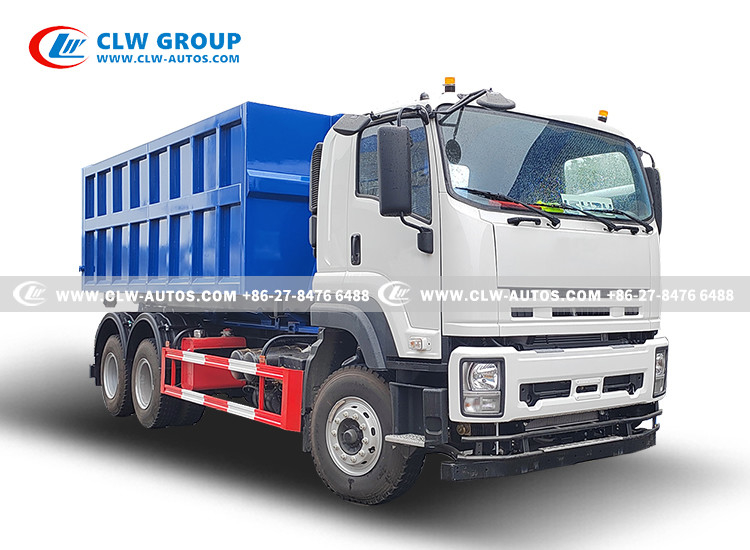

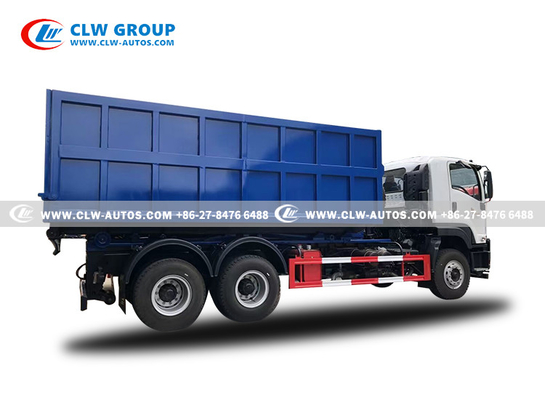

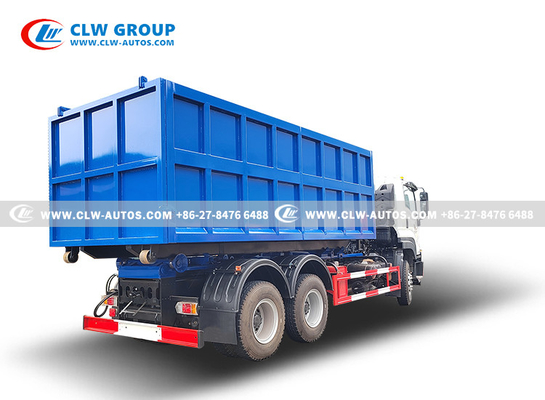

1.Reference Photos

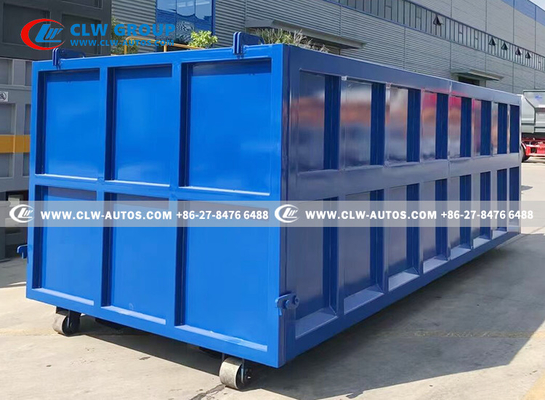

2.Sliding rollers on both sides
Fully painted cargo box
4.Other size hook lift garbage truck for your reference:
5.Main Structure and Diagram
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
