Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton | Capacity: | 12tons, 12CBM, 16tons, 16cbm |
|---|---|---|---|
| Type: | Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck | Fire Pump: | Chinese Brand |
| Fire Monitor Range: | ≥50M | Flow Rate Of Monitor: | 48L/s |
| Flow Rate Of Pump: | 60L/s | Steering: | LHD Or RHD |
| High Light: | 12CBM Water Tanker Fire Fighting Truck,ISUZU Fire Rescue Truck,12tons Fire Fighting Truck |
||
Product Description

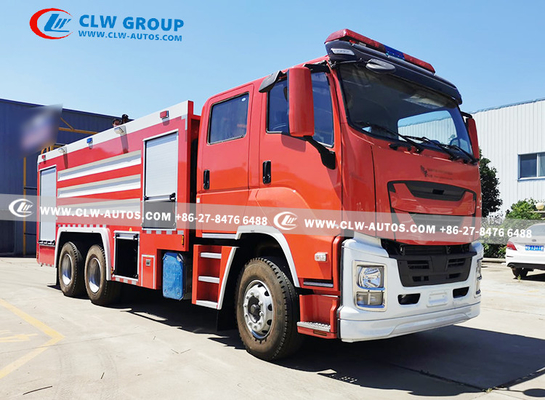

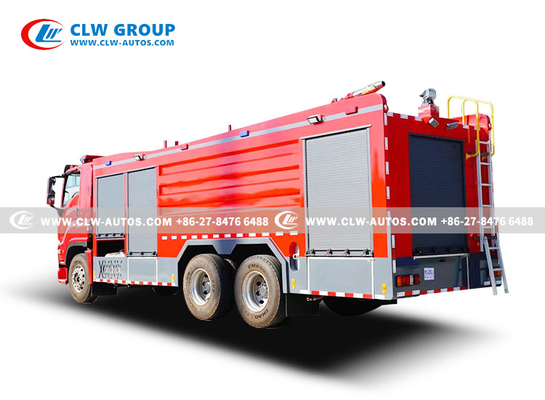

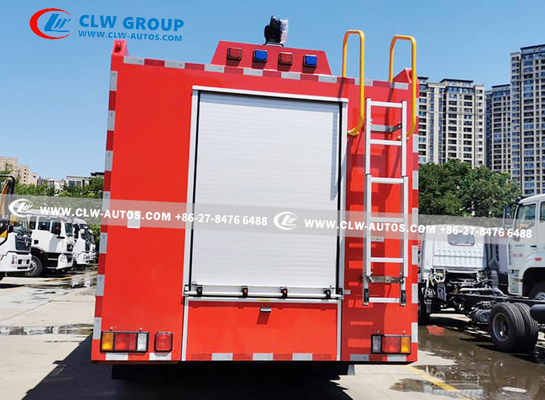

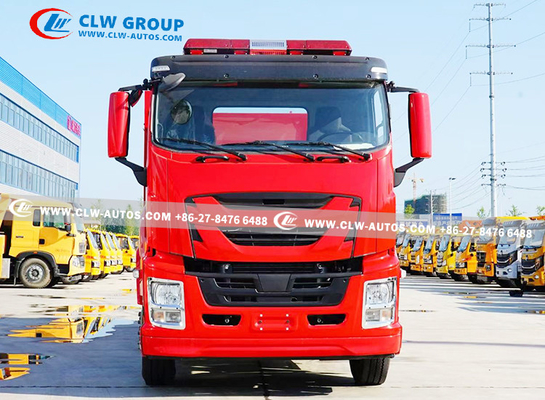

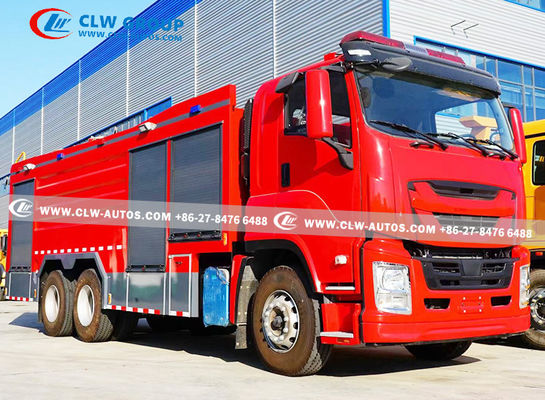

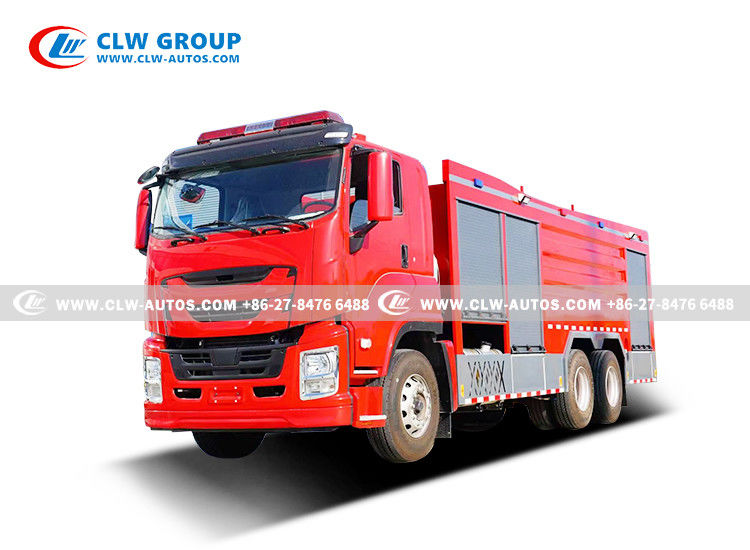

1) ISUZU 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.
Body specification:
The material of the tanker varies according to the transport medium, commonly used carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel lined plastic (or rubber) tanks and plastic tanks.
Tank forming adopts advanced numerical control automatic longitudinal welding process and head arc butt welding process, as well as integral steel-plastic composite forming technology.
It is suitable for transporting light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, alcohol, edible oil, etc.
The cross-sectional shape of the tank body is oval, square, round, and round. Optional heating pipe, insulation layer and other insulation heating devices.
The design can adopt the functions of pump in and pump out over the meter, pump in and pump out but not over the meter, self-flow over the meter and self-flow over the meter;
Single-count and double-count return-to-zero flow meters are optional for measurement;
1-3 self-flow valves can be installed at the rear or side of the oil filling vehicle according to the needs of use.
Specifications
| 12cbm water foam fire fighting truck | ||||
| Model No. | SINOTRUK | Axles | 3 | |
| G.V.W(Kg) | 25,000 | Tank volume(m3) | 12 | |
| Curb weight(Kg) | 9280 | Overall dimension (mm) | 9940x2490x3025 | |
| Rated weight(Kg) | 13550 | Axles Load(Kg) | 7000/18000 | |
| Seating person | 5 | Front/rear suspension (mm) | 1370/2100 | |
| Approach/departure angle (°) | 17/12 | Max speed(Km/h) | 90 | |
| Wheelbase(mm) | 3385+1370 | Front/rear Tread(mm) | 2022/1830 | |
| Driver cab | 5-6 passengers allowed | |||
| Engine model | 380hp | |||
| Emission standard | Euro 4 | |||
| Tire size | 315/80R22.5 16PR | Tire No. | 11(including 1 spare tire) | |
| special function | Water Tank Capacity 1 20 00L | |||
| Fire Monitor range: ≥ 60 M | ||||
| Pump: type PS50 , Water Diversion Way: circulation | ||||
| Water Diversion Time: ≤35s, Rated Flow: 60L/s | ||||
| Pump Room: Middle or rear-mounted pump (Left and right side of the pump room) compartment side have the new style high-strength alloy aluminum rolling doors | ||||
| Storage side have the new style high-strength alloy aluminum rolling doors | ||||
| Electrical Equipment: The top of cab equipped with long-lined light, the back of the truck equipped with red and blue matched strobe lights, the down side installed security lights. Crew rooms, storage compartment and pumping room equipped with lights plus 100W siren, rotary light switches and reserved communication equipment ports. | ||||
Product introduction:
1. Fire trucks, also known as fire trucks, refer to vehicles designed and manufactured to be suitable for firefighters to ride, equipped with various fire-fighting equipment or fire-extinguishing agents, and used for fire-fighting, fire-fighting or fire-fighting rescue. Most state fire departments also use it for other emergency purposes.
2. Fire trucks can transport firefighters to disaster sites and provide them with multiple tools for disaster relief missions.
3. Fire equipment
Ladders, bamboo ladders, iron ladders, etc. (top-mounted), motorized chainsaws, hydraulic expansion pliers, portable universal cutters, climbers, lifting air cushions, pneumatic demolition tools, gas cutters, axes, picks, pliers, Spade etc.
Equipment come with fire trucks
Production Procedure
Factory overview
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of water/foam tank fire brigade truck I can order from your company?
A: There are various sizes and types of water/foam tank fire brigade trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied water tank fire brigade truck to any overseas companies?
A: Yes,with need of government project,we offered water tank fire brigade trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
