Product Details:
Payment & Shipping Terms:
|
| Box Material: | Fiber Glass Or Stainless Steel | Optional Part: | Meat Hook, Air Trunking, Side Door, Rear Platform |
|---|---|---|---|
| Material: | Fiberglass Panel | Insulating Layer: | 8cm Thickness Polyurethane Foam |
| Truck Refrigeration Unit: | Thermoking, Carrier Or Chinese Alternative | Applicable Temperature: | -18~0 |
| Box Type: | 3 Layer Sandwich | Outside Layer: | Fiber Glass |
| Middle Layer: | 8mm PE Foam Insulation | Inner Layer: | Fiber Glass Or Stainless Steel |
| Loading Capacity: | 8 Tons, 10 Tons, 12 Tons | Engine: | YUCHAI Brand, Diesel Engine |
| Steering Wheel: | Left Or Right Hand Drive | Drive Type: | 4x2, Or 4X4 All Wheel Drive, Off Road Truck Chassis |
| High Light: | Refrigerator Box Truck 10Tons,HOWO 4x4 AWD Refrigerator Box Truck |
||
Refrigerator Truck Description:
Refrigerated trucks are often used to transport frozen food (refrigerated trucks), dairy products (dairy trucks), chemical products, vegetables and fruits (fresh goods trucks), vaccines and medicines (vaccine trucks), electronic products, flowers, high-end furniture, etc.
Advantages of Insulated Freezer Van truck :
1. The whole vehicle is manufactured with the latest international technology and new process, and
has good thermal insulation performance. Beautiful appearance and high overall strength. The car body is insulated, has strong thermal insulation, high flatness, good impact resistance, and has good corrosion resistance and aging resistance to the atmosphere, water, acid, alkali, salt and other media.
2. The refrigerated car body adopts the overall skeleton "sandwich" board bonding process, and the inner and outer wall panels are made of domestic high-quality machine-made glass fiber reinforced plastic or color steel plate; the intermediate insulation material is imported polyurethane with a thickness of 8mm; FRP has good thermal insulation and high overall strength; optional ventilation slots are installed on the bottom of the cabin, which facilitates the circulation of cold air throughout the vehicle and maintains a balanced temperature in the cabin.
3. There are well-known domestic and imported units for the refrigeration unit, and the temperature can reach the cryogenic requirements. The unit has the characteristics of simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and convenient installation and maintenance.
4. Environmentally friendly material Thickened insulation Easy to clean Temperature adjustment Rapid cooling Strong bearing capacity Long-lasting constant temperature
Speicfiation:
| Euro III LHD HOWO 4X4 10t refrigerated truck | ||
| Chassis | ||
| Chassis brand | Sinotruk HOWO | |
| Cabin | LHD, 2080, 3 seats with one sleeper | |
| Have heater, no A/C | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7600*2300*3300 |
| Wheel base (mm) | 4500 | |
| Wheel track (front/rear) (mm) | 1160/2335 | |
| Approach/Departure angle(°) | 18/18(°) | |
| Weight in KGS | Tare Weight (kg) | 5700 |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | YUCHAI Disel |
| Model | YC130 | |
| Horse Power(HP) | 130 | |
| Emission standard | Euro III, 3800 ml | |
| Gearbox | WLY6T53, 6 forwards gear&1 rear gear | |
| Tire | 8.25R16 ,6 tires including 1 spare tire | |
| Refrigerating body | ||
| Refrigerated body size | 5200×2300×2400(mm) | |
| Loading capacity of refrigerated body | 8t~10t | |
| Refrigerated body |
Out surface and inner surface use FRP material insulating layer in the middle: polyester fiber |
|
| Thickness | 80mm | |
| Temperature can reach | -1℃~-18℃ | |
| Keep temperature time | 24 hours, keep temperature the same | |
| Brand of refrigeration unit | Famous brand Thermo King | |
| Door | Rear door open & Side Door Open | |
| Application | Used for transporting flowers, fruit Seafood, meat, fish, vegetable, fresh milk etc. | |
| Our advantage |
1. Keep the temperature less than 1℃ within 24 hours, so you can transport your meat/fish/chicken meat for long distance. 2. Big horse power engine YUCHAI Diesel Engine 130HP, Or Cummins 154hp for option, can lower temperature within half an hour, can save your time a lot. 3. Use the polyester fiber material as the insulating layer, can keep temperature more longer. |
|

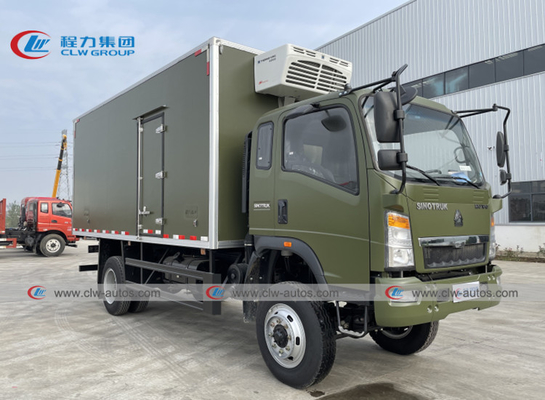

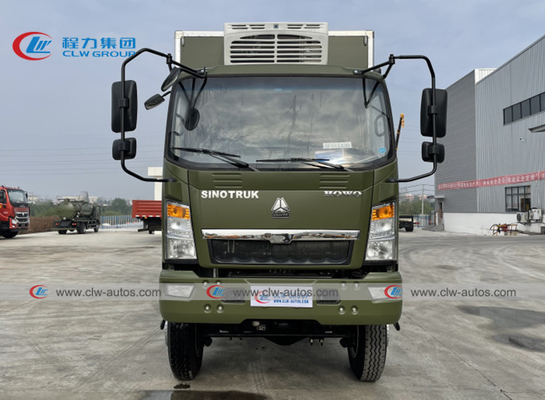

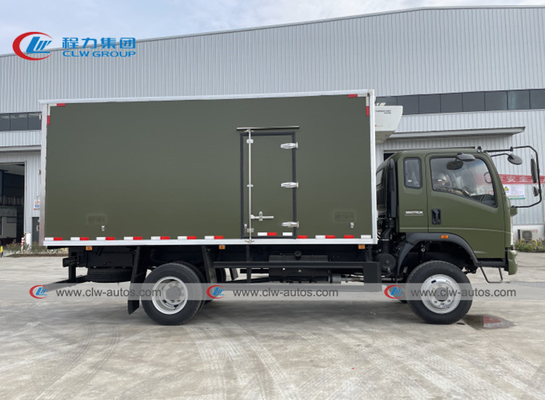

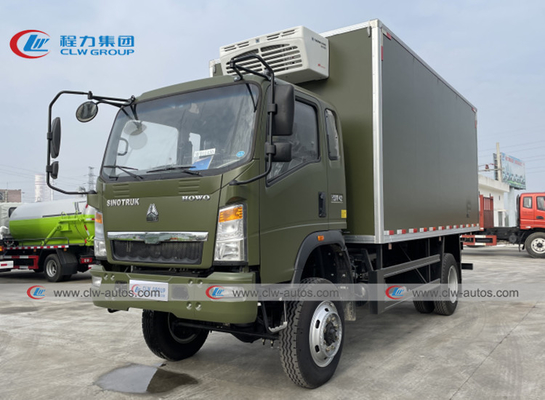

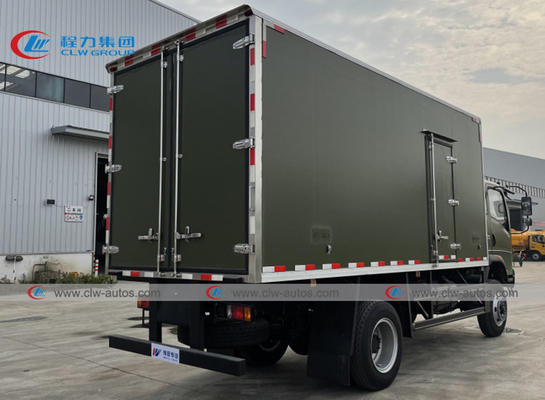

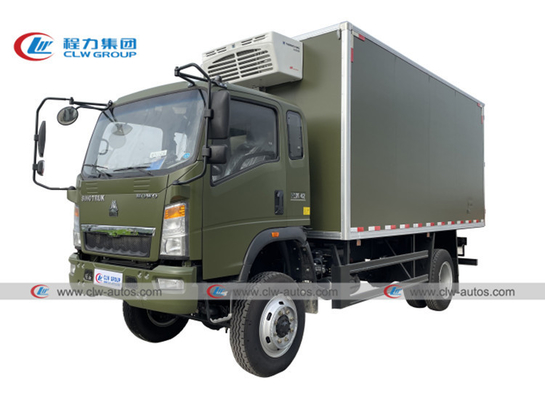

More Pictures:
Manufacturing technology of insulated box body: Wet and dry combination method, Sandwich compartment structure:
1. Glass fiber (laminated felt, chopped felt, etc.) No alkali cutting felt, with coupling agent, good wetting, aging resistance
2. Rigid flame retardant polyurethane Material features: Fluoro-free polyester foam Density: 40 ~ 42 kg/m3 Compressive strength: 0.25~0.30MPa Thermal conductivity: 0.021w/ m.K Obturator porosity: 90%~95%
3. Plate making equipment: Draw lessons from German craft to make the plate, the dry-wet method is formed, the pressurized heating is pumped to form the completely closed structure. The length of the board can be 14.4m and the width 2.96m.
4. structure: Unique Z-type reinforcement structure is used in the box plate. The inner and outer surfaces are supported by fiberglass and are very smooth. The inner core is made of rigid polyurethane foam.
5. Box sealant:
