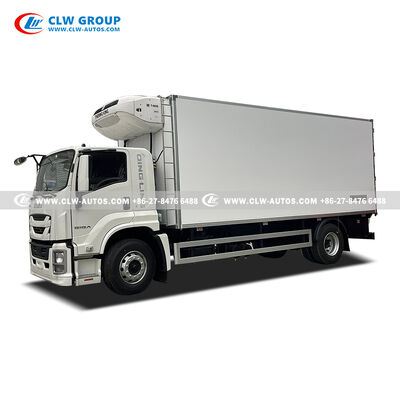

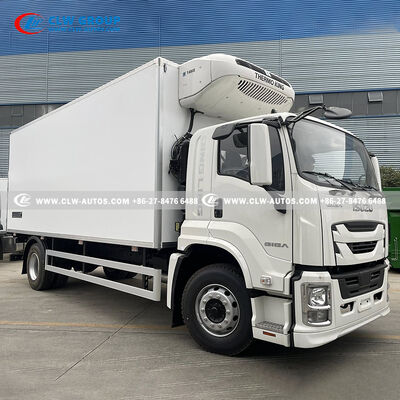

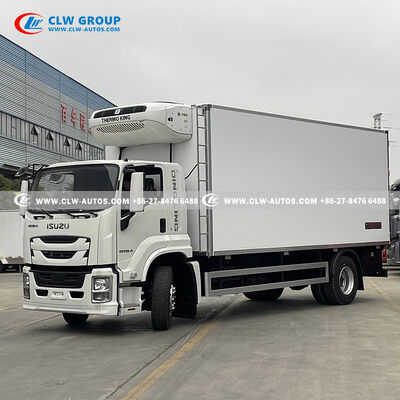

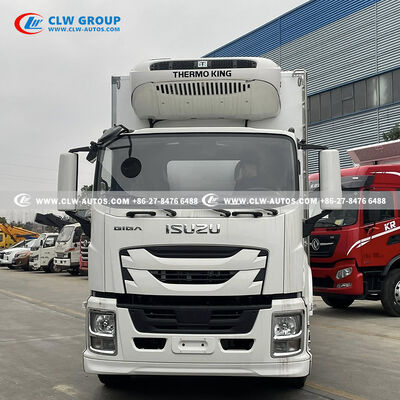

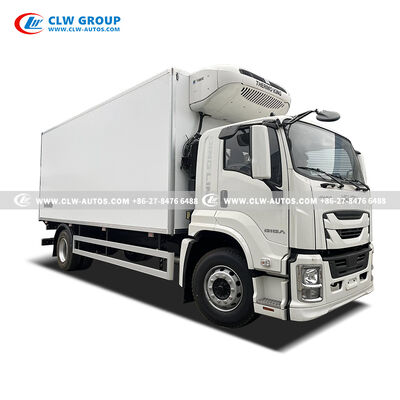

ISUZU 4x2 240HP Refrigerated Van Truck with 41.5 m³ Capacity and THERMO KING T-800 Cooling System

Name: ISUZU 4x2 240HP Refrigerated Van Truck with 41.5 m³ Capacity and THERMO KING T-800 Cooling System
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 135,963.00 USD
Availability: InStock

Large Image : ISUZU 4x2 240HP Refrigerated Van Truck with 41.5 m³ Capacity and THERMO KING T-800 Cooling System

Product Details:

Contact Now

Detailed Product Description

Highlight:

240HP Refrigerated Van Truck

41.5 m³ Capacity Refrigerated Box Truck

THERMO KING T-800 Cold Chain Delivery Truck

ISUZU 4x2 240HP Refrigerated Van Truck

The ISUZU FVR 4x2 Refrigerated Van is a top-tier transport solution designed for uncompromising performance in temperature-controlled logistics. It pairs ISUZU's dependable 240HP Euro VI platform with a high-capacity, precision THERMO KING cooling system to ensure the secure, timely, and fresh delivery of perishable cargo over short or long hauls.

Product Overview

Built to master the challenges of modern cold chain transport, the ISUZU FVR 4x2 Refrigerated Van stands as a benchmark for reliability and efficiency. It brings together ISUZU's proven truck engineering with state-of-the-art refrigeration technology to protect sensitive goods—from frozen items to fresh chilled products—throughout their journey. This vehicle is engineered to keep your cargo in ideal condition, trip after trip, making it a vital tool for professional supply chains.

Standout Attributes

Robust and Economical Driveline: Driven by the efficient and durable ISUZU 6HK1-TCG61 Euro VI diesel engine, producing 240 HP for dependable power and enhanced fuel savings. An 8-speed manual gearbox and toughened chassis provide steadfast and economical performance, even when fully laden.
Accurate Climate Management: Integrated with a high-performance THERMO KING T-800 cooling unit. Capable of maintaining a tightly controlled temperature spectrum from -18°C to +20°C, accommodating everything from frozen staples to temperature-sensitive fresh items.
High-Capacity, Energy-Efficient Body: Delivers ample load space with interior measurements of 6800L x 2440W x 2500H mm (approximately 41.5 m³). The body is built with a resilient FRP exterior and 8 cm of dense polyurethane foam insulation, ensuring outstanding thermal retention, reduced energy consumption, and lower ongoing costs.
Ergonomic and Functional Cabin: The roomy one-and-a-half-row FVR cab is tailored for all-day comfort and efficiency. Comes with power steering, climate control, a customizable driver's seat, and central locking to minimize driver fatigue and enhance control during extended routes.
Engineered for Safety and Longevity: Safety is reinforced with air brakes, a heavy-duty clutch, and large 295/80R22.5 tires for assured handling. Durable construction includes one-piece, rust-resistant panels and stainless-steel door hardware, promoting a long operational life with straightforward upkeep.

Ideal Uses

This refrigerated van is a versatile workhorse for sectors requiring strict temperature management:

Food & Beverage Supply Chain: Frozen commodities, fresh & chilled products, and commercial distribution to grocery stores, restaurants, hotels, and catering facilities.
Healthcare & Pharmaceutical Transport: Temperature-critical medicines, vaccines, and medical equipment requiring strict climate control.
Specialized Cargo Needs: Sensitive shipments including high-value electronics, specialty chemicals, and floral logistics.

Product Specification

Parameter	Specification
Condition	New condition/Left hand drive/4X2
Brand	ISUZU
Wheelbase	5550 mm
Overall Dimensions	1000025503850 mm
Gross Weight	18,000 kg
Front/Rear Axle Loading	6300/13000 kg
Max. Driving Speed	105 km/h
Clutch	Reinforced diaphragm clutch
Brakes	Air brake
Steering Gear	Power steering, hydraulic steering with power assistance
Tire Specifications	295/80R22.5 (6 pcs with one spare tire)
Transmission	Manual type, MLD 8 forward gears & 1 reverse
Cabin Features	FVR spacious cabin, one row and a half cab, adjustable driver seat, central lock, air condition
Engine Model	6HK1-TCG61
Fuel Type	Diesel
Displacement	7790 ml
Power	175 kW at 2600 rpm (240 HP)
Cylinder Number	6
Emission Standard	Euro VI
Van Box Dimensions	680024402500 mm
Van Material	FRP, 8 cm thick PU inside
Temperature Range	-18°C to +20°C (customizable based on requirements)
Refrigeration Unit	THERMO KING T-800
Rear Door Type	Full Size Double Opening Rear Door

Optional Equipment: Refrigeration brands (Carrier, Thermoking, DAlKlN), rear vision camera, aluminum flooring, hanging system, dual temperature, multi compartment.
