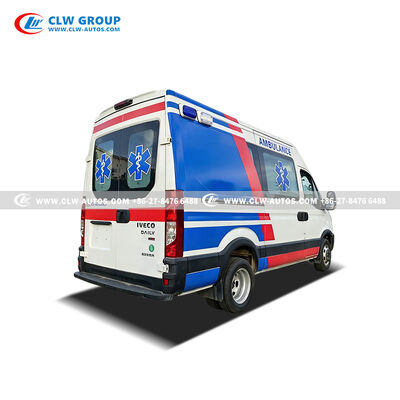

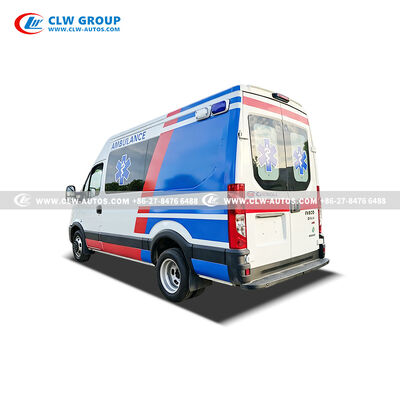

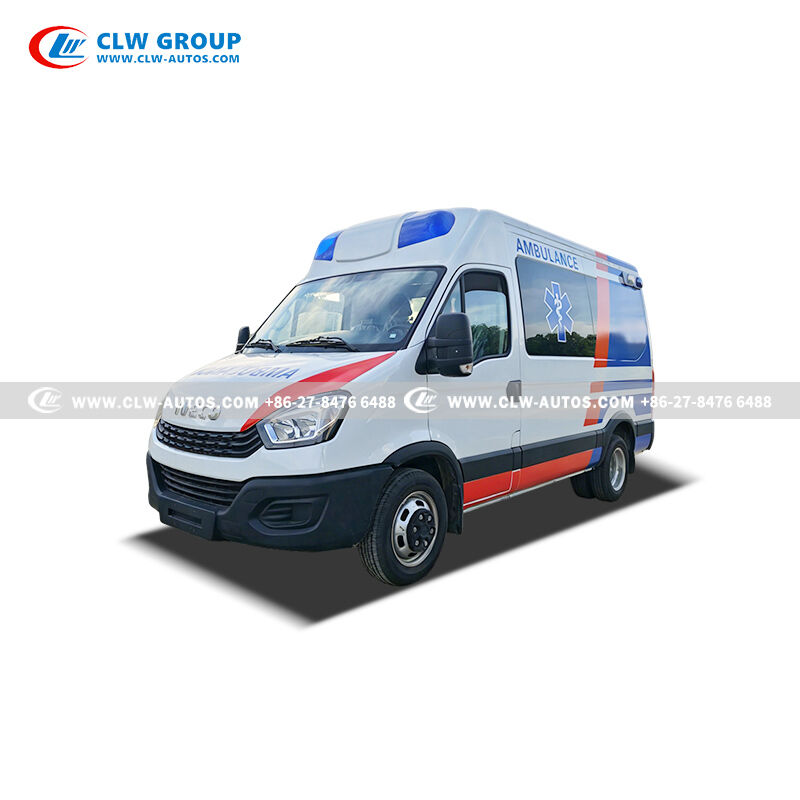

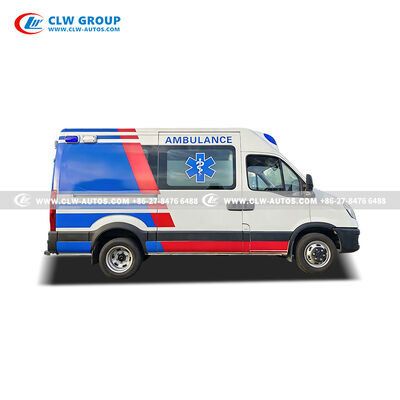

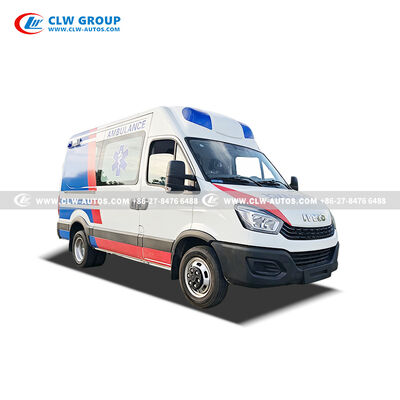

IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher

Large Image : IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	SINOTRUK HOWO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35600
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Engine Model:	F1A / SOFIM Advanced Turbocharged Diesel Engine
Fuel Type:	Diesel	Displacement:	2.0L - 3.0L
Emission Standard:	Euro 5 / Euro 6 Compliant	Transmission:	Manual 5/6-Speed (Automatic Optional)
Brake System:	4-Wheel Disc Brakes With ABS	Oxygen Cylinders:	2 Units Of 10L High-pressure
Power Inverter:	500W Pure Sine Wave	Power Sockets:	4 Units Of 220V
Stretcher Material:	High-strength Aluminum
Highlight:	IV-ECO ambulance with automatic stretcher , patient transfer ambulance with loading system , Prime Mover Truck medical transport vehicle

IVE-CO Patient Transfer Ambulance Transport Type Emergency Vehicle

IVE-CO Advanced Mobile Clinic Ambulance - Fully Equipped Transport Type Emergency Vehicle
Engineered by CLW GROUP, this premium IV-ECO Transport-Type Ambulance combines professional medical configuration with high-performance mobility. It delivers a safe, hygienic, and highly responsive environment for medical transit and urgent patient transfers.

Key Product Highlights

Integrated Power & Control System

500W High-Efficiency Inverter: 1 unit onboard to support critical medical hardware
22V Power Sockets: 4 multi-purpose units strategically placed for easy equipment access
Central Control Panel: Features integrated control system with individual switches for ventilating fan, 220V indicator light, air-conditioning, and warm wind

Technical Specifications

Category	Item	Detailed Specifications
Vehicle Overview	Manufacturer	CLW GROUP
	Drive Type	4x2 Rear-Wheel Drive (4x4 optional for off-road demands)
	Overall Dimensions	Approx. 5670 × 2011 × 2740 mm (Subject to final layout)
	Gross Vehicle Weight (GVW)	4,000 kg
	Seating Capacity	7-8 seats (Flexible medical crew layout + patient bed area)
Chassis & Engine	Chassis Brand	IVEC-O High-Rigidity Special Chassis
	Engine Model	F1A / SOFIM Advanced Turbocharged Diesel Engine
	Fuel Type / Displacement	Diesel / 2.0L - 3.0L High-Efficiency Turbo
	Emission Standard	Euro 5 / Euro 6 Compliant (Tailored to destination country)
	Transmission	Manual 5/6-Speed (Smooth Automatic Transmission optional)
Oxygen Supply System	Oxygen Cylinders	2 units of 10L high-pressure medical oxygen cylinders
	Pressure Valves	Equipped with premium dual-gauge pressure reducing valves
	Cylinder Cabinet	Dedicated secure oxygen cylinder cabinet on front right side
Power & Control	Power Inverter	1 unit of 500W pure sine wave inverter for medical devices
	Power Sockets	4 units of 220V standard medical-grade power sockets
	Central Control Panel	Integrated cabin electrical switchboard with safety indicators
Patient Transit	Stretcher System	1 automatic loading stretcher built from high-strength aluminum
	Infusion Rails	1 overhead heavy-duty infusion slide rail with 2 hooks
	Safety Handrails	Ergonomic yellow high-visibility safety grab rail on top
Cabin Environment	Ventilation System	1 high-power electric cabin exhaust/ventilation fan
	Sterilization System	1 built-in ultraviolet (UV) air disinfection lamp
	Partition Assembly	High-polymer partition wall with upper movable sliding window
	Floor Assembly	Eco-friendly laminated wood with wear-resistant medical flooring
	Floor Properties	Flame-retardant, anti-slip, mildew-resistant, acid/alkali-resistant
	Cabinet Assembly	Flat-window medical equipment storage cabinet on rear left side
	Auxiliary Seats	1 doctor single seat + 1 two-person long bench with seat belts
Alert & Visuals	Warning Lights	Long row of high-visibility LED warning lights on front roof
	Siren System	100W multi-tone electronic siren with handheld control mic
	Exterior Markings	Customizable First Aid decals, colors, and logos on request
	Medical Waste	1 integrated, easy-to-clean specialized waste bin
Safety Equipment	Fire Safety	Heavy-duty fire extinguisher stored in rear medical cabinet

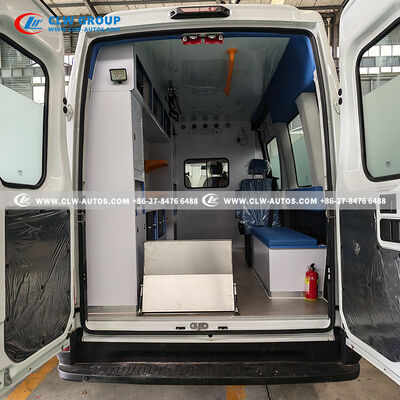

Professional Patient Care & Medical Systems

Gas Supply System: 2 units of 10L medical oxygen cylinders with precise pressure-reducing valves
Oxygen Cylinder Cabinet: Safely integrated into the front right side of the medical compartment
Equipment Storage: Flat-window medical equipment storage cabinet on rear left side
Advanced Stretcher System: Automatic loading stretcher made of high-strength aluminum alloy for smooth operation

Safety, Hygiene & Ergonomic Design

Full Partition Wall: High-polymer partition with movable sliding window separating driver and medical cabin
Seamless Communication: Built-in Intercom System for two-way communication between driver and medical crew
Medical-Grade Flooring: Corrosion-resistant laminated wood with flame-retardant, anti-slip, mildew-resistant properties
Flexible Seating: 1 single seat and 2-person bench with safety belts on left side
Ergonomic Fittings: Overhead infusion slide rail with hooks, yellow safety handrail, and integrated waste bin

Alert & Sterilization Systems

Warning System: Front-roof LED warning lights with 100W siren and handheld control
Sterilization System: Built-in ultraviolet (UV) disinfection lamp for cabin hygiene
Ventilation System: High-power electric ventilation fan
Customizable Exterior: First Aid markings, colors, and logos fully customizable to client requirements
