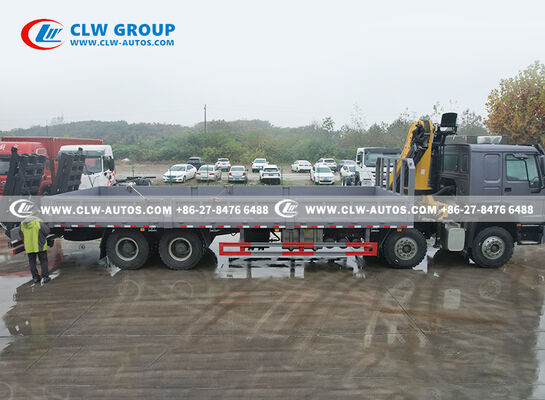

HOWO 8x4 Service Truck with 10-Ton XCMG Knuckle Boom Crane and Hydraulic Access Ladder for Heavy Lifting

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

HOWO 8x4 Service Truck with 10-Ton XCMG Knuckle Boom Crane and Hydraulic Access Ladder for Heavy Lifting

Detailed Product Description
Overall Length: 14000 Mm Overall Width: 3000 Mm
Overall Height: 3900 Mm Tare Weight: 22800 KGS
Max Lifting Capacity: 1000kg Max Hydraulic Outreach: 12.75 M
Slewing Angle: 410°/360° Continuous Max Driving Speed: 95 Km/h
Engine Power: 294 Kw Engine Displacement: 12L
Highlight:

HOWO 8x4 service truck with crane

,

10-ton XCMG knuckle boom crane

,

hydraulic access ladder service truck

HOWO 8x4 Service Truck – 10-Ton XCMG Knuckle Boom Crane & Hydraulic Ladder for Self-Contained Heavy Lifting & Transport
Product Overview

The HOWO 8x4 Service Truck is a self-sufficient heavy-duty vehicle integrating a 10-ton XCMG knuckle boom crane and hydraulic access ladder on a robust HOWO 8x4 chassis. This multi-role asset eliminates dependence on external cranes for loading/unloading, providing all-in-one lifting, hauling, and personnel access capabilities.

Key Benefits
  • Improved operational efficiency
  • Reduced equipment costs
  • Single crew operation
  • Self-sufficient field operation
Key Features
  • HOWO 8x4 Heavy-Duty Chassis: 8x4 drive for stability and traction, powerful diesel engine, reinforced frame for crane and cargo loads
  • 10-Ton XCMG Knuckle Boom Crane: Articulating folding boom for precise load placement over obstacles, compact stowage with minimal cargo area intrusion
  • Hydraulic Access Ladder: Safe, stable personnel access with quick deployment for cargo securing and inspection
  • All-in-One Lifting & Hauling: Transport heavy equipment with self-contained loading/unloading capabilities
  • Versatile Multi-Role Capability: Suitable for power utility, construction, industrial maintenance, recovery, and emergency services
Applications
  • Power utility (transformer transport, cable reel handling, pylon installation)
  • Construction and infrastructure (structural components, pipes, equipment)
  • Industrial maintenance and logistics (heavy machinery, presses, generators)
  • Recovery and emergency services (equipment recovery, disaster response)
  • Remote field operations with limited infrastructure
Main Dimensions
Overall Length Approx. 14000 mm
Overall Width 3000 mm
Overall Height Approx. 3900 mm
Tare Weight Approximate 22800 KGS
XCMG Knuckle Crane Specifications
Brand XCMG
Model number SQSZ200-4
Extendable boom section 5
Boom Type Knuckle type
Max. Lifting Moment 210 kN.m
Max. Lifting capacity 1000kg
Max. Hydraulic outreach 12.75 m
Slewing angle 410°/360° continuous
Stabilizer spread 5608mm
Max. operating pressure 30Mpa
Oil tank capacity 160
Bare weight 3169
Cargo Body Details
Front fence 3 mm Checkered Plate
Dimension 9500x3000x550mm
Material Manganese steel, Anti-slip pattern plate
Material Thickness Bottom: 8 mm
Hydraulic Ladder
Hydraulic cylinder 1 unit per ladder
Dimension Length 3800 mm, width 800mm
Chassis Specifications
Condition New condition/Left hand drive/8x4
Brand SINOTRUK
Model HOWO
Front/Rear Axle loading 9500/9500/16000/16000 kg
Wheelbase 1800+4600+1350 mm
Max. driving speed 95 km/h
Clutch Reinforced diaphragm clutch
Brakes Service brake: dual circuit compressed air brake
Parking brake: spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 12 pcs with one spare tire
Tire Specifications 12.00R20 18PR
Transmission Manual type, HW19710, 10 Forwards and 2 reverses
Cab Cabin with one sleeper (berth), Air-conditioner, safety belts etc.
Fuel Tank 1 unit 400L with 1 unit 600L
Engine Specifications
Model WP12S400E201
Fuel type Diesel
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement 12L
Power 294 kw
Horsepower 400 HP
Cylinder number 6
Emission standard Euro 2
Additional Details
  • Mudguards
  • Spare tire carrier
  • One unit truck chassis tool
  • Anti-rust metallic paint, Color is optional

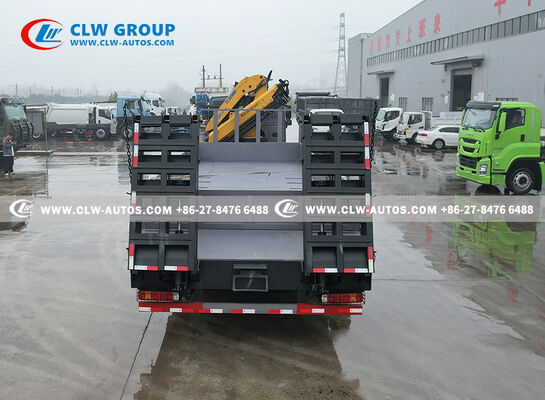

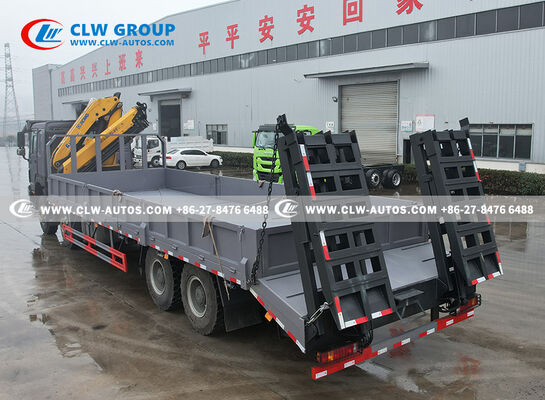

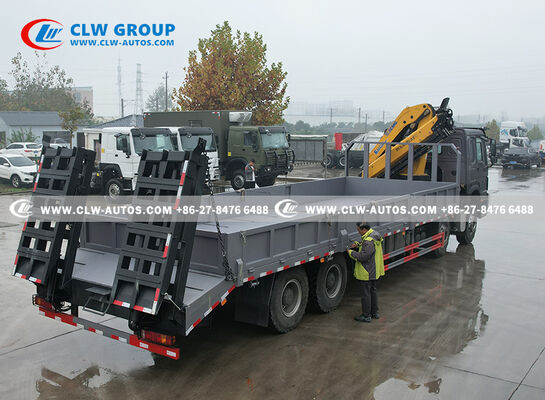

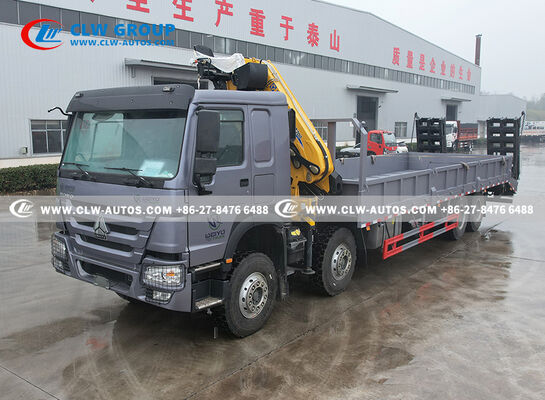

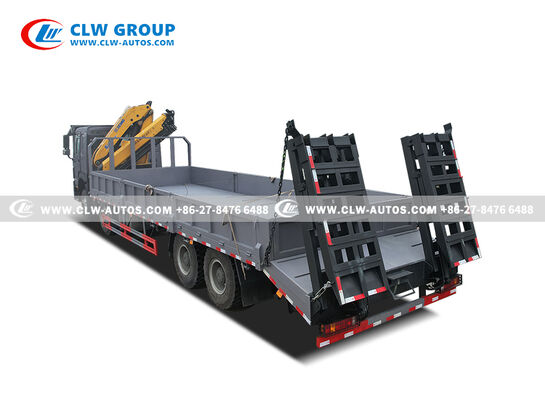

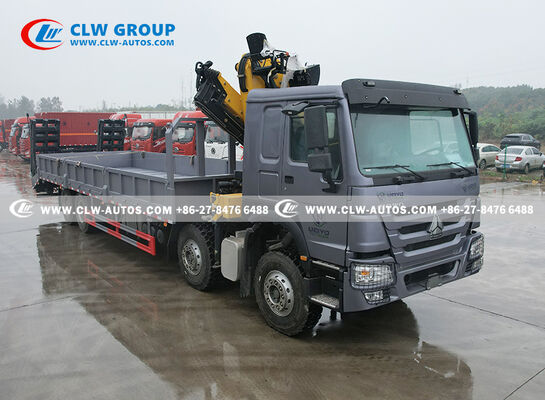

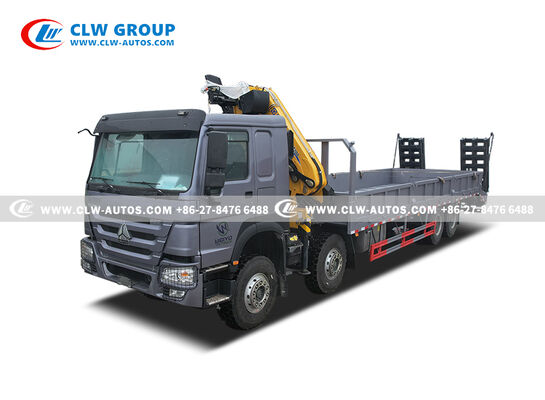

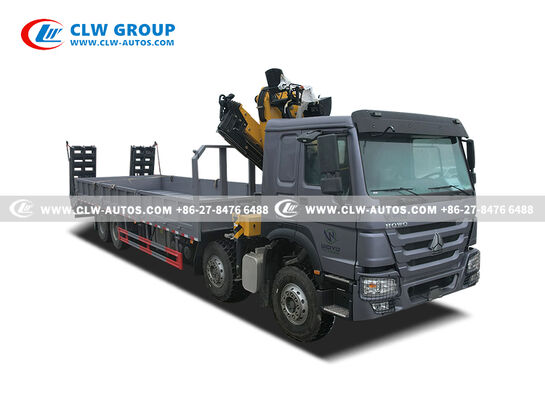

Product Gallery
