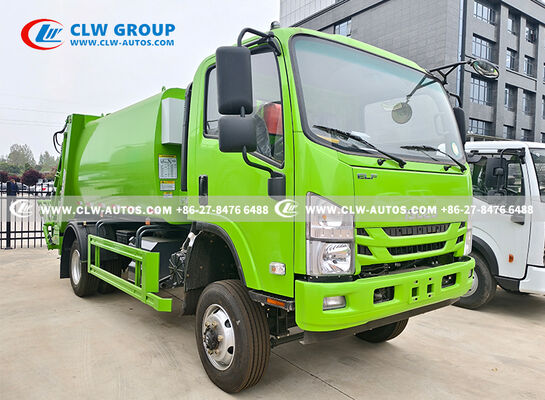

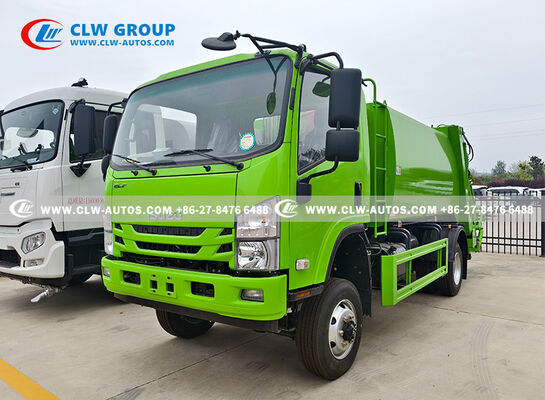

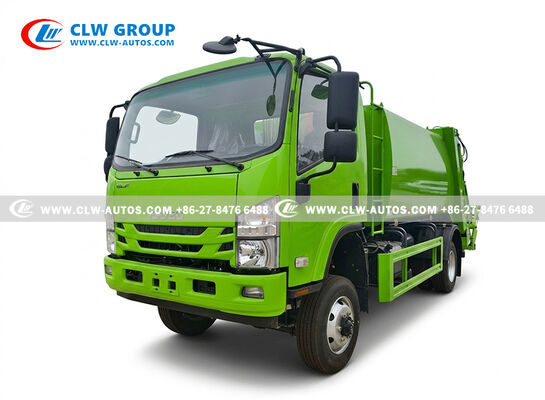

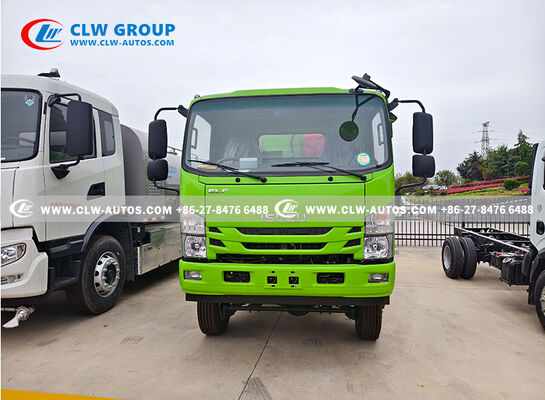

I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume

Large Image : I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	Compactor Garbage Truck

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20000
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Wheelbase:	3815 Mm
Engine Model:	4HK1-TCG61	Horsepower:	190 HP
Gearbox:	6 Forward Speeds + 1 Reverse	Gross Vehicle Weight:	11000 Kg
Front Axle Loading:	4000 Kg	Rear Axle Loading:	7000 Kg
Tire Size:	235/75R17.5 16PR	Compaction Volume:	9 M³
Body Material:	High-strength Wear-resistant Steel
Highlight:	I-SUZU 700P garbage compactor truck , 4x4 RHD garbage truck 190hp , 9m³ compaction volume garbage truck

I-SUZU 700P 4x4 RHD Compactor Garbage Truck 190HP

This I-suzu 700P 4x4 right-hand drive compactor garbage truck is purpose-built for reliable waste collection and compaction in urban, suburban, and rugged environments. Powered by a 190HP I-suzu diesel engine, it delivers robust performance paired with professional compaction capabilities to maximize operational efficiency.

Technical Specifications

Chassis Specifications
Product Name	I-SUZU 4x4 Compactor Garbage Truck (9m³)
Cab	Single row cabin, Right Hand Drive (RHD), with A/C
Wheelbase	3815 mm
Engine Model	4HK1-TCG61
Horsepower	190 HP
Emission Standard	Euro VI
Gearbox	6 forward speeds + 1 reverse
Gross Vehicle Weight	11000 kg
Front/Rear Axle Loading	4000 kg / 7000 kg, with ABS
Tires	235/75R17.5 16PR, 6 units + 1 spare
Drive Type	4x4
Superstructure Specifications
Compaction Volume	9 m³

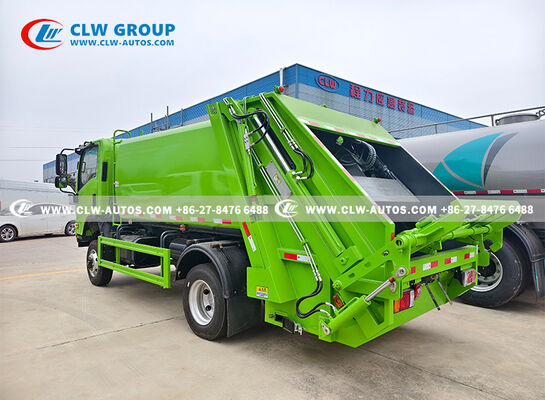

Compaction Mechanism	Hydraulic scraper + sliding plate system

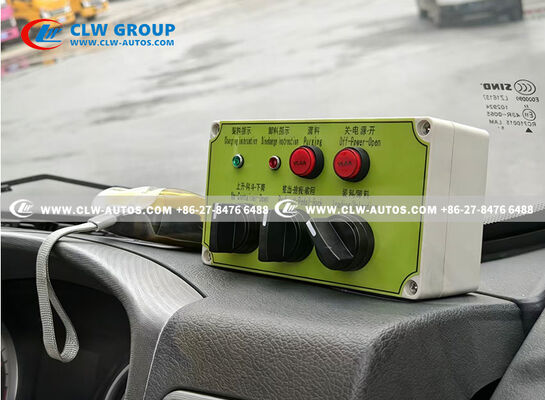

Control Mode	Wired + wireless remote control
Core Functions	Single cycle / Continuous cycle / Reverse cycle
Body Material	High-strength wear-resistant steel

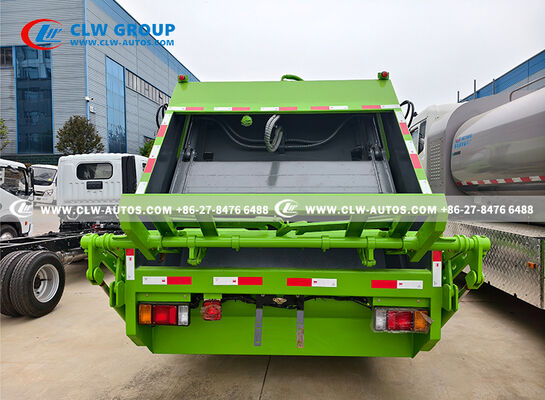

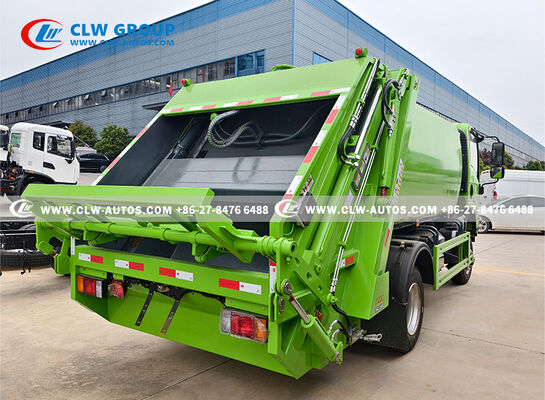

Tailgate Operation	Hydraulic lifting and lowering, fully sealed
Waste Compaction	High compression ratio to maximize loading capacity
Operation Safety	Emergency stop button, overload protection

Product Gallery

Key Features

Chassis & Powertrain: Built on the durable I-suzu 700P 4x4 chassis with a 190HP diesel engine, offering excellent traction and power for both on-road and off-road waste collection tasks. The right-hand drive configuration ensures compliance with regional traffic regulations.
Compaction System: Equipped with a high-efficiency hydraulic compaction mechanism (max compression pressure up to 6 tons) that increases waste density, doubling the effective loading capacity compared to standard garbage trucks. Supports single-cycle, continuous-cycle, and reverse-cycle operations via wired and wireless remote control.
Operation Flexibility: Dual control modes (cab-integrated panel + wireless remote control) enable safe, one-person operation. The system supports functions including tailgate lifting/lowering, scraper opening/closing, and sliding plate up/down movements for versatile workflow management.
Durable Construction: The compactor body is made of high-strength steel with reinforced wear-resistant plates, designed to withstand continuous compression cycles and corrosive waste materials. The sealed body prevents leaks and odors during transport.
User-Friendly Cab: Ergonomically designed driver's cabin with comfortable seating, clear controls, and good visibility, ensuring long-shift comfort for operators.

Applications

Ideal for municipal waste management, residential and commercial waste collection, and sanitation services in regions requiring right-hand drive vehicles. The 4x4 capability also makes it suitable for challenging terrains such as construction sites, rural areas, and mountainous regions.
