Sinotruk HOWO 10-Ton Refrigerated Truck with Thermo King RV-1200S for Right-Hand Drive Cold Chain Logistics

Detailed Product Description
Chassis Type: 4x2 Overall Dimensions: 8000×2400×2750mm
Wheelbase: 5200mm Gross Weight: 12,000kg
Loading Weight: 10,000kg Engine Model: YC4E160-33
Engine Power: 160HP Engine Displacement: 4.3L
Emission Standard: Euro III Transmission: HW90510C2 10-speed Manual

Sinotruk HOWO RHD 4x2 10-Ton Refrigerated Truck – Thermo King RV-1200S Chilled Lorry
Product Overview

This 10-ton refrigerated truck features a 5,200mm wheelbase, Yuchai 160HP Euro III-compliant diesel engine, and right-hand drive configuration, making it ideal for urban and regional logistics in markets like Southeast Asia and Africa. Equipped with a 6.5-meter insulated cargo box and Thermo King RV-1200S independent refrigeration unit, it ensures precise temperature control from -20°C to +30°C for perishable goods with strict thermal requirements.

Key Features
  • Sinotruk HOWO 4x2 RHD Chassis: 5,200mm wheelbase, 2,080mm one-and-a-half-row cabin, RHD, A/C, power assisted steering. GVW 12,000kg, loading 10,000kg. 9.00R20 16PR tires (6+1 spare). 220L iron fuel tank.
  • Yuchai 160HP Euro III Engine: YC4E160-33, 160HP, 4.3L, Euro III. HW90510C2 10-speed manual transmission. Front axle 3,600kg, rear axle 10,500kg.

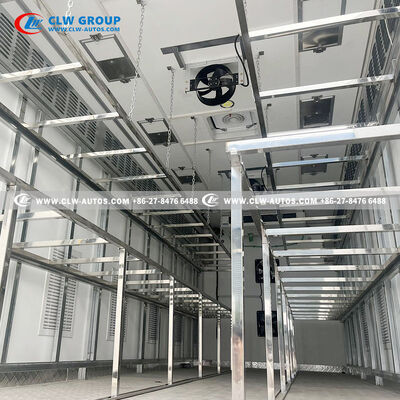

  • 6.5m Insulated Cargo Box: 6,500×2,400×2,450mm. Polyurethane foam insulation (K-value ≤0.3 W/m²*K), 40% lighter than metal structures.
  • Thermo King RV-1200S Refrigeration: Independent unit, -20°C to +30°C range. Rapid cooling in 30 minutes. 15% fuel savings. 2,000-hour maintenance intervals.
  • Smart Temperature Monitoring: IoT sensors for real-time tracking with alerts for deviations. GDP-compliant ±2°C accuracy.

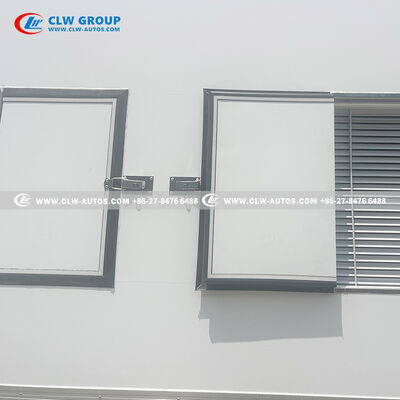

  • Multi-Zone Airflow: Adjustable vents prevent cold-air blockage. Uniform cooling with full loads. Low-noise operation (<68 dB).
  • Optional Equipment: 1-ton hydraulic tail plate, side slots, ventilation slots, meat hooks.
Applications
  • Pharmaceutical transport (GDP-compliant ±2°C for vaccines)
  • Agricultural support (fruits, vegetables, seafood from farms to processing centers)
  • Urban food distribution (supermarkets, restaurants, cold chain logistics)
  • Dairy, meat, and frozen goods transport
  • Emergency services (mobile cold storage during disaster relief)
Technical Specifications
Parameter Specification
Driving type 4X2
Overall dimension 8000*2400*2750mm
Wheelbase 5200mm
Gross weight 12,000kg
Loading weight 10,000kg
Cabin 2080mm one row and half cabin; Right hand driving; With air conditioning; Power assisted steering
Engine model YUCHAI, YC4E160-33
Horsepower 160hp
Displacement 4.3L
Emission standard Euro III
Transmission HW90510C2; Manual; 10 forward gears and 2 reverse
Front/rear axle loading 3,600kg/10,500kg
Speed ratio 4.875
Tyre 9.00R20 16PR
Oil tank volume 220L, iron material
Suspension 9/12+9H
Max driving speed 95km/h
Van dimension 6500*2400*2450mm
Refrigerator THERMO KING RV-1200S; independent refrigeration unit
Temperature range -20°C to +30°C

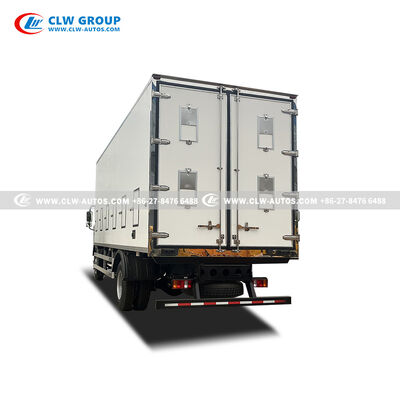

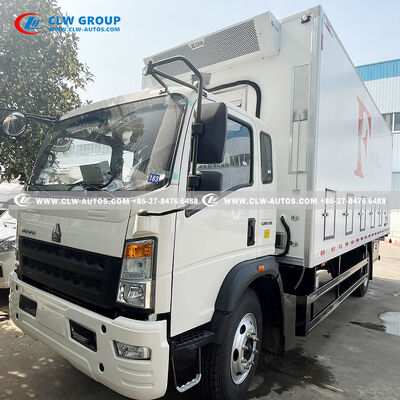

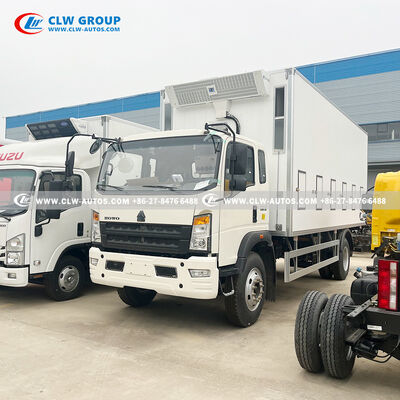

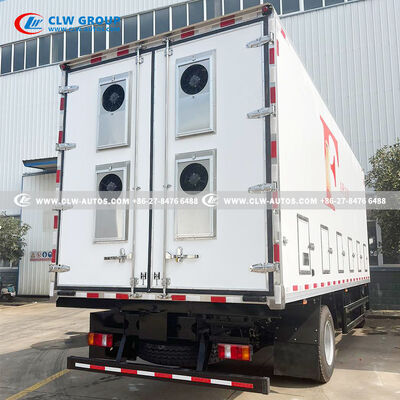

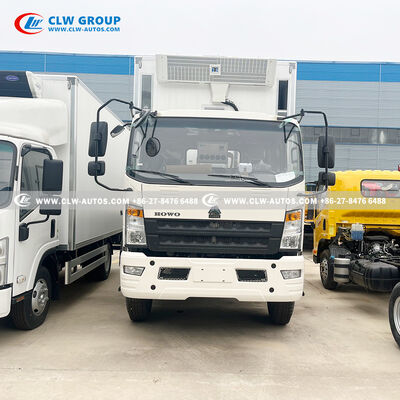

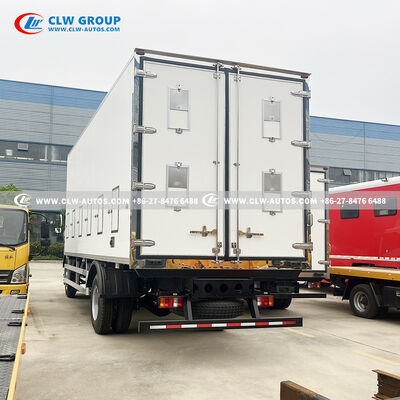

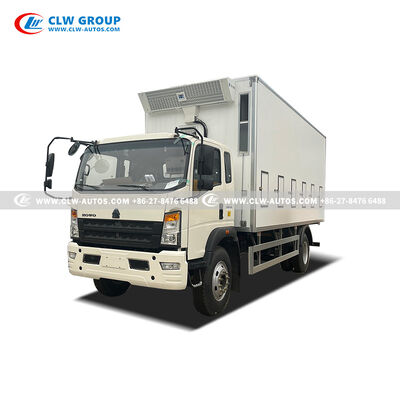

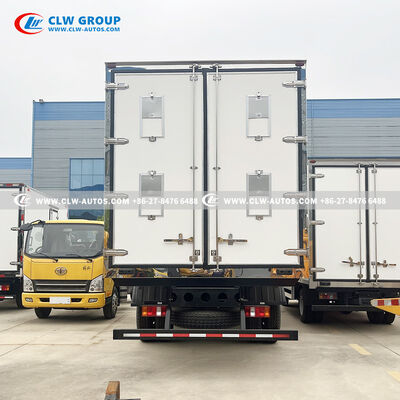

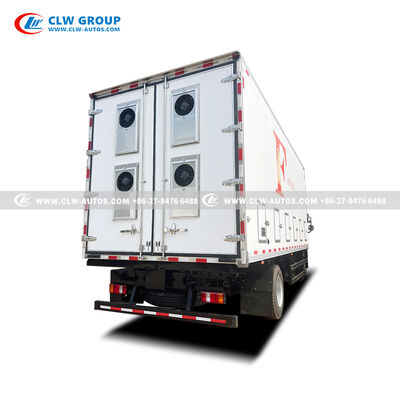

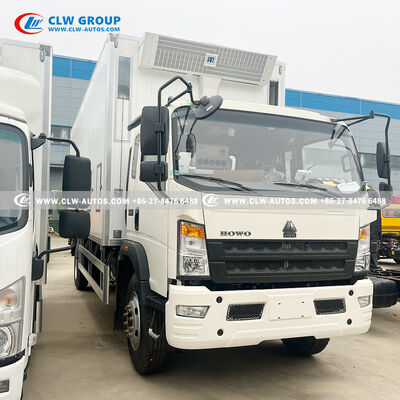

Product Gallery
