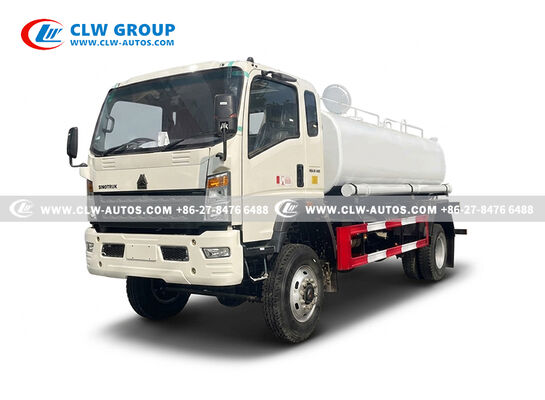

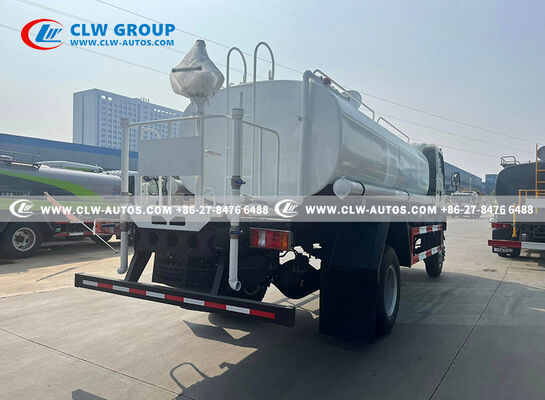

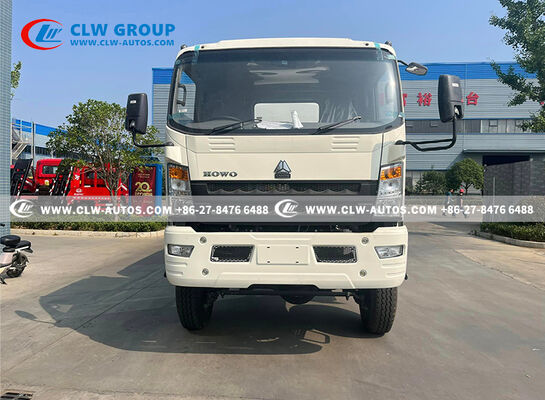

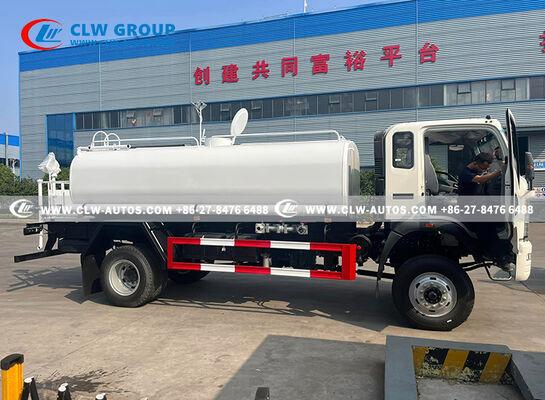

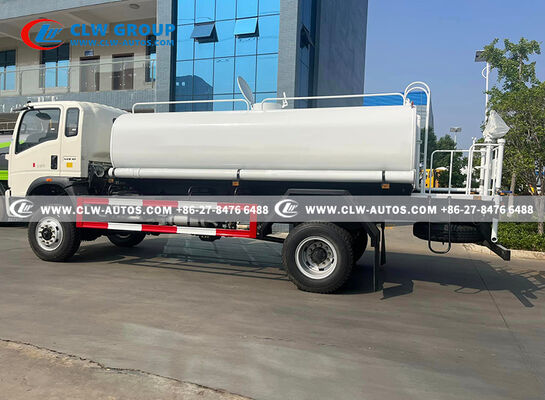

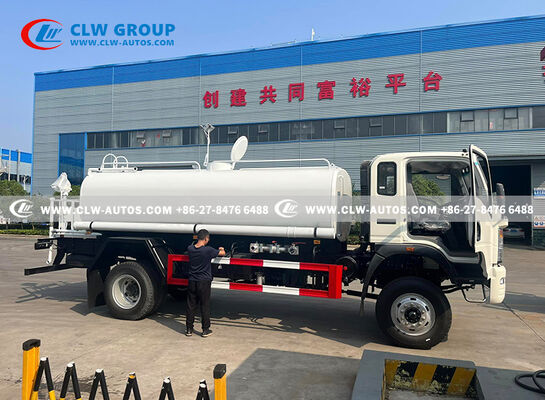

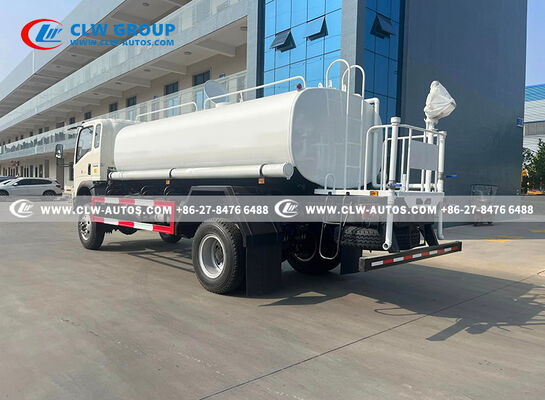

Sinotruk HOWO 4×4 All-Wheel Drive Water Sprinkler Truck with 10,000-liter Capacity and Yuchai 160HP Engine

Large Image : Sinotruk HOWO 4×4 All-Wheel Drive Water Sprinkler Truck with 10,000-liter Capacity and Yuchai 160HP Engine

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW Group
Model Number:	HOWO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Drive Type:	4×4 All-Wheel Drive	Engine Power:	118kW (160HP)
Max Torque:	550N*m	Tank Volume:	10,000L (10m³)
Tank Material:	Q235 Carbon Steel	Pump Flow Rate:	60m³/h
Pump Head:	90m	Water Cannon Range:	>35m
Gross Vehicle Weight:	14,000kg	Overall Dimension:	7,850 × 2,340 × 3,100mm
Highlight:	4×4 All-Wheel Drive Water Sprinkler Truck , 10 , 000-liter Capacity Water Bowser Truck

Sinotruk HOWO 4*4 10000L Water Sprinkler Truck

The Sinotruk HOWO 4*4 water sprinkler truck is purpose-built for off-road and rough-terrain watering operations where conventional 4*2 trucks cannot operate. Built on a Sinotruk HOWO all-wheel-drive chassis and powered by a 160HP Yuchai diesel engine, this truck carries a 10,000-liter Q235 carbon steel tank and a Weilong self-priming centrifugal pump delivering 60m³/h flow.

The multi-directional spray system includes front flush, rear spray, side sprinklers and a 360° rotating water cannon with over 35 meters range, covering road washing, dust suppression, green belt irrigation and emergency fire support.

The 4*4 drivetrain, high ground clearance and off-road tires make this truck ideal for mining sites, rural roads, mountainous areas, desert regions and tropical rainy-season conditions. Standardized bolted assembly ensures component interchangeability and easy maintenance in remote locations.

Technical Specifications

Chassis
Chassis Brand	Sinotruk HOWO
Drive Type	4*4 All-Wheel Drive
Steering	Right-Hand Drive (RHD)
Cab Type	2080mm, 1.5-row, 2 seats + 1 sleeper
Cab Equipment	A/C, central locking, air-suspension driver seat
Engine Model	Yuchai YC4E160-33
Fuel Type	Diesel
Displacement	4,260ml
Max Power	118kW (160HP)
Max Torque	550N*m
Cylinder	Inline 4 cylinders
Emission Standard	Euro 3
Transmission	8JS85TE + PTO, 8 forward + 2 reverse, Manual
Wheelbase	4,200mm
Front Axle Load	2,500kg
Rear Axle Load	9,000kg
Rear Axle Ratio	5.286
Frame	23075(6+4)mm reinforced steel
Front Suspension	1,300mm leaf spring
Rear Suspension	1,900mm leaf spring
Tire	8.25R20 off-road pattern, 6pcs + 1 spare
Fuel Tank	200L
Gross Vehicle Weight	14,000kg
Curb Weight	6,800kg
Payload	7,200kg
Overall Dimension	7,850 * 2,340 * 3,100mm
Superstructure
Tank Volume	10,000L (10m³)
Tank Material	Q235 Carbon Steel
Tank Body Thickness	4mm
End Plate Thickness	4mm
Baffle Thickness	4mm
Tank Shape	Cylindrical (elliptical cross-section)
Manhole	DN450, with cover
Anti-surge Baffles	Internal wave baffles
Pump Brand	Weilong
Pump Model	80QZB-60/90N
Pump Type	Self-priming centrifugal
Max Flow Rate	60m³/h
Max Head	90m
Self-priming Height	6.5m
PTO	Integrated with 8JS85TE transmission, cab-controlled
Driveshaft	Heavy-duty, PTO to pump
Front Flush	Duckbill nozzle, road washing, wide flat spray
Rear Spray	Road watering behind truck, even coverage
Side Sprinkler (L+R)	Green belt irrigation, width >14m
Water Cannon	Rear platform, 360° rotation, range >35m, column/mist adjustable
Ball Valves	SS304 large-diameter, anti-collision gaskets
Pipe Joints	Cast aluminum (elbow tee, flange tee, pump inlet/outlet)
Suction Strainer	Removable filter at inlet
Fire Coupling Valve	Standard fire hose connection
Rear Platform	Non-slip steel grating with safety guardrail
Access Ladder	Rear-mounted, anti-slip rungs
Cannon Storage Box	Iron box for cannon protection
Music Horn	Audible warning during operation
Standard Accessories	2* water hoses, spare tire, tool kit

Applications

Municipal road watering and street flushing
Construction site and mining dust suppression
Green belt, plantation and farmland irrigation
Emergency water transport and drought relief
Fire-fighting auxiliary with 360° water cannon
Disinfection spraying (with optional chemical dosing tray)

Key Advantages

All-wheel drive – operates on mud, sand, gravel and mountain roads where 4*2 trucks get stuck
10m³ large capacity – fewer refills, longer working cycles
Proven Yuchai engine – widely serviced across Africa, Middle East and Central Asia
Weilong pump – 60m³/h flow, self-priming from rivers and wells
Standardized bolted construction – parts are interchangeable, field-repairable
Euro 3 emission – no DPF/SCR after-treatment, lower maintenance cost
