Sinotruk HOWO 8x4 35.5m³ High-Capacity LPG Bobtail Truck with WEICHAI 365-400HP Engine and Q345R Steel Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk HOWO 8x4 35.5m³ High-Capacity LPG Bobtail Truck with WEICHAI 365-400HP Engine and Q345R Steel Tank

Detailed Product Description
Wheelbase: 1,950 + 4,600 + 1,400 Mm GVW: 31,000 Kg
Payload: Up To 19,720 Kg Engine Power: WEICHAI 365-400 HP
Transmission: 10/12-speed Manual Tires: 12R22.5 (12 + 1 Spare)
Tank Capacity: 35.5 M³ (35,500 L) Tank Material: Q345R Steel, 12mm
Design Pressure: 1.61 MPa Hose Length: 15m
Highlight:

35.5m³ High-Capacity LPG Bobtail Truck

,

WEICHAI 365-400HP Engine Propane Delivery Vehicle

,

Q345R Steel Tank LPG Gas Tanker Truck

Sinotruk HOWO 8x4 35.5m³ LPG Bobtail Truck – High-Capacity Propane Delivery Vehicle
Product Overview

The Sinotruk HOWO 8x4 LPG Bobtail Truck is a professional-grade high-capacity gas delivery vehicle designed for bulk LPG transportation, gas station supply, industrial gas distribution, and large-scale propane logistics. Built on the proven HOWO 8x4 heavy-duty chassis with HW76 cab (LHD/RHD with A/C and sleeper), this vehicle features exceptional performance and reliability for demanding commercial applications.

Key Features
  • Sinotruk HOWO 8x4 Chassis: 1,950+4,600+1,400mm wheelbase, HW76 cab with sleeper, LHD/RHD, A/C. GVW 31,000kg, payload up to 19,720kg. 12R22.5 tires (12+1 spare)
  • WEICHAI 365-400HP Engine: Euro II/III compliant with 10/12-speed manual transmission
  • 35.5m³ Q345R LPG Tank: 35,500L capacity, 12mm body/14mm end plates with design pressure of 1.61MPa
  • Comprehensive Safety Systems: Safety valves, emergency shut-off valves, level gauge, pressure gauge, anti-static protection

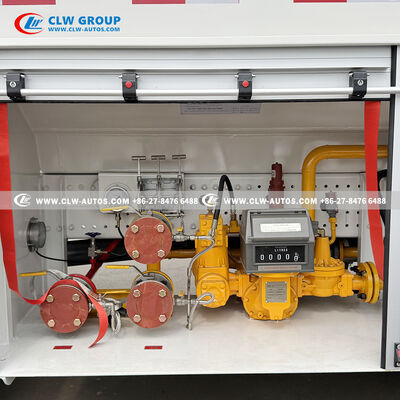

  • Professional Equipment: LPG pump, flow meter, 15m hose with nozzle for efficient operations
Applications
  • Bulk LPG distribution to gas stations and industrial users
  • Propane transport from terminals to storage facilities
  • Cooking gas delivery to retail distributors
  • Industrial gas supply for factories and processing plants
Technical Specifications
Specification Details
Chassis Sinotruk HOWO 8x4 (LHD/RHD)
Wheelbase 1,950 + 4,600 + 1,400 mm
GVW / Payload 31,000 kg / up to 19,720 kg
Engine WEICHAI 365-400 HP
Transmission 10/12-speed manual
Tires 12R22.5 (12 + 1 spare)
Tank Capacity 35.5 m³ (35,500 L)
Tank Material Q345R steel, 12mm
Design Pressure 1.61 MPa
Safety Features Safety valves, emergency shut-off, level gauge, pressure gauge, anti-static
Equipment LPG pump, flow meter, 15m hose
Applications LPG distribution, propane transport, cooking gas delivery
Product Images

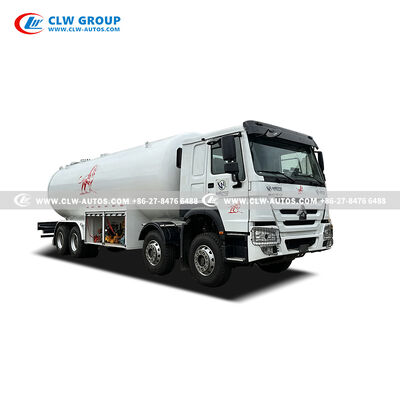

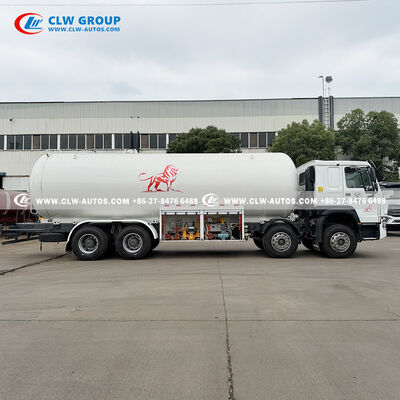

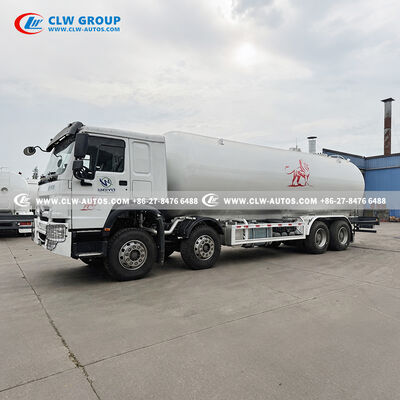

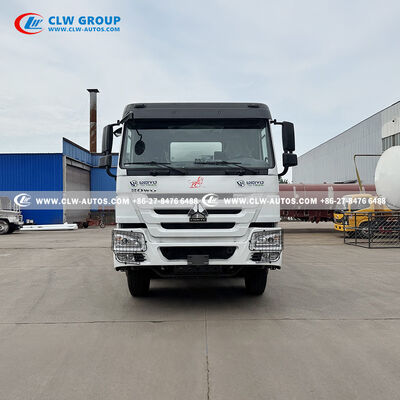

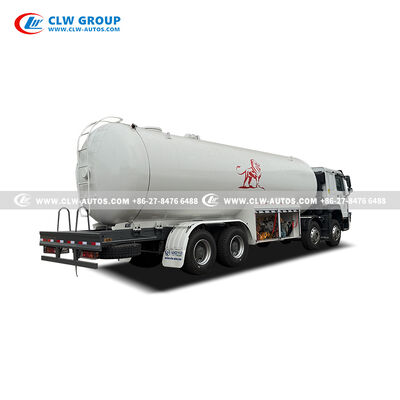

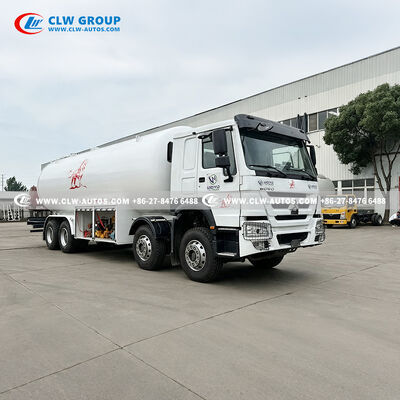

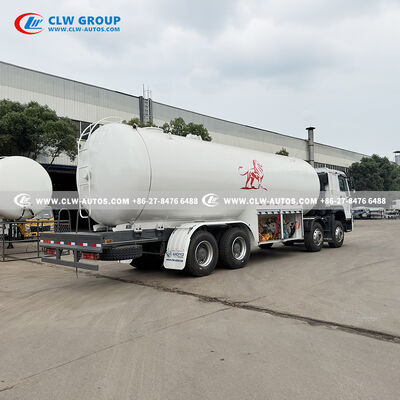

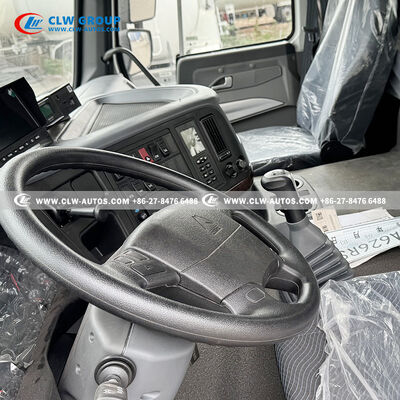

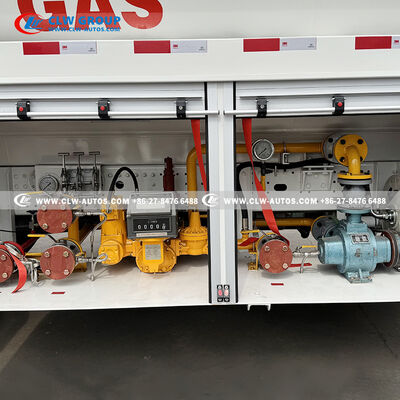

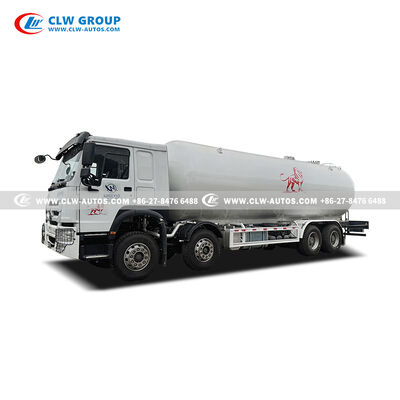

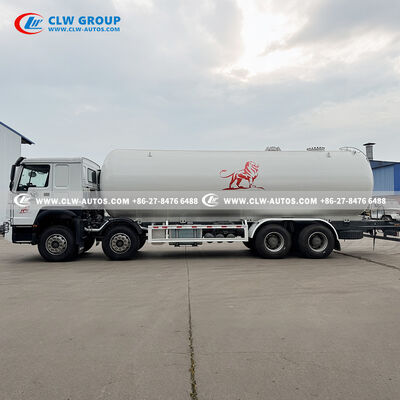

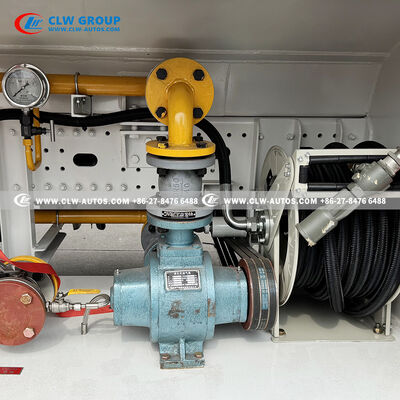

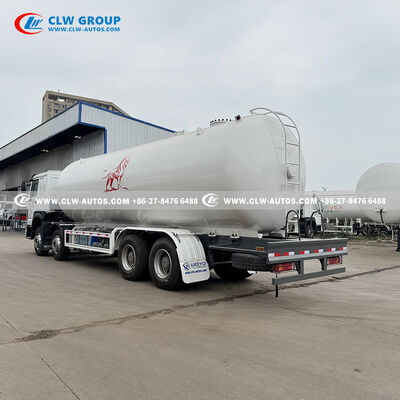

Sinotruk HOWO 8x4 LPG Bobtail Truck front view Sinotruk HOWO 8x4 LPG Bobtail Truck side view Sinotruk HOWO 8x4 LPG Bobtail Truck rear view Sinotruk HOWO 8x4 LPG Bobtail Truck tank detail Sinotruk HOWO 8x4 LPG Bobtail Truck chassis view Sinotruk HOWO 8x4 LPG Bobtail Truck interior cabin Sinotruk HOWO 8x4 LPG Bobtail Truck engine compartment Sinotruk HOWO 8x4 LPG Bobtail Truck safety equipment Sinotruk HOWO 8x4 LPG Bobtail Truck loading system Sinotruk HOWO 8x4 LPG Bobtail Truck wheel and tire detail Sinotruk HOWO 8x4 LPG Bobtail Truck operational view Sinotruk HOWO 8x4 LPG Bobtail Truck tank construction Sinotruk HOWO 8x4 LPG Bobtail Truck valve system Sinotruk HOWO 8x4 LPG Bobtail Truck instrumentation Sinotruk HOWO 8x4 LPG Bobtail Truck complete vehicle
