SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck

Product Details:

Place of Origin: SUIZHOU. HUBEI, CHINA.
Brand Name: CLW
Certification: CCC, ISO9001, BV, SGS
Model Number: CLW20220117

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiated
Delivery Time: 40 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 units per Month.
Detailed Product Description
Product Name: SHACMAN 10X6 Wrecker Recovery Towing Truck Engine Horse Power: 340HP, Weichai Diesel Engine
Truck Brand: Dongfeng HOWO, SHACMAN, FAW, FOTON, JAC Etc Drive Model: 10x6, 16 Wheels, 16 Wheeler,
Drive Type: Right Hand Drive, Or Left Hand Drive. Wrecker Type: 360 Degree Rotation. 360 Degree Rotated As Option
Equipment: Hydraulic Pump, Oil Cylinder Main Parts: Boom, Hoisting, Winches, Landing Leg
Loading Capacity: 12tons 16 Tons, 20 Tons, Etc Lifting Capacity: 20Tons, 25Tons, 30Tons, 20 Tons, 25 Tons, 30 Tons
High Light:

16 Wheeler Wrecker Tow Truck

,

SHACMAN 10x6 Wrecker Tow Truck

,

SHACMAN 30T Recovery Tow Truck

SHACMAN 10x6 16 Wheeler 30Tons tow lift joint special wrecker Bus towing Road Recovery Rescue Vehicle Wrecker Truck



Product Description:

A tow truck has multiple functions such as lifting, pulled and lift traction. It is mainly used for road vehicle breakdown, city peccancy vehicles and emergency rescue etc.

Feature

-- Powerful SHACMAN 10X6 16 wheeler truck chassis;

-- 360 ° rotation rotator towing truck as optional;

-- Italy hydro control control valve and balance valve;

-- Wuxi oil hydraulic pneumatic equipment co ltd;

-- One-step modeling compartment plate by germany 3P2A punching machine;

-- Adopting American wrecker design and manufacturing technology.

-- Key components using the finite element stress analysis (CAE technology)

-- Adopting high quality high-strength steel for important components

-- Hydraulic technology adopts two filtration systems to ensure hydraulic clean.

-- The key hydraulic lines seals imported from Germany.

-- All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting),

increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.

-- Equipped with various fork lifts (including leaf spring forks).

-- High and low fork combined with various fork lifts.

-- Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.

-- Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.

-- Boom with 360 degree continuous rotation.

-- Equipped with trailer towing disk, remote control is optional.



Specification for SHACMAN 10x6 16 Wheeler 30Tons tow lift joint special wrecker Bus towing Road

Recovery Rescue Vehicle Wrecker Truck

Overview
Name 10X6 Shacman 30-50 Tons Wrecker
Dimension(LxWxH) 9809X2496X3115(mm)
Total Mass 40080 Kg
Rated Payload 30000 Kg
Kerb Weight 10080 Kg
Passenger 3
Approach/Departure Angle 19/22
The Parameters of Chassis
Manufacture/Model Shacman
Driving Type 10*6 left hand drive/right hand drive
Wheel Base 1800+3000+1350 mm
Gearbox Eleven speed lever with ten speed forward and one reverse, manual
Front/Rear Track 2022,2041,2022,2041/1830(mm)
Tyre 11.00-20
The Number of Tyre 12+1(spare tyre)
Front/Rear Suspension 1500/750(mm)
Leaf Spring Number 14/13/14/13/12
The Paremeters of Engine
Manufacturer/Model Weicai
Rated Power 370hp/273kw
Fuel Type Diesel oil
Displacement/Capacity 9726ml
Emission Standard Euro3
Cylinder Straight/6/intercooling
Max. torque 1500N.m
Velocity 2200rpm

More pictures for SHACMAN 10x6 16 Wheeler 30Tons tow lift joint special wrecker Bus towing Road Recovery
Rescue Vehicle Wrecker Truck

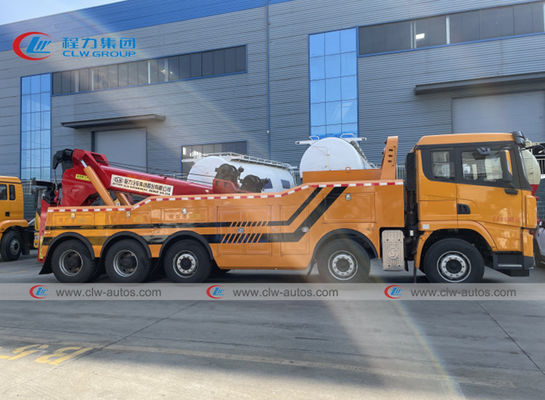

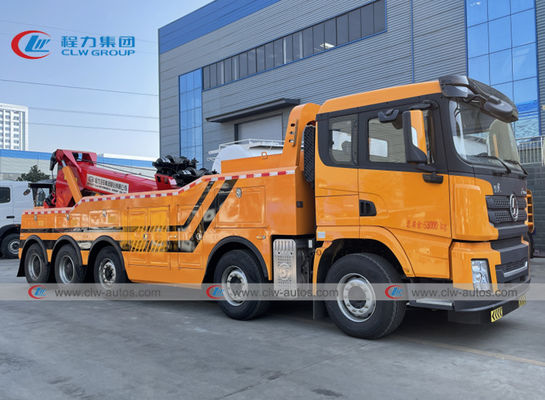

SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 0
SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 1
SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 2
SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 3
SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 4
SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 5
SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 6SHACMAN 10x6 16 Wheeler 30T Road Recovery Wrecker Tow Truck 7





Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
