| Dimension: | 13000*3000*1250mm | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons. 20Tons | Nos. Of Alxe: | 3 Axle, 4 Axle, 5 Axle |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Length: | 13 Meters, Extendable To 16 Meters |
| Landing Gear: | JOST Brand | Loading Capacity: | 60tons, 80tons, 60 Tons, 80 Tons. |
| Function: | Construction Machinery, Timber Log Transport | Product Name: | Lowbed, Low Bed , Low Loader, Lowboy Trailer |
| Load: | 50 60 80 100 Tons | Other Parts: | Drop Deck Trailer, With Hydraulic Power Gooseneck |
| High Light: | Lowboy Drop Deck Semi Trailer,Lowbed Drop Deck Semi Trailer,4 Axle Lowboy Semi Trailer |
||

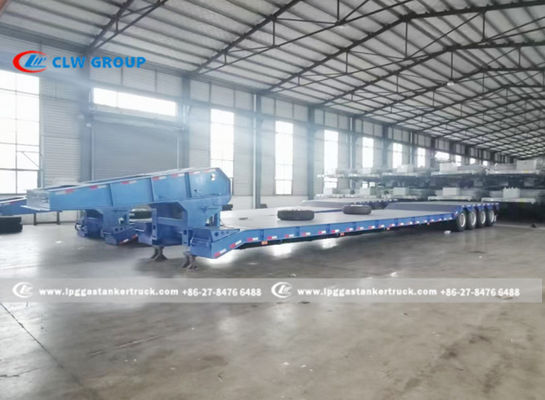

4 Axle 60 Tons Lowbed Lowboy Drop Deck Semi Trailer With Hydraulic Power Gooseneck
The Application and the Technical Highlights:
--- The low bed semitrailers are mainly suitable for the MID/Long distance transportation of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.
--- The low bed semitrailer can bed divide into flat bed low bed trailer, concave low bed trailer, tyres appear low bed trailer, tyres covered low bed trailer. The concave low bed trailer structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm.-Low platform makes the stable transportation.
--- The chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
--- High Quality Body and high-tensile steel for heavy loading capacity
--- BPW, FUWA or Certificated Chinese Axles
--- ABS brake system
--- WABCO Vehicle Control System
--- JOST ,FUWA or Chinese brand parking leg and king pin
--- Air and Mechanical Suspension
--- Strengthen the Chassis Instructure
Parameters for 4 axle Tri-axle 50Tons 60Tons low bed Loader Lowbed Semi Trailer
with Hydraulic power gooseneck:
| Product Specification | ||||
| 1 | Type | Semitrailer | ||
| 2 | Product Name | Low Bed Semitrailer | ||
| 3 | Dimension | 13000x3000x1600mm | ||
| 4 | Tare Weight | 9240kg | ||
| 5 | Payload | 43t | ||
| 6 |
Running System | Axles | FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles | |
| Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam (we can choose the Air suspension depend on customer requirement) |
|||
| Tires | Linglong, Double Coin, Triangle brand 11.00R20/8.25R20/12.00R22.5, 12unit | |||
| 7 | Ladder | Manually operated or Hydraulic type | ||
| 8 | Braking System | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; KORMEE ABS braking system |
||
| 9 | Frame | Main Beam | Q345B steel,Height 500, upper 16mm, lower 18mm. Mid web 10mm |
|
| Cross Beam | Mild Alloy Q235 | |||
| 10 | King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | ||
| 11 | Landing Gear | FUWA, JOST Brand Single side operation or double side operation, Static capacity 28Ton |
||
| 12 | Electrical & Paint | Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Lights & Reflectors | 24V, 7 lines | |||
| Painting | zinc-rich primer and modified urethane topcoat as customers' choices. | |||
| Accessories | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES |
|||
More pictures for 4 Axle 60 Tons Lowbed Lowboy Drop Deck Semi Trailer With Hydraulic Power Gooseneck:
Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
