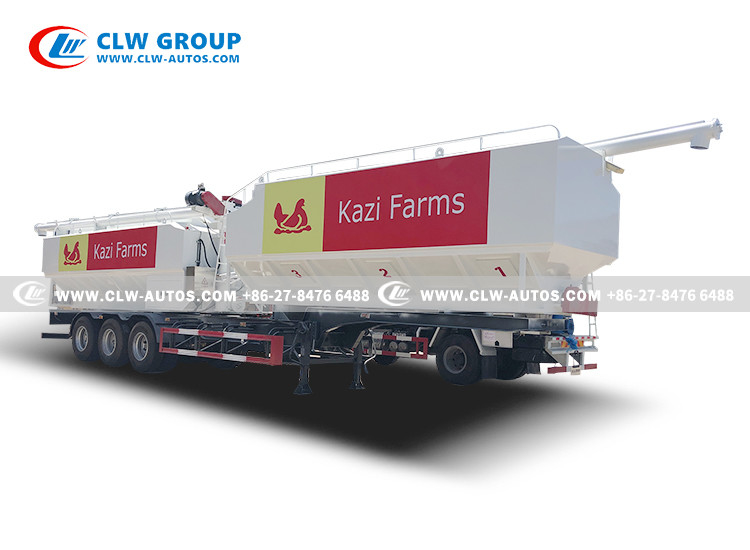

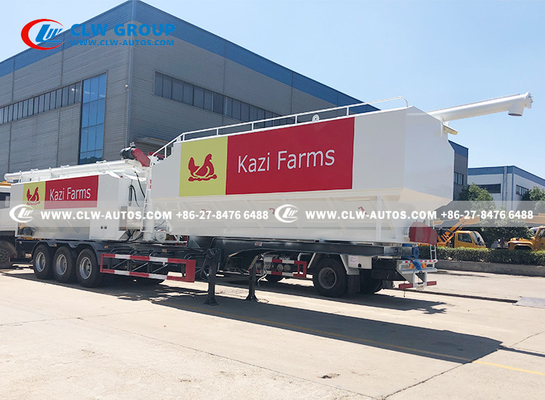

10tons Bulk Feed Truck Body Poultry Farm Chicken Duck Pig Feed Transport

Large Image : 10tons Bulk Feed Truck Body Poultry Farm Chicken Duck Pig Feed Transport

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	CCC ISO ASME
Model Number:	CLW9448

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	30 days after received advance payments
Payment Terms:	L/C,T/T, Western Union, MoneyGram,
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	ISUZU,HOWO,DONGFENG,FAW,SHACMAN Bulk Feed Truck	Material:	Carbon Steel/aluminum Alloy Bulk Feed Trailer
Loading Medium:	Bulk Feed,grain,powder And So On	Volume:	20m3,20cbm,10tons, 10 Tonne
Thickness:	4mm	Color:	Customized
Logo:	As Per Your Request	Purpose:	Chicken/duck/cow Feed Transport
Painting:	Automotive Metallic Paint
Highlight:	10tons Bulk Feed Truck , 20cbm Bulk Feed Truck

10tons Bulk Feed Truck Body Poultry Farm Chicken Duck Pig Feed Transport

Description

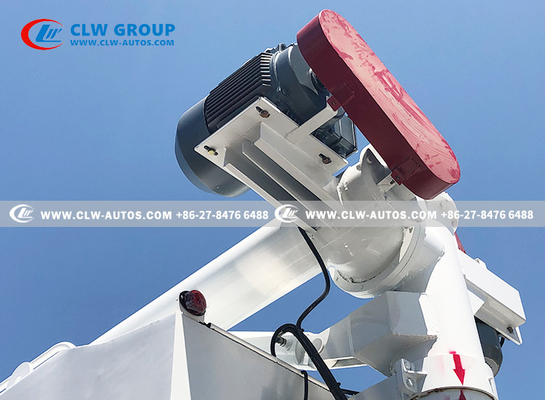

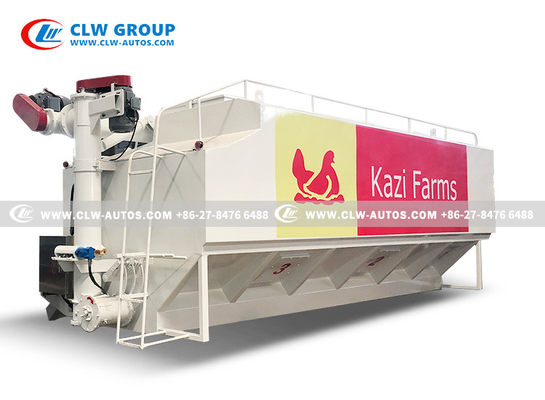

The tank body is made of 4mm high-quality carbon steel plate, and the whole vehicle has 3 screw augers, driven by 3 5.5KW motors. The top screw auger is lifted by hydraulic control and can rotate 180° left and right.

The tank body is divided into three bins, which can independently control the discharge sequence and speed of each sub bin.

Specifications

Upper Body
Item No.	Parameters
Volume Capacity	20 CBM/10Tons
Tank material	Q235A	Partitions	2
Tank thickness	4 mm	Area	3
Tank size	610024502190mm
Loading Medium	Bulk feed, grain,powder, etc.
Power Supply	Power Socket with 20 meters wire cable

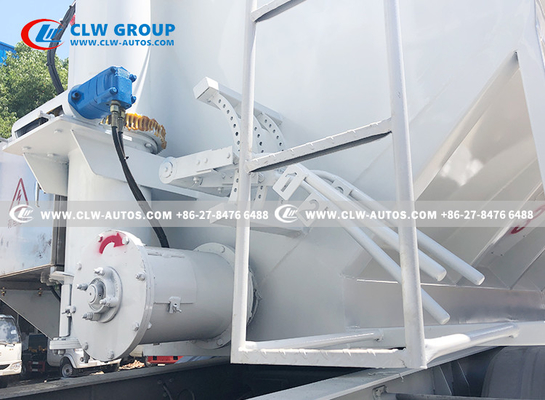

Discharging Parts	3 augers, including 1 unit horizontal auger, 1 unit vertical auger,1 unit discharge
	auger
Driving form	Electric driven
Discharging rate	600kg/min
Discharging pipe	7.2 meter
Rotary angle of	±180°
discharging system
Maximum Vertical Angel	60°
Residual rate	≤0.10
Main Parts	Mobile conveyor
	Vertical conveyor

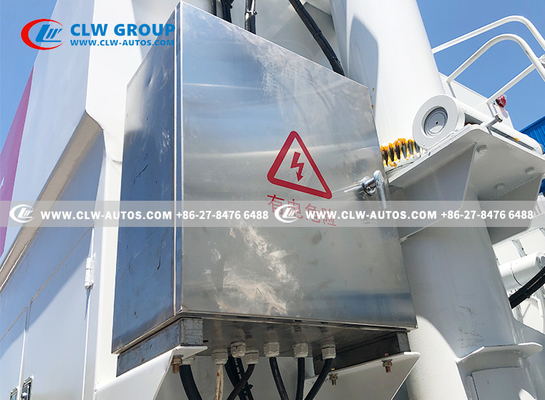

	Wire cabinets
	Conveyor maintenance port
	Horizontal conveyor
	Discharging operation handle
	Ladder
	Electric motor
	Wireless remote control
Painting and Logo	As customer’s requirement
