Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton | Capacity: | 2tons,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton |
|---|---|---|---|
| Type: | Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck | Fire Pump: | Chinese Brand |
| Fire Monitor Range: | ≥50M | Flow Rate Of Monitor: | 48L/s |
| Flow Rate Of Pump: | 60L/s | Steering: | LHD Or RHD |
| High Light: | rescue fire truck,fire service truck |
||

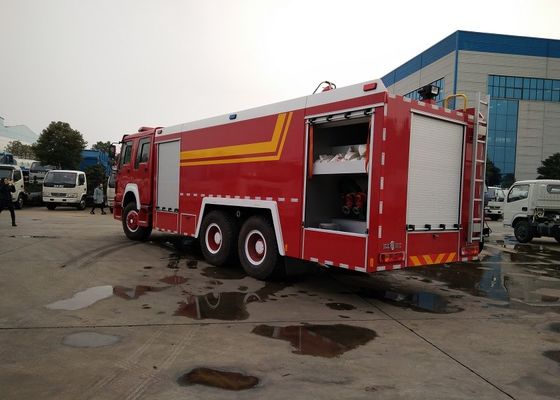

Sinotruk Howo 6X4 10-wheel 16tons Water and Foam Fire Fighting Truck
Product Description
1. HOWO 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.
Specifications of howo 6X4 fire fighting truck
| Item | Unit | Parameter | |||
| Overall dimensions | mm | 10600x2500x3550 | |||
| GVW | kg | 25000 | |||
| Curb weight | 14750 | ||||
| Water tanker | L | 10250 | |||
| Wheel base | mm | 5200+1350 | |||
| F/R track base | 2022/1830 | ||||
| Approach/departure angle | ° | 16/14 | |||
| Exhaust/hp | ml/kw | 9726/247 | |||
| Horse power | 336hp | ||||
| Max speed | km/h | 85 | |||
| Tire specification | 11R22.5,11pcs | ||||
| Engine Model | WD615.69 | Emission standard | Euro II | ||
| Cabin | left hand drive,2+4 | ||||
| Equipment |
◆ Water Tank 12000L and foam 3000L ◆Fire pump:CB10/60 flow: 60L/s diversion time≤50s (Pressure: 1.0Mpa) ◆Power takeoff. |
||||
| Item | No. | Fire engine truck | QTY | Unit | Note |
| Fire fighting equipment | 1 | Fire suction hose | 2 | piece | 4000mm×2 |
| 2 | Water filter | 1 | piece | ||
| 3 | Maifold | 1 | piece | ||
| 4 | Water collector | 1 | piece | ||
| 5 | ∈65×20m water hose | 8 | set | Normal pressure | |
| 6 | ∈80×20mwater hose | 4 | set | Normal pressure | |
| 7 | Increaser | 2 | piece | ||
| 8 | Different type coupling | 1 | piece | ||
| 9 | Fire axe | 1 | piece | ||
| 10 | Hose gaiter | 4 | piece | ||
| 11 | Belt bridge | 1 | set | ||
| 12 | Rope hose tool | 4 | piece | ||
| 13 | Up ground hydrant wrench | 1 | piece | ||
| 14 | Underground hydrant wrench | 1 | piece | ||
| 15 | Suction wrench | 2 | piece | ||
| 16 | Fire-fighting gun | 2 | / | / | |
| 17 | Fire bucket | 1 | piece | ||
| 18 | Air-foam gun | 1 | / | ||
| Forcible entry life preserver | 1 | Fire extinguisher | 1 | piece | |
| 2 | Shovel | 1 | piece | ||
| 3 | Hatchet for firefighters | 1 | piece | ||
| 4 | T-shaped pick | 1 | piece | ||
| 5 | Crowbar | 1 | piece |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
